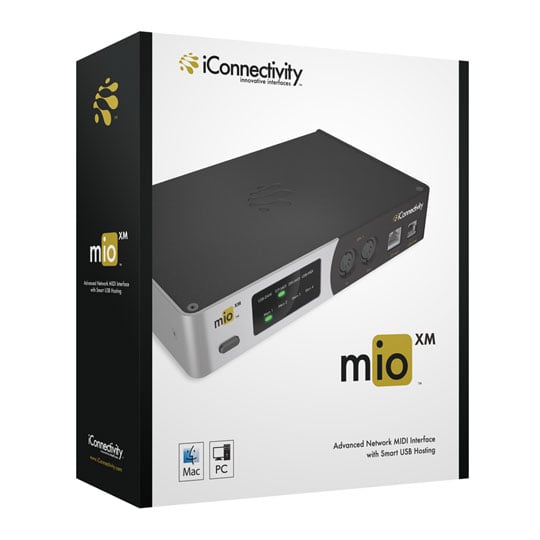

iConnectivity mioXM MIDI Interface

iConnectivity mioXM Advanced MIDI Interface, 4 in / 4 out 5-pin DIN-MIDI Ports, 4x USB-MIDI Host Ports

Thumbnail 1 : iConnectivity mioXM MIDI Interface Thumbnail 2 : iConnectivity mioXM MIDI Interface Thumbnail 3 : iConnectivity mioXM MIDI Interface
Scan code: LN102966 Manufacturer code: mioXM
Order now and receive it by Thursday, 29th February
Get it Thursday, 29 FebIn stock
From £17.67 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £17.67
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £195.00
Total inc. interest: £212.01
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th Feb to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

iConnectivity mioXM MIDI Interface

More connectivity than you can shake a stick at
With mioXM™ it’s never been easier to get all of your MIDI gear talking to each other. Harness the power of our advanced computer and network connectivity and experience why mioXM redefines what a MIDI interface can and should do.
Connect all your MIDI devices (USB-MIDI, DIN-MIDI, RTP/Network-MIDI) and let this rugged, versatile interface put you in control of your MIDI devices and workflow.
On stage or in the studio, RTP/Network-MIDI capability means you are no longer constrained by cable length or limited USB ports. Stack multiple interfaces and computers on a network for ultimate scalability and flexibility.
With mioXM, you’re able to streamline and expand your MIDI setup, and do it faster, better, and in creative and exciting new ways.

What makes mioXM™ unique? The iConnectivity difference
Network connectivity means MIDI wherever you need it. Regular USB connectivity limits you to keeping your interface within 15ft of your computer. Network / Ethernet connectivity gives you up to 330ft / 100m connection between you and your interface.
Drop an interface in every room of your studio, or place an interface virtually anywhere in a venue.
RTP/Network-MIDI is not bound by some of the same restrictions as USB-MIDI.
Our unique network technology is as easy to use as USB! Enjoy your new-found MIDI power without extra headaches.
Use your 12 network MIDI ports anyway you want. Connect each of the 12 RTP-MIDI sessions to any combination of physical or virtual I/O ports. Almost any combination is possible.

Configuring mioXM
Introducing a new version of our Auracle control software: taking the simplicity of workflow that the original Auracle introduced but now with the added deep configuration functionality that we’ve become known for. All the deep configuration options you asked for: MIDI merging, filtering, remapping, and deep routing are all there and super easy to use.

Presets onboard
Need to configure your MIDI setup in multiple ways? No problem!
Store and recall up to 4 presets directly on the interface, without even needing a computer!
Easily recall unique MIDI routing, filter and merging setups to preset scenes, all from the front of mioXM.


• 4 in x 4 out 5-pin DIN-MIDI ports
• 4x USB-MIDI Host ports support multiple USB-MIDI CLASS COMPLIANT devices
• Ethernet RTP-MIDI Network port - 12 virtual network ports can easily be assigned to onboard DIN and USB ports as well as any other connected computing devices. These make all MIDI devices accessible to Mac, PC, and mobile computing devices via a single cable.
• Connect multiple computers via expandable virtual network ports
• USB Computer port supporting Mac & Windows connectivity
• Plug and Play - no drivers required thanks to class compliant connectivity
• Capacitive touch control panel
• Up to four user-definable presets can be stored and recalled from mioXM’s control panel
• iConnectivity’s Auracle 2.0™ configuration software (downloadable for Mac & Windows) makes it simple to create and save filtering/routing/merging presets
• Connect iOS devices via CCK to mioXM’s USB device port, Wi-Fi (using 3rd party Wi-Fi ethernet hub), or wired ethernet connections

What's in the box
1 x mioXM
1 x USB cable
1x Ethernet cable
1 x mioXM 12V 36W Power Power Supply with interchangeable blades
Product Type z6
PC Interface USB
Keys 0
Connectivity (Input)
  • 4 x MIDI
  • 4 x USB MIDI
Connectivity (Output) 4 x MIDI
Dimensions (mm)
Misc. Notes
Additional Information
Scan Code LN102966
Model Number mioXM
GTIN 835727000312
