HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
New
HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
Scan code: LN156897 Manufacturer code: HVN-CA-HS420-08
£269.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 2 : HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 3 : HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 4 : HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
New

HAVN HS420 VGPU Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis

HAVN HS420 VGPU, Black, Mid Tower PC Case w/ Tempered Glass Window, 11 Fan Mounts, E-ATX / ATX / MicroATX / Mini-ITX
MORE INFO
MORE INFO

Scan code: LN156897 Manufacturer code: HVN-CA-HS420-08
£269.99
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £90.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

HS 420 VGPU Mid Tower PC Case from HAVN

HS 420 Mid Tower PC Case from HAVN

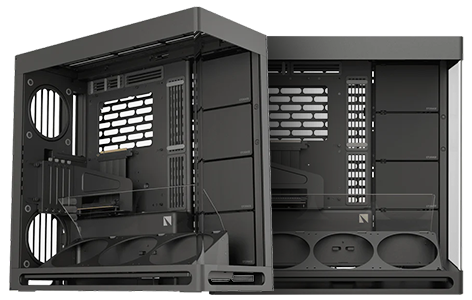

Engineered Excellence in Design The HS 420 VGPU mid-tower case by HAVN blends elegant design with innovative functionality. It features a dual-chamber hybrid structure that optimises GPU airflow, enhanced by a VGPU Mount Kit and a PCI Express® 5.0 riser cable. The case showcases components behind a heat-formed panoramic UniSheet glass panel, minimising distortion. With support for up to eleven 140mm fans and 420mm radiators, plus the SimpliCable routing system for clean cable management, it offers superior cooling and a pristine gaming setup environment.

Please note: Images are used for illustration purposes. Refer to the top image for the correct colour.

HAVN Hybrid Structure for Optimal GPU Cooling

Dual-chamber design

Dual-chamber designThe HS 420 VGPU has a dual-chamber design with balanced airflow and a traditional case size ratio, channeling cool air from the bottom intake directly onto the centrally positioned GPU.

GPU Centric Design

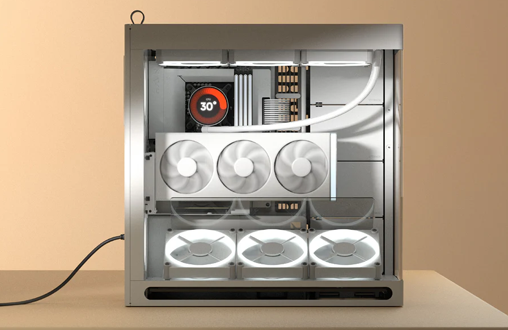

GPU Centric DesignThe HAVN Hybrid Structure places the GPU front and center, fully showcased behind the panoramic Unisheet glass. This design not only emphasizes your key components but also enhances GPU airflow for optimal performance.

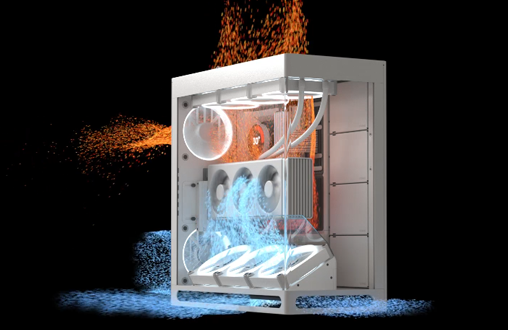

Mirrored Airflow

Mirrored AirflowAn additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card, perfectly balancing intake and exhaust. This ensures peak performance and helps maintain a cleaner, dust-free system.

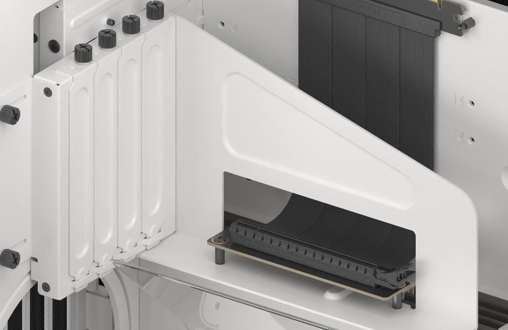

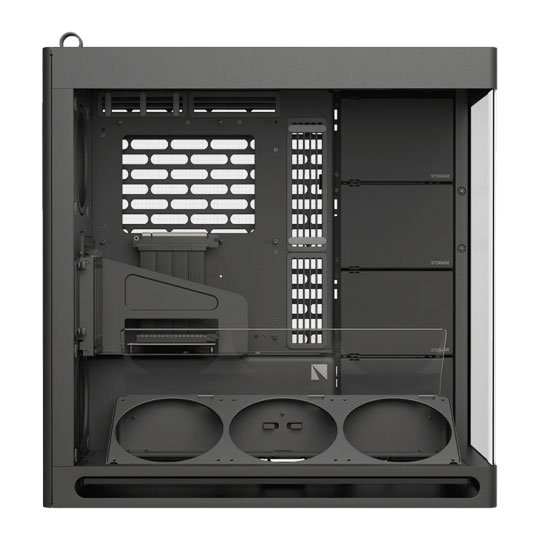

Adjustable VGPU Bracket

Adjustable VGPU BracketWith different GPU thicknesses, the vertical GPU bracket can be adjusted horizontally to optimise the GPU's distance to the glass air guide.

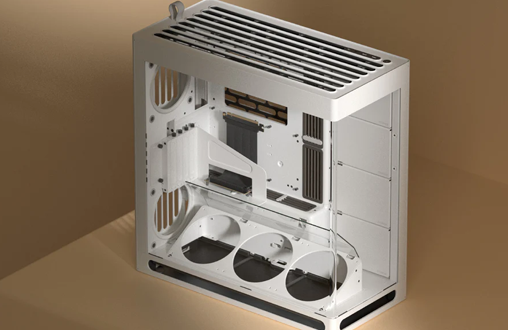

Compatibility

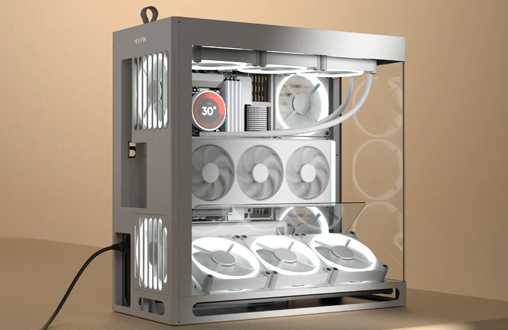

Cooling Power & CompatibilityThe HS 420 VGPU accommodates up to eleven 140mm fans and supports 420mm radiators on both the top and side.

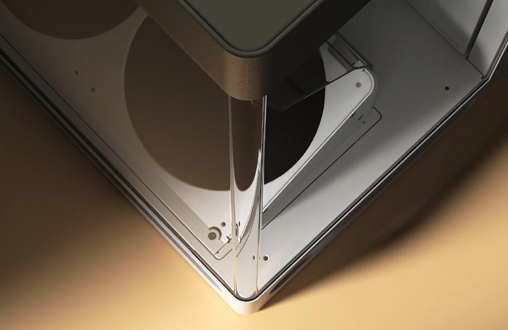

UniSheet heat-formed Glass Panel for Panoramic View

UniSheet heat-formed Glass Panel for Panoramic ViewHAVN have pushed production boundaries to achieve the smallest possible curve radius, minimising visual distortion and offering a clear, uninterrupted view of your case's interior.

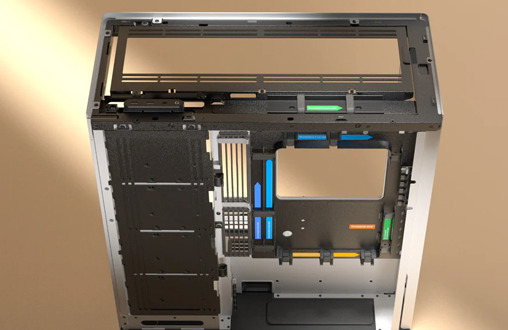

Unique SimpliCable Routing System

Unique SimpliCable Routing SystemThe SimpliCable routing system and fan hub feature top-to-bottom grooved guides, making cable management effortlessly clean and giving your setup a pristine, organised appearance.

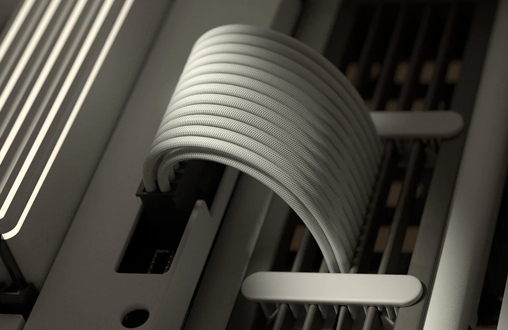

Cable Management Re-Invented

Cable Management Re-InventedClever silicon pass-throughs with stabilising clips allow for precision cable management.

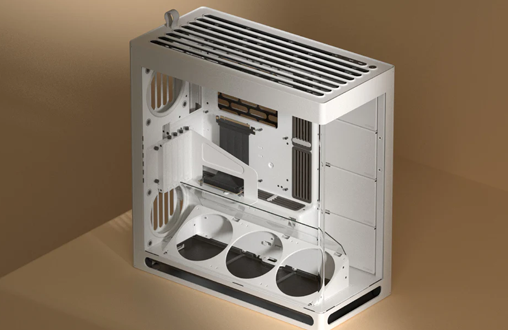

Lightning-fast Riser Cable Included

Lightning-fast Riser Cable IncludedThe VGPU Mount Kit and PCI Express® 5.0 X16 riser cable allow you to showcase your hardware without compromising on performance.

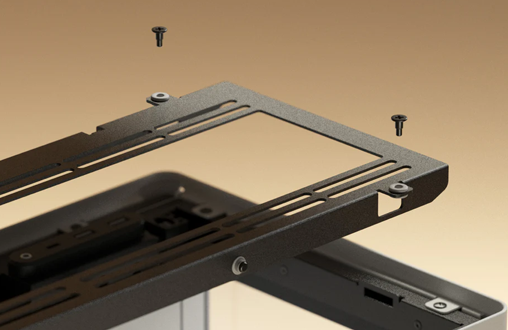

Vibration Isolation

Vibration IsolationEvery fan bracket is equipped with flexible rubber isolators to separate the bracket from the chassis, preventing resonance and ensuring a quieter operation.

Specifications
Core Chassis Specifications
Case Edition HS 420 VGPU
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (277mm Wide Max.)
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power On/Off button
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 1 x 3.5" / 2x 2.5" Internal
  • 4 x 3.5" / 8x 2.5" Internal
Standard Expansion Slots 6
Vertical Expansion Slots 4 (With mount)
Fans & Filters
Fan Bays 11 x 120mm / 11x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 280/360/420mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 280/360/420mm
Clearances
Max CPU Cooler Height Up to 185 mm
Max GPU Card Length 470 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SGCC / ABS Plastic / Tempered Glass
Dimensions 259.5 x 547 x 541 (WxHxD mm)
Weight 19 kg (Approx)
Package Type
Please Note Please see key features for full compatibility options
Additional Information
Scan Code LN156897
Model Number HVN-CA-HS420-08
GTIN 4251442512163
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
1 months
