HAVN HS420 White Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
HAVN HS420, White, Mid Tower PC Case w/ Tempered Glass Window, 11 Fan Mounts, E-ATX / ATX / MicroATX / Mini-ITX
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£66.66
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Havn HS 420 Dual Chamber Chassis

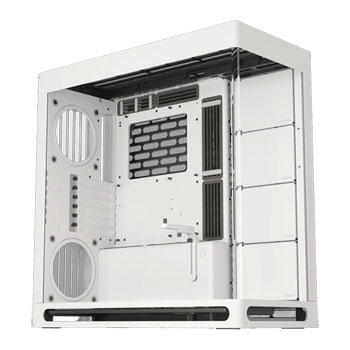

The HAVN HS 420 chassis is a mid-tower case that seamlessly blends functional beauty with user-centric innovation. Born from meticulous research, development and testing. It features a hybrid dual-chamber structure designed to optimise airflow by directing cool air to the centrally positioned GPU, ensuring peak thermal performance for demanding builds. With support for up to E-ATX motherboards and GPUs up to 480mm long, this case is capable of supporting high-end components while maintaining a compact footprint. The panoramic UniSheet tempered glass panels offer a stunning view of your hardware, complemented by custom ventilation panels and built-in filters for dust-free operation. It supports versatile cooling options, including up to eleven 140mm fans or radiators as large as 420mm on the top, side, and bottom, with vibration-dampening rubber brackets for enhanced noise reduction. Storage is equally impressive, offering up to 5x 3.5" HDDs or 10x 2.5" SSDs across its right fan mount and cable management tray. Intuitive features like the SimpliCable routing system and silicon pass-throughs make cable management effortless, ensuring a clean and professional setup. Whether you're building for gaming or productivity, the HAVN HS 420 delivers exceptional customisation, performance, and style.
HAVN Hybrid Structure for Optimal GPU Cooling
Dual-chamber design with balanced airflow and a traditional case size ratio, designed to direct cool air from the bottom intake onto the centrally positioned GPU.?
GPU Centric Design
The GPU takes center stage within the HAVN Hybrid Structure, putting it on full display behind the panoramic UniSheet glass. This design optimizes GPU airflow and highlights your most important components.
Mirrored Airflow
An additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card, perfectly balancing intake and exhaust. This ensures peak performance and helps maintain a cleaner, dust-free system.
Cooling Power & Compatibility
HS 420 fits a total of eleven 140mm fans while supporting up to 420mm radiators on its top, right, and bottom.
UniSheet heat-formed Glass Panel for Panoramic Views
We challenged the limits of production to engineer the smallest possible curve radius and minimize visual distortion, providing the user with a clear and continuous view of the inside of the case.?
Unique SimpliCable Routing System
Uniquely user-friendly SimpliCable routing system and fan hub - top-to-bottom grooved guides cleanly route your cables for a pristine overall appearance.
Cable Management Re-Invented
Clever silicon pass-throughs with stabilizing clips allow for precision cable management.
Vibration Isolation
All of the fan brackets have flexible rubber to isolate the bracket from the chassis and avoid resonance build up.
GPU Support
The 3-way adjustable structural support bracket is designed to handle a wide range of graphics cards of all shapes and sizes while maintaining a neat and smoothly integrated appearance.
Features
• Hybrid dual-chamber design for optimized airflow and superior GPU cooling.
• Panoramic UniSheet glass panel for a clear view of internal components.
• Supports up to 11 x 140mm fans and 420mm radiators on top, side, and bottom.
• Storage capacity for up to 5x 3.5" HDDs or 10x 2.5" SSDs.
• Storage Bay Included: 4x
• Includes a VESA mounting bracket for portable displays.
• Accommodates a mix of storage, fans, radiators, and displays for customization.
• SimpliCable routing system and silicon pass-throughs for clean cable management.
• Supports up to E-ATX motherboards and GPUs up to 480mm long.
• Maximum CPU cooler height of 185mm.
• Constructed from ABS, Nylon, Zinc alloy, Tempered Glass, and SGCC (Steel).
• Vibration-dampening rubber on fan brackets for noise reduction.
Cooling Compatibility
Liquid Cooling
• Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
• Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
• Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)
Air Cooling
Top: 3 x 120 / 3 x 140 mm
Right: 3 x 120 / 3 x 140 mm
Bottom: 3 x 120 / 3 x 140 mm
Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
Additional Notes:
• Graphics Card Clearance: Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.
• RAM Clearance: If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm
• Power Supply Support: Length: Up to 220mm (Clearance - 290mm)
