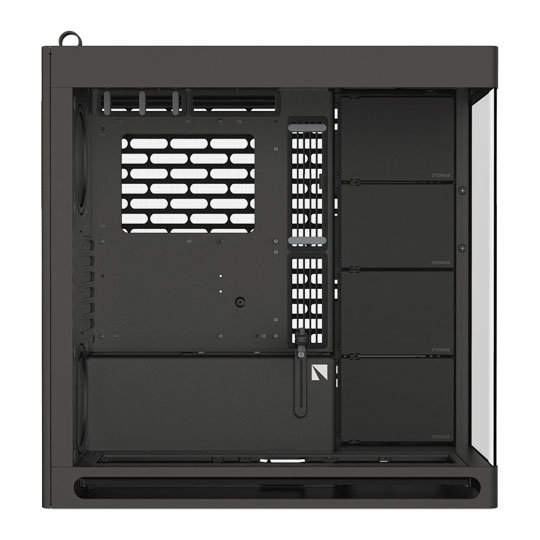

HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
New
HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
Scan code: LN156895 Manufacturer code: HVN-CA-HS420-06
£199.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 2 : HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 3 : HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
  • Thumbnail 4 : HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis
New

HAVN HS420 Black Hybrid Dual Chamber Mid Tower Tempered Glass Chassis

HAVN HS420, Black, Mid Tower PC Case w/ Tempered Glass Window, 11 Fan Mounts, E-ATX / ATX / MicroATX / Mini-ITX
MORE INFO
MORE INFO

Scan code: LN156895 Manufacturer code: HVN-CA-HS420-06
£199.99
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £66.66

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

HS 420 Mid Tower PC Case from HAVN

HS 420 Mid Tower PC Case from HAVN

Engineered Excellence in Design The HS 420 combines functional aesthetics with innovation through extensive prototyping and rigorous testing by HAVN and Pro Gamers Group engineers. Its hybrid dual-chamber design ensures superior GPU airflow while retaining mid-tower proportions. Engineered to accommodate high-performance fans and large radiators, it delivers exceptional thermal management for demanding workloads.

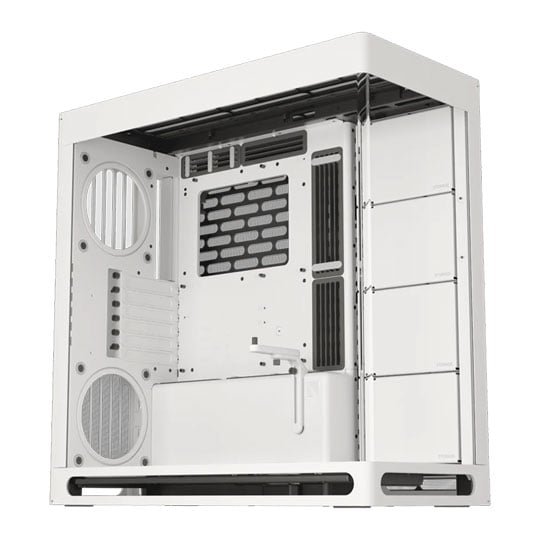

Please note: Images are used for illustration purposes. Refer to the top image for the correct colour.

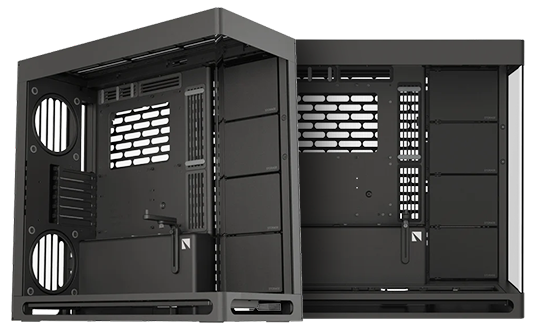

HAVN Hybrid Structure for Optimal GPU Cooling

Dual-chamber design

Dual-chamber designWith balanced airflow and a traditional case size ratio, this case is designed to direct cool air from the bottom intake onto the centrally positioned GPU.

GPU Centric Design

GPU Centric DesignThe GPU takes center stage within the HAVN Hybrid Structure, putting it on full display behind the panoramic UniSheet glass. This design optimises GPU airflow and highlights your most important components.

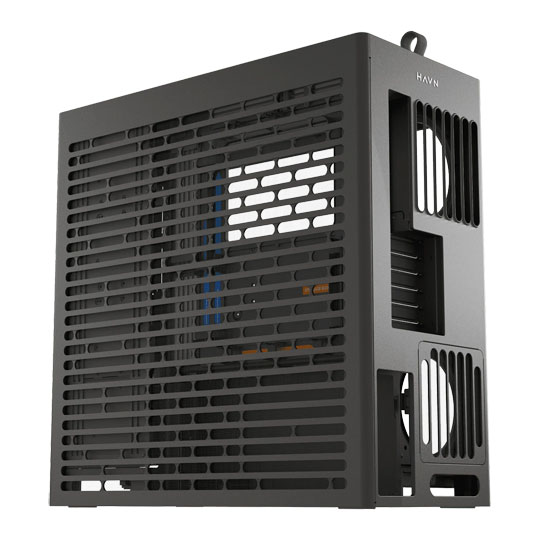

Mirrored Airflow

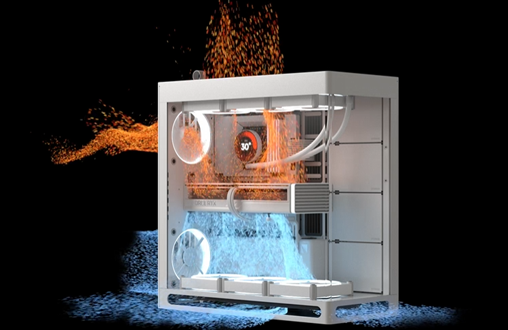

Mirrored AirflowAn additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card, perfectly balancing intake and exhaust. This ensures peak performance and helps maintain a cleaner, dust-free system.

GPU Centric Design

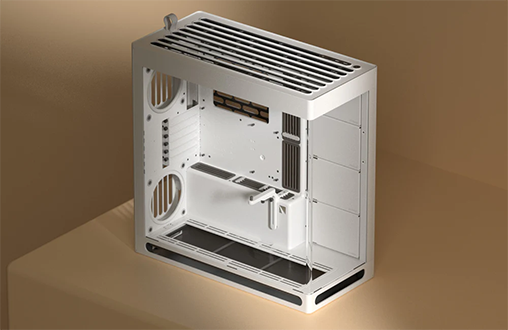

Cooling Power & CompatibilityHS 420 fits a total of eleven 140mm fans while supporting up to 420mm radiators on its top, right, and bottom.

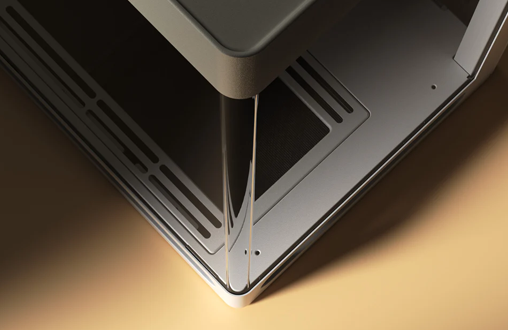

UniSheet heat-formed Glass Panel for Panoramic View

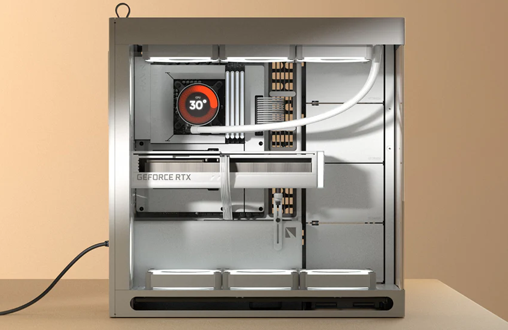

UniSheet heat-formed Glass Panel for Panoramic ViewWe challenged the limits of production to engineer the smallest possible curve radius and minimise visual distortion, providing the user with a clear and continuous view of the inside of the case.​

Unique SimpliCable Routing System

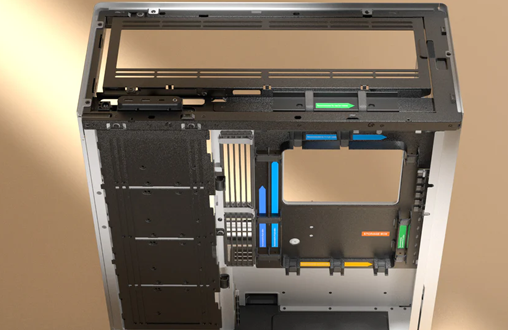

Unique SimpliCable Routing SystemUniquely user-friendly SimpliCable routing system and fan hub - top-to-bottom grooved guides cleanly route your cables for a pristine overall appearance.

Cable Management Re-Invented

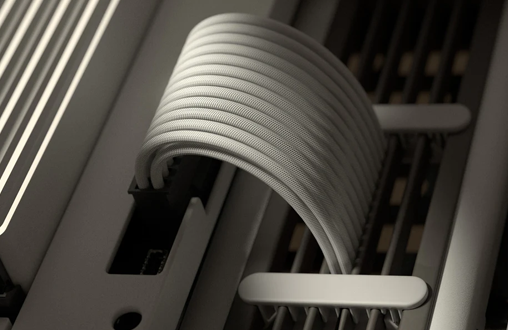

Cable Management Re-InventedClever silicon pass-throughs with stabilising clips allow for precision cable management.​

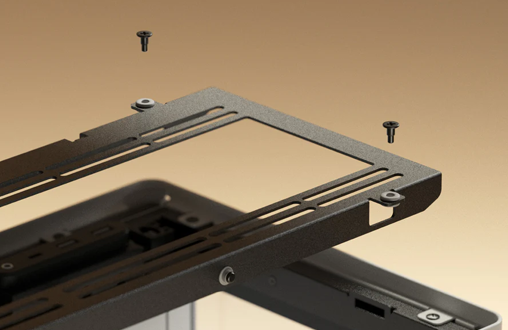

Vibration Isolation

Vibration IsolationAll of the fan brackets have flexible rubber to isolate the bracket from the chassis and avoid resonance build up.

GPU Support

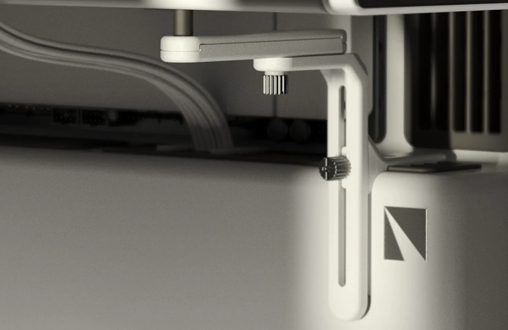

GPU SupportThe 3-way adjustable structural support bracket is designed to handle a wide range of graphics cards of all shapes and sizes while maintaining a neat and smoothly integrated appearance.

Specifications
Core Chassis Specifications
Case Edition HAVN HS420 Black
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (277mm Wide Max.)
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power On/Off button
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 1 x 3.5" / 2x 2.5" Internal
  • 4 x 3.5" / 8x 2.5" Internal
Standard Expansion Slots 6
Vertical Expansion Slots
Fans & Filters
Fan Bays 11 x 120mm / 11x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 280/360/420mm
Bottom Radiator Compatibility 1 x 280/360/420mm
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 280/360/420mm
Clearances
Max CPU Cooler Height up to 185 mm
Max GPU Card Length 480 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SGCC / ABS Plastic / Tempered Glass
Dimensions 259.5 x 547 x 541 (WxHxD mm)
Weight 17.84 kg (Approx)
Package Type Retail
Please Note Please see key features for cooling compatibility
Additional Information
Scan Code LN156895
Model Number HVN-CA-HS420-06
GTIN 4251442512149
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
1 months
