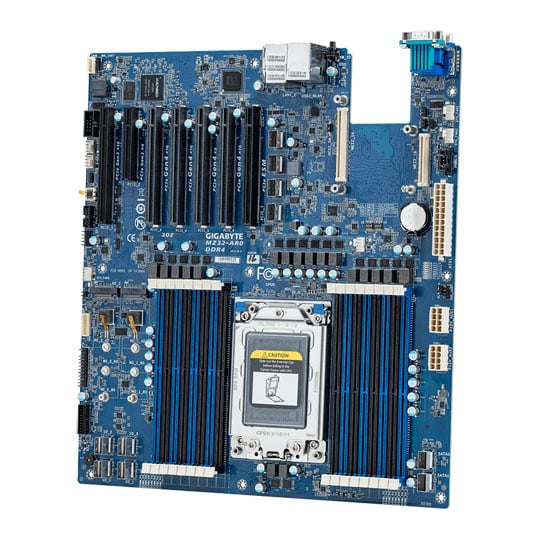

Gigabyte MZ32-AR0 AMD EPYC 7002 E-ATX Server Motherboard

Gigabyte MZ32-AR0, S SP3, DDR4, 2x SlimSAS for SATA3, 2x M.2, PCIe 4.0, 2x GbE, Mgmt LAN, 3x USB 3.0, E-ATX

Thumbnail 1 : Gigabyte MZ32-AR0 AMD EPYC 7002 E-ATX Server Motherboard Thumbnail 2 : Gigabyte MZ32-AR0 AMD EPYC 7002 E-ATX Server Motherboard Thumbnail 3 : Gigabyte MZ32-AR0 AMD EPYC 7002 E-ATX Server Motherboard Thumbnail 4 : Gigabyte MZ32-AR0 AMD EPYC 7002 E-ATX Server Motherboard
Scan code: LN108778 Manufacturer code: 9MZ32AR0MR-00
£659.99Item currently awaiting an ETA
Pre order
From £22.55 / month (APR 14.9%)
Monthly Payment: £59.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £659.99
Total inc. interest: £710.98
Monthly Payment: £31.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £659.99
Total inc. interest: £760.29
Monthly Payment: £22.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £659.99
Total inc. interest: £811.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

AMD EPYC™ 7002 Series

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption.
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture.
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0.
• Embedded security protection to help defend your CPU, applications, and data.


GIGABYTE Management Console

GIGABYTE server utilises the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

• RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management.
• Including HTML5 based iKVM remote management client, no need to purchase other additional licenses.
• Detailed FRU information from SMBIOS.
• 10 to 30 seconds pre-event automatic recording function.
• SAS / RAID controller monitoring function.


GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.

*GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.


GSM Mobile for iOS and Android

A GSM Mobile app is available for download for both iOS and Android mobile phones for remote server management on the go.


Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of GIGABYTE server nodes without having to switch to a separate software platform.


PCIe Gen 4.0 Ready

AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.

*The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).


Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel).


Get the Memory Performance Edge

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!


More M.2 Storage

GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.


Max TDP Support

GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP).


Data Security - TPM 2.0 Module

GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).


Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.


Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

Features

• Single AMD EPYC™ 7002 series processor family.
• 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs.
• 2 x 1Gb/s LAN ports (Intel® I350-AM2).
• 1 x Dedicated management port.
• 2 x SlimSAS (with 8 x SATA 6Gb/s) ports.
• 4 x SlimSAS (with 4 x NVMe) ports.
• Ultra-Fast M.2 with PCIe Gen3 x4 interface.
• Up to 5 x PCIe Gen4 slots and 2 x PCIe Gen3 slots.
• 1 x OCP 2.0 Gen3 x16 mezzanine slot.
• Aspeed® AST2500 remote management controller.

Specifications
Core Specifications
Edition MZ32-AR0 (rev. 1.0)
Form Factor E-ATX
CPU Socket SP3
Chipset System-on-Chip
RAM Memory Support
Memory Type DDR4 RDIMM/LRDIMM
Memory Channel Octa (8)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 128GB
Audio
Audio N/A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2500
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 OCP Mezzanine Slot
  • 1 x PCIe 3.0 x8
  • 4 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SlimSAS for SATA3 (6Gb/s)
RAID Support via
Storage Mode Support NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x BIOS Recovery Jumper
  • 1 x Buzzer
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Connector
  • 1 x HDD Back Plane Board Header
  • 1 x IPMB Connector/Header
  • 2 x M.2
  • 1 x PMBus Connector
  • 10 x SlimSAS Connector
  • 5 x System Fan header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® i350-AM2 Dual Port (GbE)
  • 1 x Mgmt LAN (10/100/1000)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x ID Button with LED
  • 1 x Management LAN
  • 1 x Serial (COM)
  • 3 x USB 3.0
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 409 x 355 x 78 (box) mm
Note
Additional Information
Scan Code LN108778
Model Number 9MZ32AR0MR-00
