EK-HDC Fitting 12mm G1/4 compression fitting Elox Black
EK-HDC Fitting 12mm G1/4, Solid-tube compression fitting, Elox Black
Scan code:
LN58767
Manufacturer code:
3831109846018
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.
EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.
The barb is made of black nickel-plated CNC machined brass while the ring is made of black anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase). Features PLEASE NOTE:
• Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
• Do not use excessive force when inserting solid tube!
• It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
• Thread: G1/4" BSP; 4.5mm male thread length
• Supported tube: 12mm (OD)
• Outer diameter of a fitting: 18.8mm
• Installed height: 17mm
• Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.
The barb is made of black nickel-plated CNC machined brass while the ring is made of black anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase). Features PLEASE NOTE:
• Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
• Do not use excessive force when inserting solid tube!
• It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
• Thread: G1/4" BSP; 4.5mm male thread length
• Supported tube: 12mm (OD)
• Outer diameter of a fitting: 18.8mm
• Installed height: 17mm
• Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

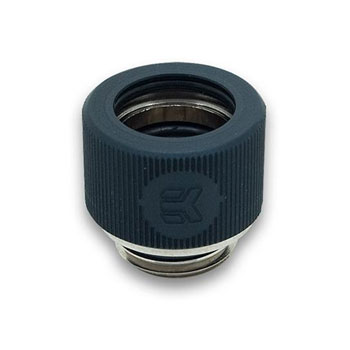

EK-HDC Fitting 12mm G1/4 compression fitting Elox Black
