Earthquaker Devices Data Corrupter Harmonizing PLL

Earthquaker Devices Data Corrupter Modulated Monophonic Harmonizing PLL Effect Pedal, Flexi-Switch, True Bypass

Thumbnail 1 : Earthquaker Devices Data Corrupter Harmonizing PLL Thumbnail 2 : Earthquaker Devices Data Corrupter Harmonizing PLL Thumbnail 3 : Earthquaker Devices Data Corrupter Harmonizing PLL Thumbnail 4 : Earthquaker Devices Data Corrupter Harmonizing PLL Earthquaker Devices Data Corrupter Harmonizing PLL : video thumbnail 1 Earthquaker Devices Data Corrupter Harmonizing PLL : video thumbnail 2 Earthquaker Devices Data Corrupter Harmonizing PLL : video thumbnail 3 Earthquaker Devices Data Corrupter Harmonizing PLL : video thumbnail 4
Scan code: LN97088 Manufacturer code: EQDDAT
£217.00
Free Delivery
From £10.42 / month (APR 14.9%)
Monthly Payment: £37.66
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.00
Total inc. interest: £225.92
Monthly Payment: £19.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.00
Total inc. interest: £233.79
Monthly Payment: £13.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.00
Total inc. interest: £241.79
Monthly Payment: £10.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.00
Total inc. interest: £249.96
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Sep 2019 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

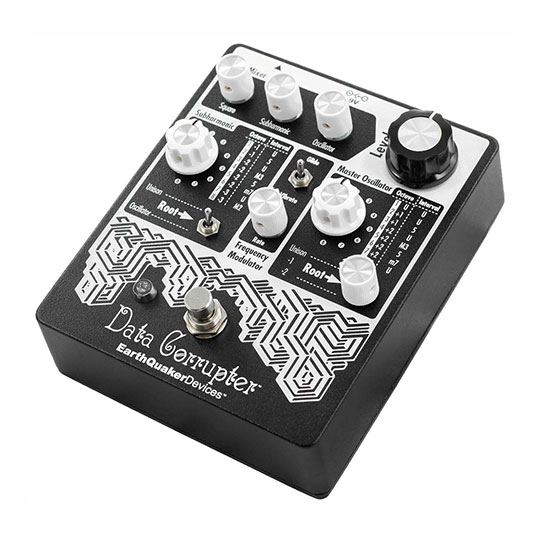

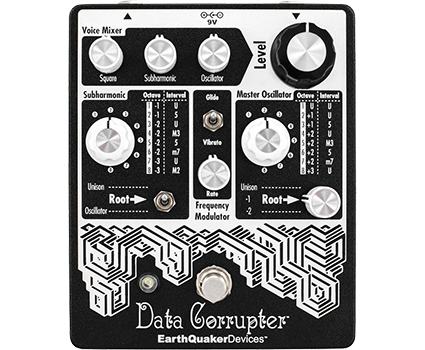

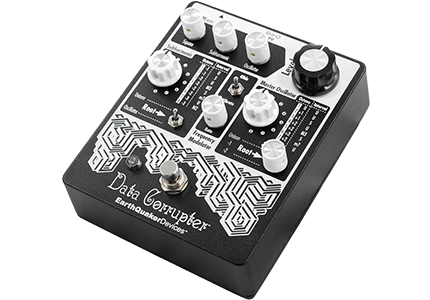

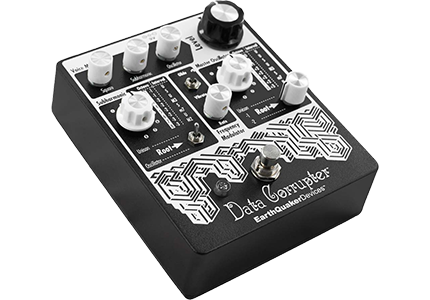

Product Overview The Data Corrupter is a monophonic analog harmonizing PLL with modulation. It takes your input signal and brutally amplifies it into a crushing square wave fuzz tone that is then multiplied, divided and modulated to create a wild, yet repeatable, three-voice guitar synthesizer.

The Master Oscillator is the central nervous system at the heart of the Data Corrupter’s cyberpunk hive mind. It feeds your input to the signal harvester in its original octave (Unison), one octave down (-1) or two octaves down (-2) for maximum compatibility with your preferred instrument and frequency register. Once you’ve chosen your input octave, then the Data Corrupter will perform its calculations and spit out an analog synthesized frequency, which can be pitch-bent for portamento or vibrato sounds by the Frequency Modulator! From there, you can blend in one of eight Subharmonic intervals up to three octaves below the input and mix in a square wave fuzz tone for maximum data corruption.

Nerd Talk
The heart of this pedal is based around a CMOS Phase Locked Loop (PLL) IC. In a nutshell, the PLL takes your input signal and compares its phase and frequency against an oscillator, generates an output proportional to their difference then feeds it back to the oscillator. This then causes the oscillator to lock onto the input signal and generate a synthesized frequency. Pretty cool, right? This synthesized frequency is referred to as the Master Oscillator on the Data Corrupter.

Design Notes
This device takes its inspiration from the Electrax Synthax and the “Basic Frequency Synthesizer” by Ray Marston. Neither of these were really intended to be guitar effect pedals and a lot of work went into creating the Data Corrupter to provide excellent tracking and long sustain. We think you’ll find it more expressive and accurate than pretty much any other PLL based effect pedal around.

More information can be found in the User Manual below:
Data Sheet Features • Measures: 5.65" x 4.75" x 2.25" with knobs
• Current Draw: 26mA
• Input Impedance: 1M Ohm
• Output Impedance: <1K Ohm
• Flexi-Switching: This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

• Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
