Tri-Voice Chorus

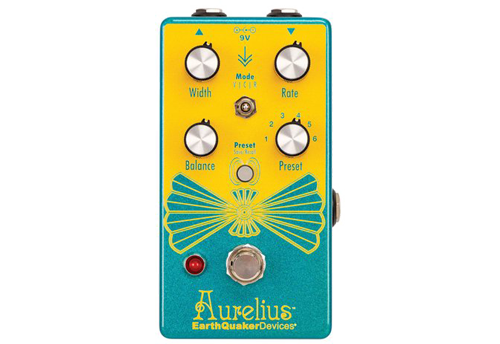

Earthquaker Devices - Aurelius
Tri-Voice Chorus Pedal
Made in usaThis is not your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-voice chorus with six programmable presets and expression control. Choose from Vibrato Mode, Chorus Mode, and Rotary Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. One simple tap of the Preset (“Save/Recall”) switch and you can summon up to six settings of your choosing at will.
Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. And by popular demand, we’ve equipped this with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance. Put it in Vibrato Mode and you’ll have a really subtle chorus with a seasick vibrato and alternate quickly between the two seamlessly. And that’s only one mode. The possibilities are endless.
at a glance
• Tri-voice Chorus/Vibrato/Rotary Speaker Emulation effects pedal
• 6 easily customisable preset slots
• Made in USA
Three Voices
Mode V: VibratoThis mode is a familiar traditional chorus type effect that leans towards vibrato with a triangle LFO modulating a short delay line. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.
Mode C: ChorusMode C is a blend of chorus and flanger. It has more warmth and slower rates than Mode V and uses a sine wave LFO to modulate the delay line. The Width control plays a major role in this mode and determines which type of modulation is more prominent.
Mode R: Rotary ChorusMode R is a rotary chorus effect modeled after the sound of a Leslie speaker cabinet. This effect combines both amplitude and frequency modulation for a Doppler effect.
Global Features
Operating ModesAurelius has two operating modes which are indicated by the color of the Save/Recall switch LED. In Live Mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset Mode, stored presets are selected using the Preset switch, and the physical settings of the controls will be ignored.
PresetsAurelius has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the Mode switch and the expression jack assignment can be saved and recalled in any of the slots.

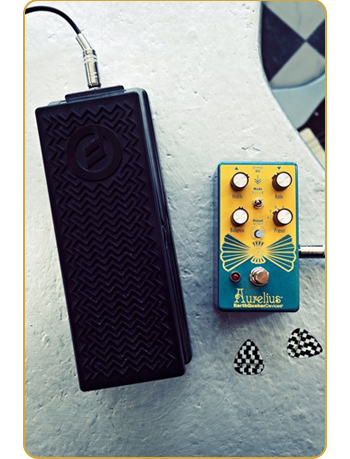

Expression ControlUse any TRS expression pedal to take control over the Width, Rate or Balance! Different EXP assignments can be saved in each preset. You can also use Control Voltage with the EXP jack. The CV range is 0 to 3.3v.
Aurelius Tri-Voice Chorus Demo
The Tech Spec
| Features | Specification | Dimensions | 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs |
|---|---|
| Current Draw | 75 mA |
| Input Impedance | 500 kΩ |
| Output Impedance | 100 Ω |
| TRS expression pedal wiring | Tip: Wiper Ring: +3.3V Sleeve: Ground |
