Dynatron Q7 1U LGA 1700 / 1851 Active Server Cooler
Dynatron Q7 Active Server CPU Cooler, LGA 1700/ 1851, 80mm PWM Fan, For 1U Server
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£15.00
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Dynatron Q7

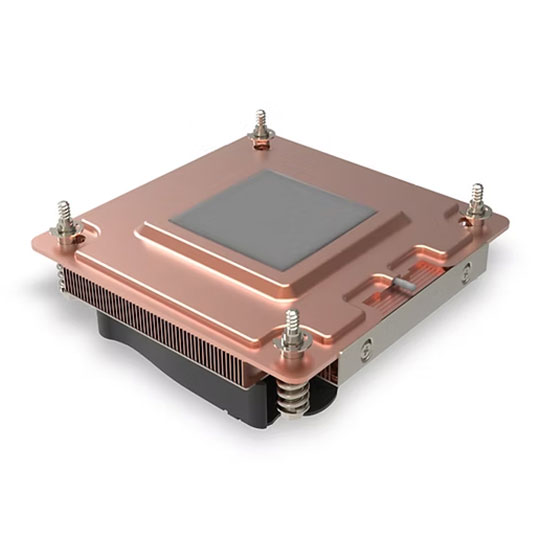

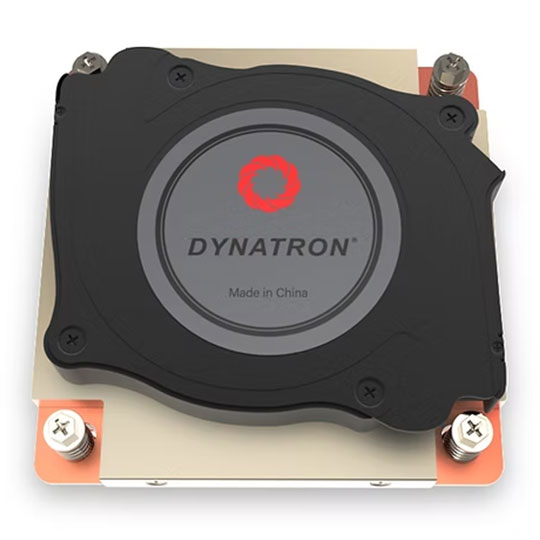

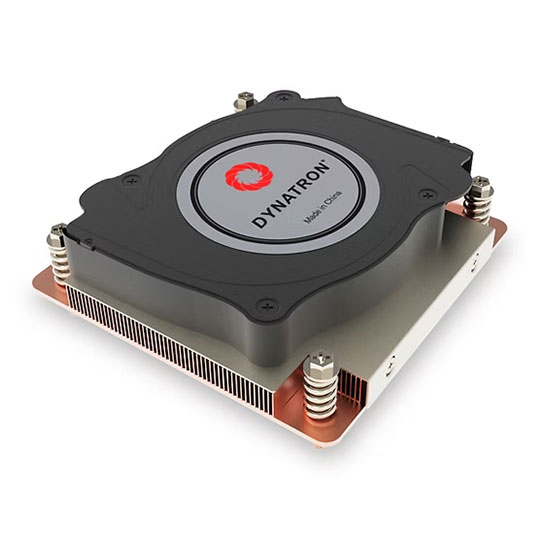

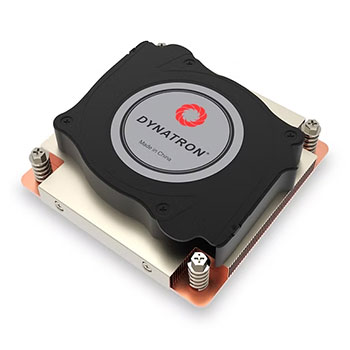

The Dynatron Q7 is a high-performance CPU cooler designed for Intel Core 12th to 15th Gen processors using the LGA 1851/1700 socket. This compact 1U active cooler features a copper vapor chamber heatsink with stacked fins, offering superior thermal management for servers and workstations in space-constrained environments. With support for CPUs up to 150W TDP at 30°C ambient temperature, the Q7 is capable of handling powerful processors in 1U server configurations and up. The cooler's PWM-controlled 80mm fan operates at speeds ranging from 2000 to 8700 RPM, providing efficient cooling while balancing noise levels from 23.3 to 62.2 dBA. Its dimensions of 95 x 94 x 28.2 mm and weight of 380g make it an ideal solution for compact server builds requiring robust heat dissipation.
Features
• CPU Support: Intel Core 12th to 15th Gen processors.
• CPU Socket: LGA 1851/1700.
• Material: Copper Vapour Chamber Heatsink with Stacked Fins.
• Dimensions: 95 x 94 x 28.2 mm.
• Weight: 380 g.
• Fan Specifications:
• Model: DB128013BU-PWM.
• Dimension: Ø80 x 13 mm.
• Bearing: Double Ball Bearing.
• Rated Voltage: 12V.
• Speed: 2000 RPM (20% duty cycle), 4900 RPM (50% duty cycle), 8700 RPM (100% duty cycle).
• Noise Level: 23.3 dBA (20% duty cycle), 43.5 dBA (50% duty cycle), 62.2 dBA (100% duty cycle).
• Thermal Performance: Supports up to 125W TDP for overclocking and 150W at 30°C ambient temperature.
• Thermal Grease: Pre-applied Shin-Etsu 7762.
• Application: Suitable for 1U servers and up.
