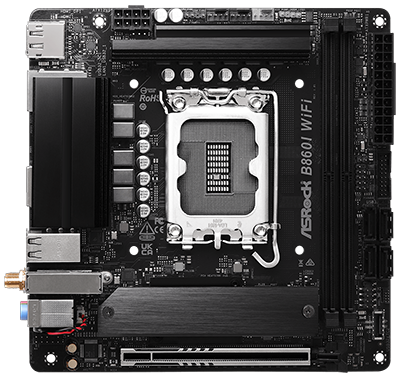

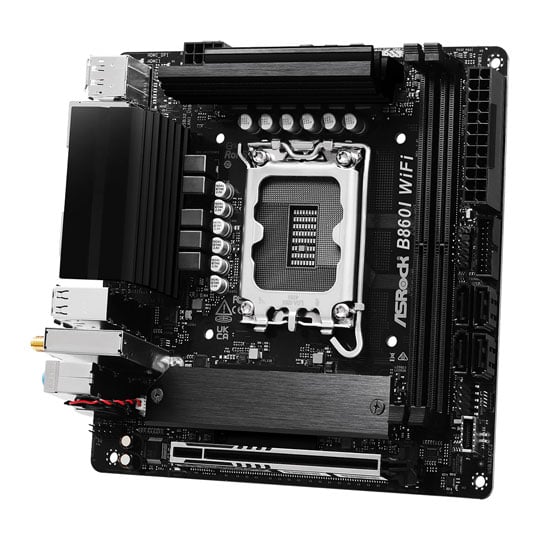

ASRock B860I WiFi DDR5 PCIe 5.0 Mini-ITX Motherboard

ASRock B860I WiFi

Built to deliver reliable performance with versatile features, perfect for daily tasks.

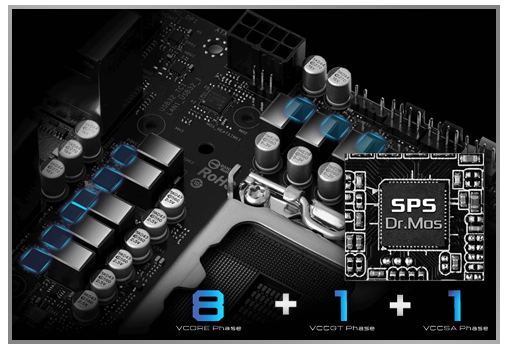

8+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. It offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring the current and temperature of each phase! , thus delivering smoother power to the CPU with enhanced performance and OC capability.

Hi-Density Power Connector

CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

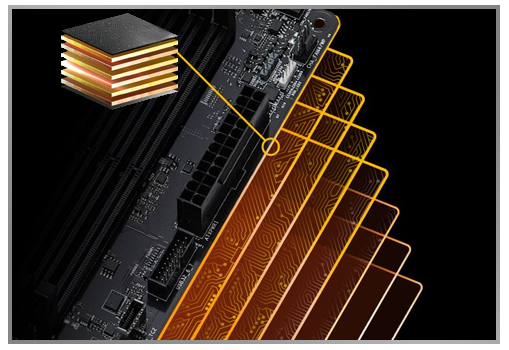

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperatures and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

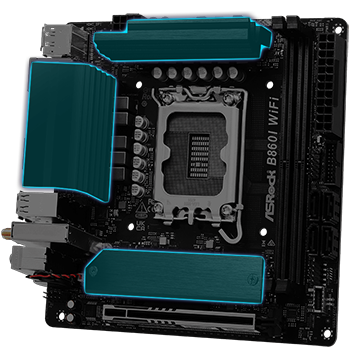

Aluminium Heatsink

The first thing that catches the eye is the optimized Aluminium Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboards that are built with heatsinks can effectively manage thermal performance, hence ensuring system stability and durability effortlessly.

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

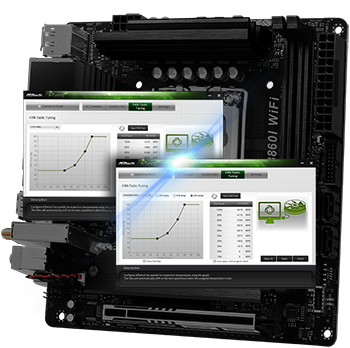

Fan-Tastic Tuning

ASRock A-Tuning Fan-Tastic function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

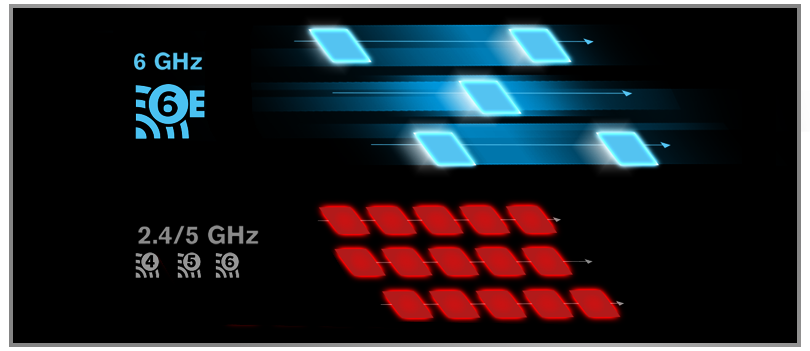

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving even better and faster internet traffic. In addition to delivering higher speeds, WiFi 6E also enhances lower latency and supports service levels that are equivalent to 5G networks.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Dual LAN Design

Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual Graphics Outputs

Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clears the sound, removes interference noise and lowers the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on Any Device!

Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow your motherboard to be connected to compatible LED devices such as a strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).
• 8+1+1+1+1 Power Phase, SPS for VCore+GT+SA.
• 2 x DDR5 DIMMs.
• Supports Dual Channel, up to 8933+ (OC).
• 1 PCIe 5.0 x16.
• Graphics Output Options: 1 HDMI, 1 DisplayPort.
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
• 4 SATA3.
• 1 Blazing M.2 (PCIe Gen5x4).
• 1 Hyper M.2 (PCIe Gen4x4).

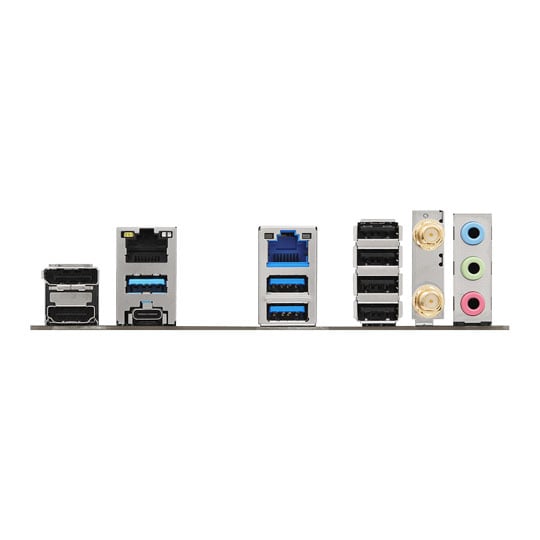

• 1 USB 3.2 Gen2x2 Type-C (Rear).
• 1 USB 3.2 Gen2 Type-C (Front).
• 1 USB 3.2 Gen2 Type-A (Rear).
• 4 USB 3.2 Gen1 (2 Rear, 2 Front).
• 6 USB 2.0 (4 Rear, 2 Front).
• Realtek 2.5G LAN.
• Intel® Gigabit LAN.
• 802.11axe WiFi 6E + Bluetooth.
