Brainboxes Universal 2 port RS422 or 485 PCI OPTO Velocity Serial Port Card (UC-310)
Brainboxes Universal 2 port RS422 or 485 PCI OPTO Velocity Serial Port Card (UC-310)
Scan code: LN17464 Manufacturer code: UC-310
£239.99Item currently awaiting an ETA
Pre Order
Pre order

Brainboxes Universal 2 port RS422 or 485 PCI OPTO Velocity Serial Port Card (UC-310)

Scan code: LN17464 Manufacturer code: UC-310
£239.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre Order
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.00 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £20.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £239.99
    Total inc. interest: £239.99
    Monthly Payment: £10.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £239.99
    Total inc. interest: £239.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

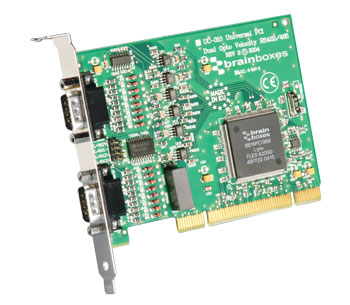

Product Overview Universal PCI card providing 2 industry standard 9 pin RS422/485 serial COM ports in a single PCI slot. Velocity megabaud data transfer rates and 128 byte deep FIFO guarantees uncompromising performance and fault free use.

Optical isolation provides greater protection from eletrical current surges to both the card itself and the PC.

Universal PCI is fully compatible with both 3.3Volt and 5Volt PCI slots; protecting your investment into the future.

Now with Brainboxes Lifetime Warranty and Support!
Features Software
Microsoft Signed Drivers (easy installation and robust operation) for:

• Windows Server 2003 x32 bit and x64 bit Editions
• Windows XP x32 bit and x64 bit Editions
• Windows 2000

Fully tested drivers also included for:

• Windows Me, Windows 98 and 95, Windows NT

As well as: full product documentation, a thorough trouble shooting guide and terminal software.

Features
• 2 Port RS422/485
• Universal PCI
• 128 Byte FIFO with user definable trigger level
• Up to 921,600 baud
• Standard Profile
• Full Duplex and Half Duplex Autogating
• Optical Isolation: 1500 Volt DC, 1000 Volt AC
• Transient Spike Protection
• Drivers for all popular operating systems
• Sample programs, Test and Terminal software- all with source code
• Lifetime Support and Lifetime Warranty
Specifications
Interface
Connectivity 2 x RS422/485
Additional Information
Scan Code LN17464
Model Number UC-310
GTIN 837324000436
