Scan code: LN95935 Manufacturer code: WAZA-TAE

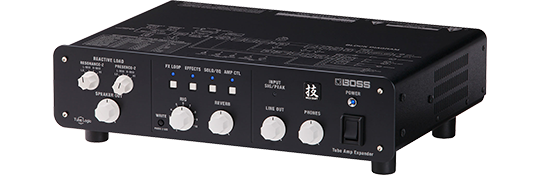

BOSS WAZA-TAE Tube Amp Expander

BOSS WAZA-TAE Tube Amp Expander, Variable Reactive Load, Recallable Rig settings, MIDI I/O, 100W Class AB Power Amp

Thumbnail 1 : BOSS WAZA-TAE Tube Amp Expander Thumbnail 2 : BOSS WAZA-TAE Tube Amp Expander Thumbnail 3 : BOSS WAZA-TAE Tube Amp Expander Thumbnail 4 : BOSS WAZA-TAE Tube Amp Expander BOSS WAZA-TAE Tube Amp Expander : video thumbnail 1 BOSS WAZA-TAE Tube Amp Expander : video thumbnail 2
Scan code: LN95935 Manufacturer code: WAZA-TAE
£949.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order in the next 1 hr 25 mins and get it tomorrow
From £32.42 / month (APR 14.9%)
Monthly Payment: £85.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £949.00
Total inc. interest: £1,022.33
Monthly Payment: £45.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £949.00
Total inc. interest: £1,093.23
Monthly Payment: £32.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £949.00
Total inc. interest: £1,167.16
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 22nd Jan to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Boss - 'WAZA'
Tube Amp Expander

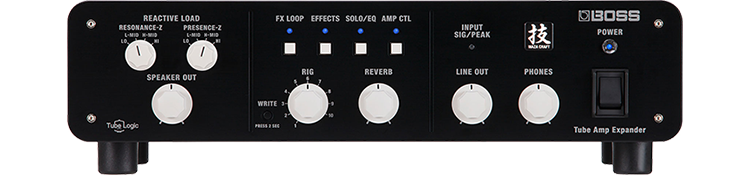

Boss WAZA Tube Amp Expander

Modernize The Tube Amp ExperienceBringing together a diverse range of professional tone tools for the very first time, the Waza Tube Amp Expander elevates the tube amp experience to a new level of versatility for stage performing and studio recording. This amazing device does it all—it’s a variable reactive load box, active analog power stage, mic’d cab emulator, IR loader, and recording interface, all in one integrated unit that’s road-ready and easy to use.

Backed by our advanced Tube Logic approach, you’re able to crank your amp to its sweet spot and play at any volume while faithfully retaining the core tone and feel you love. And with extensive connectivity, built-in BOSS effects, 10 fully customizable rig setups, and deep real-time control, you have unparalleled creative command for any scenario. Packed to the max with breakthrough BOSS innovations, the Waza Tube Amp Expander is an essential companion for every tube amp player.

Amazing Features • First-of-its-kind tube amp command center, built with Waza expertise and the Tube Logic design approach
• Advanced variable reactive load circuit with discrete analog components supports tube amps up to 150 watts
• Built-in 100-watt Class AB power amplifier with discrete analog design and seamless volume control
• Deep real-time performance control via GA-FC/FS-series footswitches and MIDI I/O
• Ten recallable rig settings for storing favorite setups

Waza Innovation for Lovers of Pure Tube Tone

Boss WAZA Tube Amp Expander

A Next-Generation FoundationBacked by Waza R&D expertise and the continuously improving Tube Logic approach, the Waza Tube Amp Expander complements and extends your tube amp with ease, all without affecting the tone and response that you spent ages perfecting. The original idea for this unique device came during the development of the flagship Waza amplifier head.

To test and refine the amp’s AC power voltage and output circuitry in detail, the BOSS team devised a custom load box with capabilities reaching much further than those in any commercially available unit. This innovative design worked so well that it became the logical foundation for developing a next-generation foundation for the modern tube amp player.

Cranked-Amp Tone & Feel at Any Volume

Boss WAZA Tube Amp Expander

Eliminates Any Loss of ToneBy owning a tube amp, you know that it sounds and feels best when it’s cranked up loud and running hot. But if you’re like most of us, it’s a rare occasion to be able to turn up the volume enough to reach the full expressive potential. Load boxes and volume attenuators driven by a tube amp’s speaker output have attempted to solve this volume problem for years. Although they do lower the volume and provide manageable results, they typically introduce elements that change the tone, dynamic response, and distortion character, leaving you with an unsatisfying result.

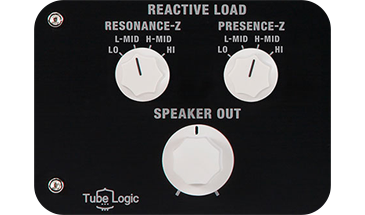

The Waza Tube Amp Expander’s advanced reactive load section completely eliminates any tone loss, allowing you to experience your amp’s true cranked-up sound and interactive feel while controlling the volume to suit any scenario. A main feature is the Resonance-Z and Presence-Z panel controls, which edit the all-important impedance interaction with your amp’s output transformer. Choosing from sixteen different settings, you can make your amp behave and respond just as if it were connected to your favorite speaker cab. Any tube guitar amp up to 150 watts is supported, from vintage combos to modern high-gain heads.

Bigtime Rig Control

Boss WAZA Tube Amp Expander

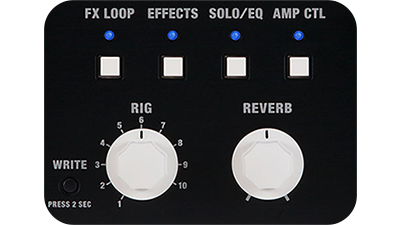

Easily AdjustableWith deep control options, the Waza Tube Amp Expander is an ideal hub for both stage and studio. Ten different rig setups can be stored in the unit, and each includes your custom effects and EQ settings, cab/IR selections, effects loop on/off, MIDI program change (for controlling external MIDI effects), and amp control status (if you have an amp that supports channel switching). Rigs can be recalled with a panel knob, and extra controls are available for reverb and other functions. There’s also a Write button for saving minor adjustments in the heat of a live performance.

Connecting the optional GA-FC foot controller puts full-throttle performance control at your feet. Via a single TRS cable, you have instant access to the 10 rigs, plus real-time control of delay, tap tempo, solo/EQ, effects loop on/off, and amp channel switching. You can also control levels by connecting external expression pedals to the GA-FC. The Waza Tube Amp Expander also supports FS-series footswitches, plus extensive MIDI control for more complex setups.

Effects to the Max

Boss WAZA Tube Amp Expander

Everything You NeedWith its built-in effects engine and external effects loop, the Waza Tube Amp Expander offers a range of sonic enhancements to your tube amp, especially if it’s a vintage model with no effects loop. Onboard DSP provides premium sound quality and true stereo operation with class-leading 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate.

Compressor, delay, and reverb effects are on hand, with loads of customizable settings via dedicated editor software. Four different EQs are available for strategically shaping your tone at multiple points in the signal path, and it’s even possible to use one of the EQs as a switchable boost for solos. The external loop offers selectable series or parallel operation, plus support for both line-level devices and standard stompbox effects.

Feed Stage Cabs, Mixers, Recording Devices, & Headphones

Boss WAZA Tube Amp Expander

Complete Tones For Any SituationWhen you’ve dialed in your amp to the level you love, the Waza Tube Amp Expander lets you deliver that complete sound to multiple destinations at once. With parallel speaker outputs, you can drive up to two stage cabs from the integrated 100-watt Class AB analog power stage. Along with providing smooth, non-stepped level control for any connected amp, this rugged power stage also gives you the option to boost your favorite low-wattage amps to stage-ready volumes.

Balanced mono and stereo line outputs include tone shaping from mic’d cab emulation or user IRs, providing ready-to-mix direct signals for the main PA mixer, stage monitors, and recording devices. There’s a USB output too, meaning you get another direct feed for tracking with your preferred music production software. With the dedicated phones output, you can practice with great tube tone without disturbing anyone nearby.

Intense Customization

Boss WAZA Tube Amp Expander

Extra ControlThe Waza Tube Amp Expander works great instantly, but connecting to the dedicated editor software via USB gives you even further creative potential. For a start, you’re able to edit effects and EQs in micro detail. Along with this, you can select from 22 different mic’d cabs for the direct outputs, each with your choice of nine adjustable close-mic types plus five room-mic types for adding spaciousness and depth.

There are also 32 user slots for loading your go-to speaker IRs if you wish. Other tweaks are available too, including MIDI, system parameters, and a loudness contour for big, full tones at whisper-quiet levels. Favorite rig setups can be saved on your computer and updated as Live Sets for different gigs and recording scenarios.

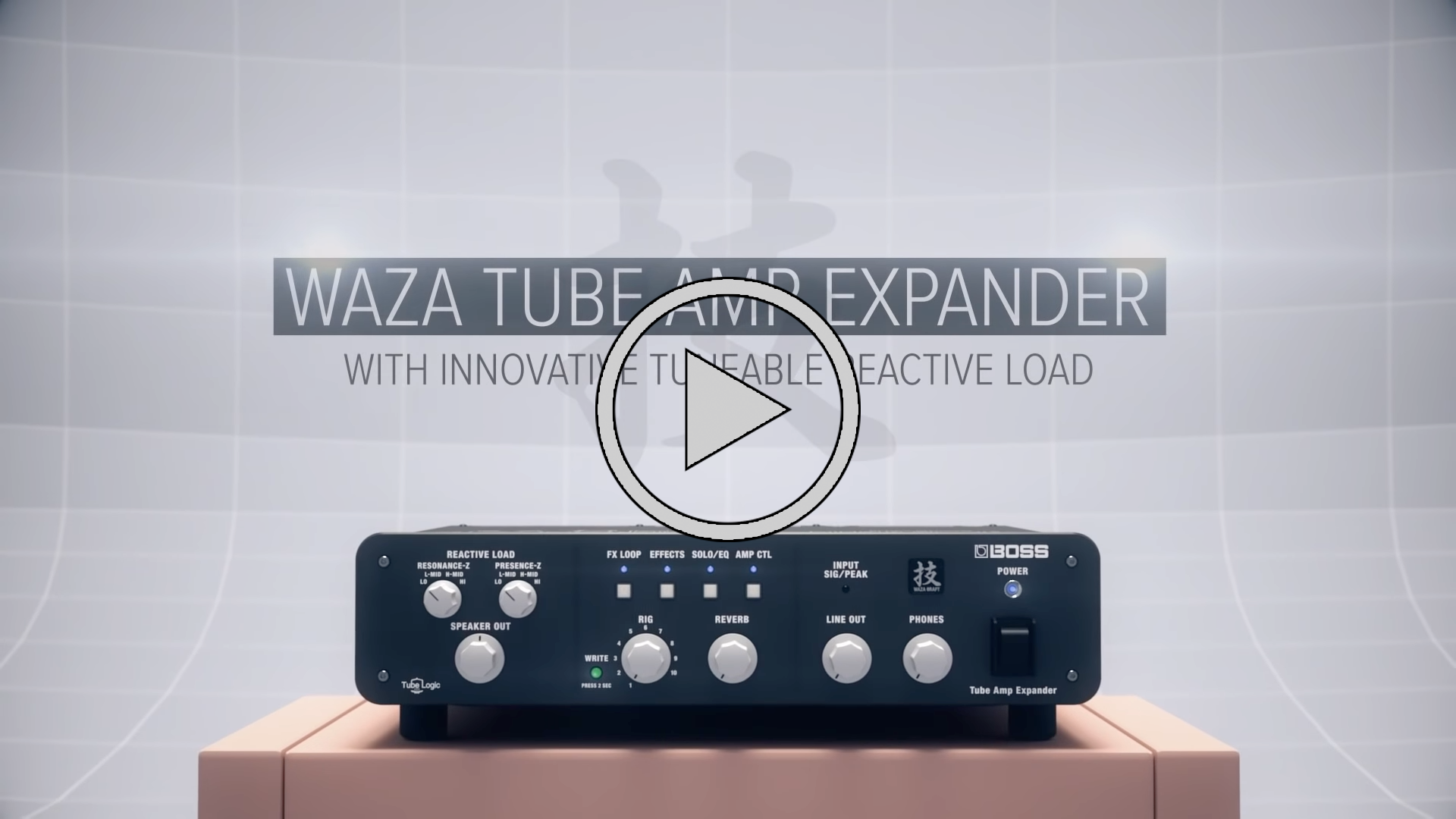

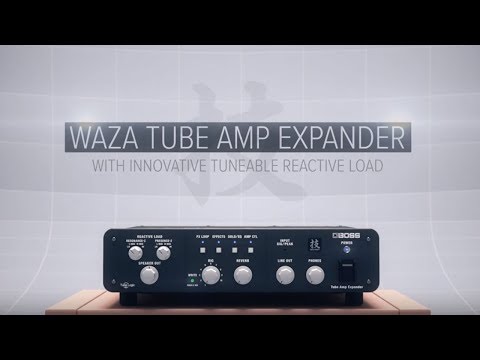

BOSS WAZA Tube Amp Expander - Overview

The Tech Spec

Features Specification
FROM TUBE AMP Input Maximum Input Power: 150 W
Input Impedance: 4/8/16 ohms (selectable)
Safety Load (power off): 16 ohms
TO SPEAKER Output Rated Power Output: 100 W (8 ohms)
Load Impedance: 4-16 ohms
Nominal Output Level LINE OUT L/R: +4 dBu
LINE OUT MONO (FOH): +4 dBu
FX LOOP Nominal Output Level -10/+4 dBu (selectable)
Maximum Output Level LINE OUT L/R: +20 dBu
LINE OUT MONO (FOH): +20 dBu
FX LOOP SEND: +6 dBu (-10) /+20 dBu (+4)
Input Impedance FX LOOP RETURN: 1 M ohm
Output Impedance LINE OUT L/R: 600 ohms
LINE OUT MONO (FOH): 600 ohms
FX LOOP SEND: 1 k ohm
Controls POWER switch
SPEAKER OUT knob
LINE OUT knob
PHONES knob
RESONANCE-Z knob
PRESENCE-Z knob
RIG knob
REVERB knob
FX LOOP button
EFFECTS button
SOLO/EQ button
AMP CTL button
SPEAKER IMPEDANCE switch
INPUT LEVEL switch
L/R GND LIFT switch
MONO (FOH) GND LIFT switch
LOOP switch
LEVEL switch
SEND GND LIFT switch
RETURN GND LIFT switch
AMP CTL switch
Indicators POWER
WRITE
FX LOOP
EFFECTS
SOLO/EQ
AMP CTL
INPUT SIG/PEAK

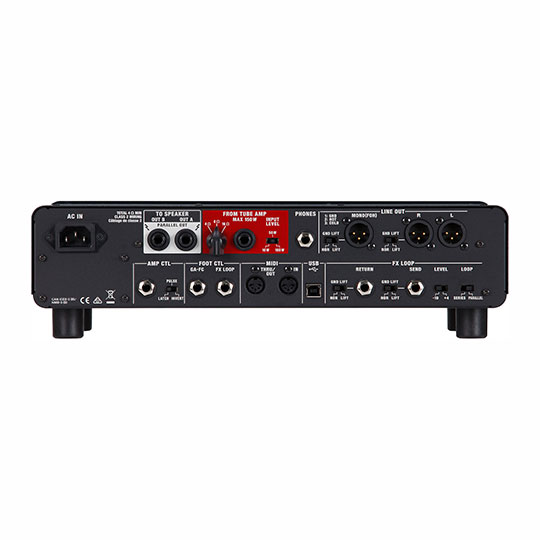

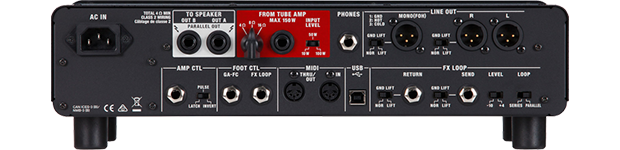

Connectors FROM TUBE AMP jack: 1/4-inch phone type
SPEAKER OUT jacks (OUT A, OUT B): 1/4-inch phone type

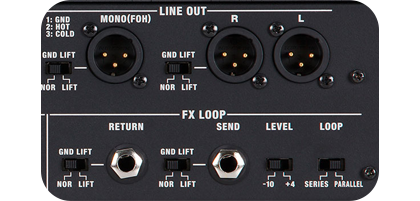

LINE OUT L/R connectors: XLR type
LINE OUT MONO (FOH) connector: XLR type
PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
FX LOOP jack: 1/4-inch phone type
GA-FC jack: 1/4-inch TRS phone type
AMP CTL jack: 1/4-inch phone type
USB COMPUTER port: USB B type
MIDI (IN, THRU/OUT) connectors
AC IN jack
Power Consumption 100 W
Accessories Owner's manual
Power cord
Rack mount angle x 2 (for EIA-2U)
GA-FC sticker
Dimensions Width: 380 mm
Depth: 296 mm
Height: 110 mm
Weight 6.8 kg / 15 lbs
Specifications
Wattage 100 W
Built-in Effects Yes
Effects
  • Compression
  • Delay
  • EQ
  • Reverb
Number of Tweeters 0
Number of Speakers 0
Speaker Size (Inches) 0 "
Lowest Impedance
Additional Information
Scan Code LN95935
Model Number WAZA-TAE
GTIN 4957054513597
