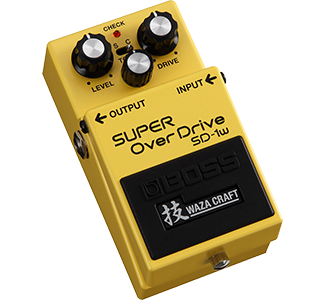

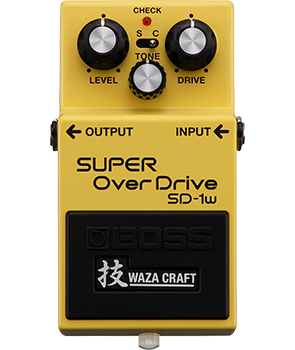

BOSS - 'SD-1W' Waza Craft Edition Super OverDrive
BOSS - 'SD-1W' Super Overdrive Stompbox, Special Edition Waza Craft Edition
Email me when the availability or price changes
Frequently Bought Together
Waza Craft Edition Super OverDrive
BOSS - 'SD-1W'

A PRIME REDESIGNThe BOSS SD-1W Waza Craft Super Overdrive was passionately designed by the leading engineers at BOSS in Japan. The SD-1W offers a premium stomp experience that fans of customized pedal tone will be sure to love. Made with an ear for highly refined sound, the SD-1W hot rods the renowned BOSS overdrive with all-discrete analogue circuitry. Standard mode captures the classic SD-1 sound while Custom mode provides new tonal range and gain, giving you expanded tonal options.
At A Glance
• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Premium sound based on the legendary SD-1 Super Overdrive
• Newly revised, all-analog discrete amplifier circuit
• Standard and Custom sound modes
The Art of Superior Tone

Waza CraftFrom the start, engineers at Boss have been dedicated to creating the finest guitar tones possible using a range of technology from old-school analog circuits to high-tech DSP. Continuing their passion, Boss proudly present the Waza Craft series.
In Japan, “Waza” means art and technique, suitably named, these special edition pedals carry the Waza symbol to represent the best of Boss design and craftsmanship. The final sound is approved by Boss in Japan, the Waza Craft series gives you incredible tone and control response through carefully-chosen analog components, refined circuitry, and close attention to detail.

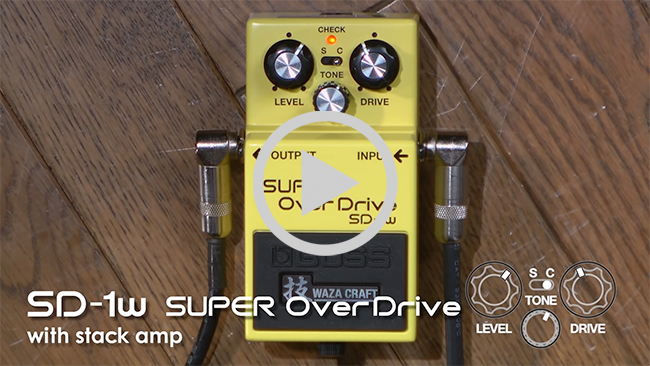

BOSS SD-1W Super OverDrive Sound Preview

The Tech Spec
Features | Specification | Nominal Input Level | -20 dBu |
---|---|
Input Impedance | 1 M ohm |
Nominal Output Level | -20 dBu |
Output Impedance | 1 k ohm |
Recommended Load Impedance | 10 k ohms or greater |
Controls | Pedal switch Mode switch LEVEL knob TONE knob DRIVE knob |
Indicator | CHECK indicator (Serves also as battery check indicator) |
Connectors | INPUT jack OUTPUT jack DC IN jack |
Power Supply | Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (sold separately) |
Current Draw | 15 mA |
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) | Carbon: Approx. 25 hours Alkaline: Approx. 42 hours |
Accessories | Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Carbon-zinc battery (9 V, 6F22) |
Option (sold separately) | AC adaptor (PSA series) |
Dimensions | Width: 73 mm Depth: 129 mm Height: 59 mm |
Weight | 430 g 0 lbs. 16 oz. |
