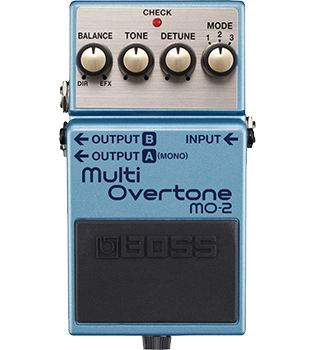

  • Thumbnail 1 : Boss MO-2 Multi Overtone Guitar Pedal

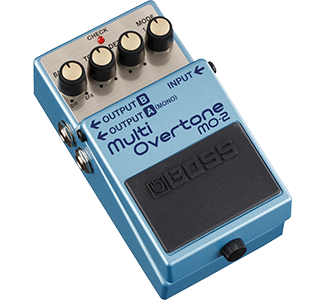

  • Thumbnail 2 : Boss MO-2 Multi Overtone Guitar Pedal
  • Boss MO-2 Multi Overtone Guitar Pedal : video thumbnail 1
  • Boss MO-2 Multi Overtone Guitar Pedal : video thumbnail 2

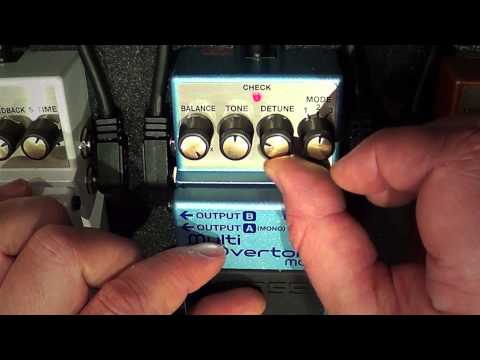

  • Boss MO-2 Multi Overtone Guitar Pedal : video thumbnail 3

Boss MO-2 Multi Overtone Guitar Pedal

Boss MO-2 Multi Overtone Effect Pedal, Multi-Dimensional Processing, Custom DSP, Mono or Stereo Output

Scan code: LN82645 Manufacturer code: MO-2
£109.00
£5.48 Next day delivery
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £36.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

Multi Overtone Pedal
BOSS - MO-2

BOSS MO-2

DISTINCTIVE, ALL-NEW TONESThe BOSS MO-2 multi overtone pedal is powered by Multi-Dimensional Processing technology (MDP), taking your guitar’s harmonic characteristics and creating a wide range of unique new sounds. Roland’s innovative Multi-Dimensional Processing (MDP) analyzes audio signals in several dimensions and applies ideal effects to each one. By giving different dynamic changes relative to the input signal in real time, MDP can create bold, all-new sounds with a previously unattainable range of expression.

At A Glance • Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing
• Impressive, harmonically rich sounds that compliment and enhance your straight guitar sound
• Three different sound modes; wide range of tonal adjustment with simple controls
• Works well with both clean and distorted guitar tones, and also bass guitar
• Ultra-responsive to volume changes and playing dynamics

An Expressive New Voice

BOSS MO-2

Inspiring TonesThe MO-2 creates incredibly distinctive and expressive tones only possible with MDP technology. Using your guitar’s rich harmonic characteristics as a starting point, the MO-2 builds completely new voices that enhance and thicken your normal sound.

Three different modes provide diverse tone-shaping options, while the DETUNE knob unlocks a wide range of impressive modulation effects. From shimmery multi-string resonance to flute-like transparency to powerful textures similar to organs and synths, the MO-2 gives you a range of unique sonic tools that add all-new dynamic resonance characteristics to your guitar.

MO-2 Multi Overtone Overview

The Tech Spec

Features Specification
Nominal Input Level -20 dBu
Input Impedance 1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Controls Pedal switch
BALANCE knob
TONE knob
DETUNE knob
MODE knob
Indicator CHECK indicator (Serves also as battery check indicator)
Connectors INPUT jack
OUTPUT-A (MONO) jack
OUTPUT-B jack
AC adaptor jack (DC 9 V)
Power Supply Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)
Current Draw 60 mA
Expected battery life under continuous use Alkaline: Approx. 3 hours
*These figures will vary depending on the actual conditions of use.
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Option (sold separately) AC adaptor (PSA series)
Dimensions Width: 73 mm,2-7/8 inches
Height: 59 mm, 2-3/8 inches
Depth: 129 mm, 5-1/8 inches
Weight (including battery) 415 g
15 oz
Specifications
Voltage 9 Volts
Current 40 mA
Battery Compartment Yes
Output Channels Mono
Dimensions 73 x 59 x 129 mm (W x H x L)
Passive Pedal No
Impedance
Additional Information
Scan Code LN82645
Model Number MO-2
GTIN 4957054503765
