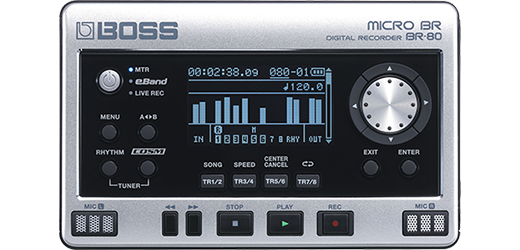

Boss MICRO BR BR-80 Digital Recorder
Boss MICRO BR BR-80 Eight-Track Digital Recorder, Three Modes - Multi-Track Recorder, eBand, Live Rec, COSM Amps and FX
Boss - 'Micro BR BR-80'
Digital Recorder
The Ultimate Micro StudioThe BOSS MICRO BR BR-80 is the ultimate new portable recording and jam-along tool for guitarists and other musicians. Small enough to fit in your pocket and featuring with three modes to create, record, and perform your music: an eight-track MTR (Multi-Track Recorder) mode; an eBand mode for onstage backing tracks and phrase training; and a Live Rec mode for capturing high-quality stereo recordings instantly.
You can even use the three modes simultaneously. For example, record your phrase ideas using Live Rec mode, then import the recordings into MTR mode to use as a basic starting point for song production. Once you’ve added tracks, import your finished songs into eBand mode to use as a backing-track at the gig. The MICRO BR BR-80 is vital tool for all musicians!
Amazing Features
• High-quality stereo condenser microphone built in for instant audio capture
• Three modes: MTR (multi-track recorder), eBand, and Live Rec
• eBand function for phrase training and play-along tracks
• Records directly to SD/SDHC memory card (up to 32 GB)
• 64 V-Tracks and eight simultaneous playback tracks
• World-class COSM amps and effects onboard
The Complete Studio To Go
Intuitive User-InterfaceSmall in size but big in features, the MTR (Multi-Track Recorder) mode gives you 64 V-Tracks with eight simultaneous playback tracks. Along with a dedicated stereo rhythm track and an onboard library of fun and enjoyable grooves to choose from. The intuitive user-interface continues the easy-to-use tradition of BOSS’ renowned BR series, with a graphical design that feels familar to that of a conventional recording console. With EQ, reverb, and mastering tools plus, world-class COSM amps and effects for guitar, bass, and vocals the MICRO BR BR-80 is ready to provide complete, pro-quality recordings with ease.
Virtual Jam Band
Sing-Along EnjoymentThe MICRO BR BR-80’s eBand mode gives musicians an enjoyable way to play along with their favorite songs. Using the bundled eBand Song List Editor software, you can import CD, MP3, and WAV audio files from a computer via USB.
The Center Cancel function can be used to lower the volume of pre-recorded vocals and solos for play- and sing-along enjoyment. eBand mode is also a great partner for musical training, as it lets you record your performance adjust playback speed and/or pitch as you wish.
Built-In Stereo Mic
High-Quality Multi FXAlong with the high-quality built-in stereo condenser microphones, the MICRO BR BR-80’s Live Rec mode allows you to instantly capture crystal clear stereo recordings. Record vocals, guitar parts, and song ideas as soon as inspiration strikes. Your recorded audio files can be imported easily into the MICRO BR BR-80’s MTR mode to use as a foundation for multi-track song production.
The MICRO BR BR-80 is packed with professional multi-effects powered by a newly developed custom DSP chip. Over 40 types of COSM amp models give you direct access to a variation of powerful guitar and bass sounds. The preset patches allow anyone from beginners to professionals to enjoy high-quality sounds immediately, while power users can edit parameters in micro detail for complete tonal control. The dedicated vocal effects, like the ones found on BOSS’s popular VE-20, include doubling, harmony effects, pitch correction, and more.
PC Companion
Easily Exchange DataThe incredibly flexible MICRO BR BR-80 can be used as a stand-alone digital recorder or as audio interface for a USB-equipped computer. The bundled Wave Converter software also allows you to easily exchange data between the MICRO BR BR-80 and any other DAW.
MICRO BR BR-80 Digital Recorder Overview
The Tech Spec
| Features | Specification | MTR Mode (Tracks) | Tracks: 8 Simultaneously recording track: 2 V-Track: 64 (8 V-Tracks per each Track) |
|---|---|
| eBand Mode (Tracks) | Tracks: 2 (stereo) Simultaneously recording track: 2 (stereo) |
| LIVE REC Mode (Tracks) | Tracks: 2 (stereo) Simultaneously recording track: 2 Either the playback or the recording |
| Recording Media | SDHC Memory Card (4 GB to 32 GB) SD Memory Card (1 GB to 2 GB) |
| MTR Mode (Data Type) | Linear (Bit Depth: 16 bits) |
| eBand Mode (Data Type) | eBand Songs (Recording/Playback) WAV (Bit Depth: 16 bits, Playback only) MP3 (Bit Rates: 64 kbps to 320 kbps, Playback only) |
| LIVE REC Mode (Data Type) | WAV (Bit Depth: 16 bits, Recording/Playback) MP3 (Bit Rates: 64 kbps to 320 kbps, Recording/Playback) |
| AD Conversion | 24 bits |
| DA Conversion | 24 bits |
| Sample Rate | 44.1 kHz |
| Recording Time (Conversion In One Track) - MTR Mode | 3 hours (1 GB), 100 hours (32 GB) The above number of the MTR mode is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above |
| Recording Time (Conversion In One Track) - eBand Mode | eBand Song: 4 hours (1 GB), 130 hours (32 GB) WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB) MP3 128 kbps, stereo: 16 hours(1 GB), 550 hours (32 GB) The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created |
| Recording Time (Conversion In One Track) - LIVE REC Mode | WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB) MP3 128 kbps, stereo: 16 hours (1 GB), 550 hours (32 GB)| The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created |
| Nominal Input Level | GUITAR/MIC IN jack: -20 dBu (GUITAR/MIC SW = GUITAR), -40 dBu (GUITAR/MIC SW = MIC) LINE IN jack:-10 dBu |
| Input Impedance | GUITAR/MIC IN jack: 1M ohm (GUITAR/MIC SW = GUITAR), 6k ohms (GUITAR/MIC SW = MIC) LINE IN jack: 10k ohms |
| Nominal Output Level | PHONES/LINE OUT jack: -14 dBu |
| Output Impedance | PHONES/LINE OUT jack: 22 ohms |
| Display | Graphic LCD 128 x 64 dots (with backlit) |
| USB Functions | 24-bit/44.1 kHz USB-AUDIO (Hi-Speed USB) USB Mass Storage Class (Hi-Speed USB) BUS Power operation |
| Connectors | GUITAR/MIC IN jack (1/4" phone type) LINE IN jack (Stereo miniature phone type) PHONES/LINE OUT jack (Stereo miniature phone type) USB connector (mini-B type) DC IN jack |
| Power Supply | DC 9V: AC Adaptor (sold separately) Alkaline battery (AA, LR6) x 2 Rechargeable Ni-MH battery (AA, HR6) x 2 USB Bus Power Expected battery life: Approximately 6 hours (Alkaline dry cell batteries/with continuous playback of 8 tracks, power save function) May vary according to usage conditions, batteries used, and type of SD card used. |
| Current Draw | 130 mA (DC IN) |
| Accessories | SD Memory Card, USB Cable (mini-B type), Alkaline battery (AA, LR6) x 2, Owner's Manual |
| Dimensions | Width: 138 mm Depth: 86 mm Height: 22 mm |
| Weight | 140 g 0 lbs. 5 oz. |
