Boss Katana-Mini X Guitar Amplifier
Boss - Katana-Mini X, 10W Guitar Amplifier Combo with 5" Speaker and Built-In Effects
Mini Guitar Amplifier

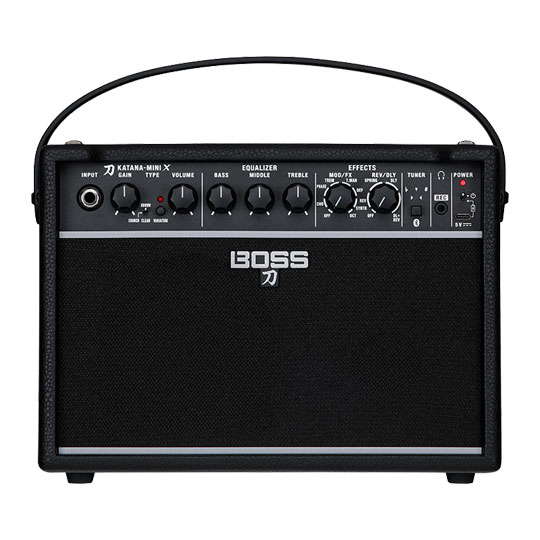

BOSS - Katana-Mini X
Inspiring Quality, Minimal DesignThe BOSS Katana-Mini X delivers renowned Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it features six versatile analogue sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also includes multiple enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.
The multi-stage analog gain circuit features a sophisticated, detailed design that produces highly expressive tones with immersive depth and dimension, supported by a sturdy wood cabinet and custom 5-inch speaker for a satisfying feel and rich low-end response. BOSS' no-compromise Tube Logic design approach brings you full-bodied sounds for every genre, including searing high-gain solo sounds and tight metal rhythm tones full of saturation and harmonic complexity.
At A Glance
• Inspiring Katana tone in a 10-watt mini amp
• Multi-stage analogue gain circuit developed with the acclaimed BOSS Tube Logic approach
• Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
• Three versatile amp types: Brown, Crunch, and Clean
• Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
• Three-band analogue tone stack for smooth sound adjustment
Classic Katana Tones
many variationsKatana-Mini X features versatile amp characters derived from the stage-class Katana amp series. Three core amp sounds are available, along with a tonal variation that’s accessible with a panel switch.
One variation is an uncolored clean sound for using Katana-Mini X with an acoustic-electric guitar or bass.
Your Daily Music Partner
take your music to the next levelKatana-Mini X comes a convenient rechargeable battery that allows you to move to different rooms or outdoor locations without the hassle of AC power. Bluetooth support lets you jam with music from your mobile device and use the amp as a portable speaker for casual music playback.
The onboard guitar/bass tuner is always at the ready with a quick button press. And when you wish to play quietly, you can plug in headphones and enjoy high-quality tones with built-in cabinet simulation and stereo effects.
Shape Your Sound
boss effectsKatana-Mini X features a traditional analogue tone stack for natural sound shaping using familiar bass, mid, and treble controls. MOD/FX and REV/DLY sections are also on hand.
Each feature a diverse range of BOSS effects and fast sound tweaks via single-knob controls that adjust multiple parameters at once. Both sections can be used simultaneously, letting you create combinations such as tremolo and spring reverb, phaser and delay, and many others.
BOSS Katana-Mini X | Inspiring Quality, Minimal Design
The Tech Spec
| Features | Specification | Rated Power Output | 10 W |
|---|---|
| Nominal Input Level | INPUT: -10 dBu (1 M ohm) |
| Speaker | 12 cm (5 inches) |
| Controls | POWER switch TYPE switch VARIATION button GAIN knob VOLUME knob [EQUALIZER] BASS knob MIDDLE knob TREBLE knob [EFFECTS] MOD/FX knob REV/DLY knob [TUNER/Bluetooth] TUNER/Bluetooth button |
| Indicators | POWER VARIATION TUNER/Bluetooth |
| Connectors | INPUT jack: 1/4-inch phone type PHONES/REC jack: Stereo miniature phone type 5 V (DC IN) port: USB Type-C(R) |
| Bluetooth | Profile Support: A2DP (Audio) |
| Power Supply | Rechargeable nickel-metal hydride battery |
| Current Draw | 1500 mA |
| Expected battery life under continuous use | Approximately 10 hours *These figures will vary depending on the actual conditions of use. |
| Battery charging time | Approximately 3 hours *To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher). |
| Accessories | MP3+Lyrics, MP3+G, KAR, MID |
| Audio Inputs | Leaflet "Read Me First" USB Type-C(R) to USB Type-A cable for charging |
| Dimensions | Width: 287 mm, 11-5/16 inches Height: 200 mm, 7-7/8 inches Depth: 145 mm, 5-3/4 inches |
| Weight (including strap) | 2.7 kg 6 lbs |
