Boss GM800 Guitar Synthesizer

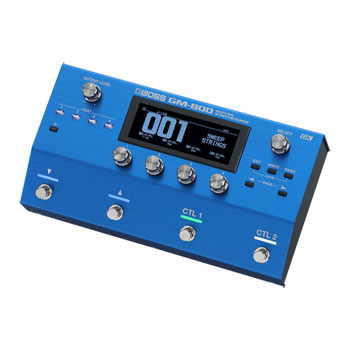

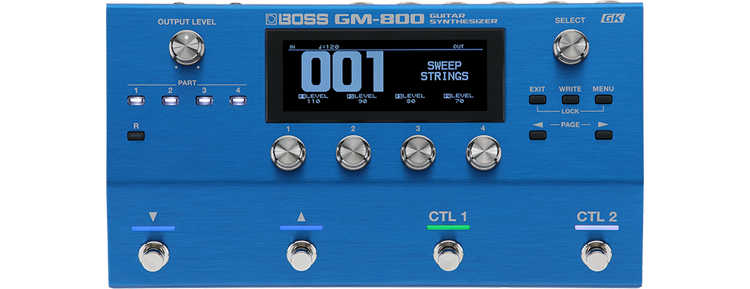

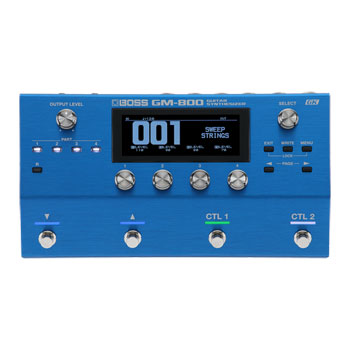

Boss GM-800 Guitar Synthesizer
- SCANPROTECT Protect against installation damage for 28 days. More info
BOSS - GM-800 Guitar Synthesizer
BOSS Guitar Synthesis Evolves with the Power of ZEN-CoreThe GM-800 elevates guitar synthesis into a new age of natural playability and boundless creative range. Driven by the newly developed Serial GK interface, the advanced ZEN-Core sound engine unlocks any sound imaginable—from acoustic instruments to classic and modern synths—while high-performance DSP delivers tracking stability and expressive scope never before possible.
Freely combine and edit Tones with the intuitive Scene workflow, color sounds with a huge selection of effects, and explore a universe of fresh content on Roland Cloud. Compact, streamlined, and ultra-versatile, the GM-800 infuses your guitar or bass with unlimited musical potential.
The Latest Milestone in Guitar Synth InnovationBOSS and its parent company Roland have been the worldwide leaders in guitar synthesizer innovation for nearly five decades, beginning with the revolutionary GR-500 system in 1977. The GM-800 continues our dedication to this category, providing guitar and bass players with powerful creative tools and access to sounds typically only available with keyboard-based instruments.
Expanding and elevating the concepts behind many historic Roland GR products, the GM-800 merges our latest pitch and string tracking advancements with a versatile, cutting-edge sound engine.
at a glance
• Next-generation guitar and bass synthesizer with the newly developed Serial GK interface
• Advanced ZEN-Core sound engine derived from flagship Roland synthesizers
• Natural playing feel and solid tracking stability, realized through high-performance DSP
• Powerful Scene workflow with four Tones plus Rhythm
• Vast onboard sound library with over 1200 Tones and 70 Rhythm sounds
• Explore Sound Packs, Wave Expansions, legendary Roland instruments, and more on Roland Cloud
• Deep editing tools for each Tone, including sound parameters, sensitivity settings, and more
• 150 user-configurable Scenes, including 100 Scenes with professional ready-to-play sounds
• Over 90 total effect types available in each Scene
• Space-saving design flows into every setup, from pedalboard to desktop
The Latest Milestone in Guitar Synth Innovation
leaders in guitar synthesizer innovationBOSS and its parent company Roland have been the worldwide leaders in guitar synthesizer innovation for nearly five decades, beginning with the revolutionary GR-500 system in 1977. The GM-800 continues our dedication to this category, providing guitar and bass players with powerful creative tools and access to sounds typically only available with keyboard-based instruments.
Expanding and elevating the concepts behind many historic Roland GR products, the GM-800 merges our latest pitch and string tracking advancements with a versatile, cutting-edge sound engine.
ZEN-Core InsideThe GM-800 is built around the expandable ZEN-Core Synthesis System, the sound source behind professional Roland products like the JUPITER-X and FANTOM keyboards, the ZENOLOGY software synthesizer, and many others. ZEN-Core is the most powerful synth engine in Roland’s long history, distilling decades of expertise into one sonically vast and deeply expressive creative instrument.
Why Choose The GM-800 Guitar Synthesizer?
Over 1200 Sounds at Your FingertipsThe ZEN-Core engine combines modern PCM synthesis and advanced modeling to bring you an infinite playground for sonic discovery. Play acoustic pianos, EPs, organs, and orchestral instruments. Tap into classic Roland synths like the JUPITER-8, JUNO-106, and many others. And combine them all together to build sounds never heard before.
Four Tones Plus RhythmThe GM-800 features four Tone parts plus a Rhythm part filled with acoustic and electronic percussion sounds. Call up a part with the dedicated panel buttons, then explore a deep array of synth parameters, pitch settings, alternate tunings, and string assignments to shape sounds to perfection.
Intuitive Scene WorkflowThe ZEN-Core workflow is based around Scenes, which are “super patches” containing every element in a sound: Tone selection, parameters tweaks, sensitivity and other play settings, effects, and more. And thanks to the muscular DSP, you can carry over the sound of the current Scene as you select a new one for seamless musical transitions. There are 150 user-configurable Scenes, and 100 come with pro sounds ready to play immediately.
Roland Cloud ExpansionThe GM-800 supports an ever-growing range of creative options through Roland Cloud. Stay inspired with ZEN-Core Sound Packs and Wave Expansions. And play the ZENOLOGY synthesizer and legendary Roland instruments in your DAW from your guitar or bass. You can start using Roland Cloud right away with a free Roland Account and access additional content via three paid membership levels. All plans start with a free 30-day Ultimate trial to experience everything Roland Cloud has to offer.
Massive Effects Power
vast tonal potential The GM-800 packs the full effects range of the modern ZEN-Core system. With an immense variety of effect types available in each Scene, you can shape, enhance, and mangle sounds to your heart’s delight.
Dedicated MFX for Each PartAlong with their sound-shaping parameters, every Tone and Rhythm part has a dedicated MFX processor. Each offers over 90 effect types, including distortions, filters, mod effects, delays, and more. Many selections include two effect types for additional sound-shaping control.
Scene and System EffectsWithin every Scene, you also get two additional FX for processing the combined sound, plus high-quality chorus/delay and reverb effects with independent send levels from each part. And with the Master Comp and EQ, you can shape the GM-800’s sound output for any recording or performance setup.
Unlimited Guitar Expression
advanced pitch detectionThe GM-800 lets you harness an endless variety of sonic textures using the expressive playing characteristics of your guitar and bass. Optimize the performance with continuous pitch control or chromatic operation. Layer Tones to create rich, combined voices. Or assign them to individual strings, such as a bass sound on the low strings and a piano or sax sound on the high strings. You can even assign Tones to specific fret ranges, a powerful new feature made possible with the GM-800’s advanced pitch detection.
Next-Generation Playability The GM-800 delivers accuracy, stability, and real-time playability standards that far exceed previous systems, realized through skilled BOSS engineering and a high-speed processor dedicated solely to tracking. Multiple velocity and feel parameters let you dial in the optimal response for every sound and style. For example, you can set a Scene with piano sounds to respond to every dynamic nuance—from soft to loud—while setting another Scene with vintage analog synth sounds to the fixed velocity response found in the original instruments.

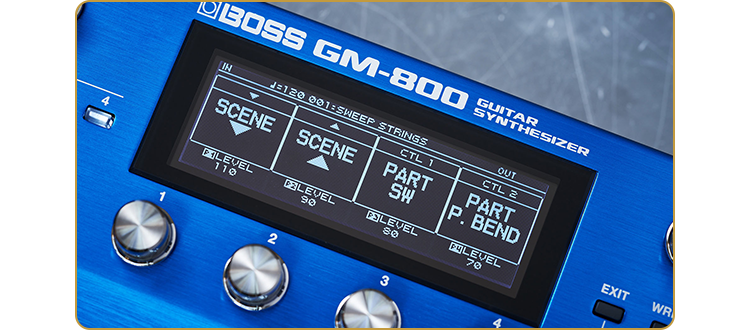

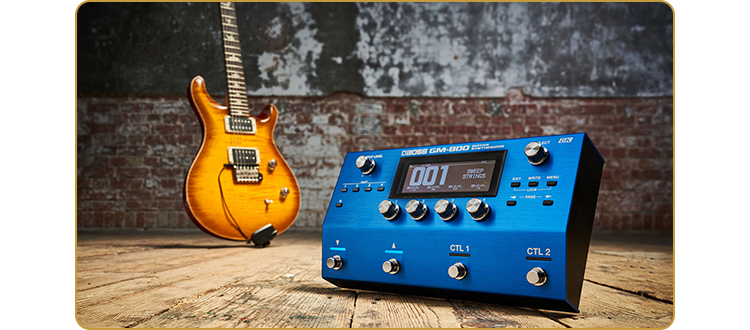

Compact PerformerThe streamlined GM-800 flows smoothly from desktop operation to installation on an advanced pedalboard. The four footswitches default to Scene selection and two unique control settings, such as pedal hold, pitch bend, or Tone selection. But you can freely assign them to control a variety of functions via a powerful Assign matrix.
Two external control jacks are also available, each supporting up to two footswitches or an expression pedal. And with five-pin MIDI I/O, you can interface with MIDI equipment from vintage to modern. s
The Tech Spec
| Features | Specification | Sound Generator | ZEN-Core |
|---|---|
| Parts | 5 parts (Play part: 4, Rhythm part: 1) |
| Tones | Preset tone: 1,200 or greater Preset Drum Kit: 70 or greater Import tone: 256 |
| Scenes | 150 |
| Effects | Part Multi-Effects: 1 system (for each part), 93 types Part EQ: 1 system (for each part) Reverb: 7 types Chorus/Delay: 9 types Scene MFX: 2 systems (Serial or Parallel selectable), 93 types Master EQ / Comp |
| Nominal Output Level | OUTPUT (L/PHONES, R/MONO): -10 dBu |
| Maximum Output Level | OUTPUT (L/PHONES, R/MONO): +7 dBu |
| Output Impedance | OUTPUT (L/PHONES, R/MONO): 44 ohms |
| Recommended Load Impedance | OUTPUT (L/PHONES, R/MONO): 10 k ohms or greater (Phones: 44 ohms or greater) |
| Controls | SCENE DOWN switch, SCENE UP switch, CTL1--2 switches PART1--4 buttons, PART R button, EXIT button, WRITE button, MENU button, PAGE buttons 1--4 knobs, SELECT knob, OUTPUT LEVEL knob |
| Display | Graphic LCD 256 x 80 dots |

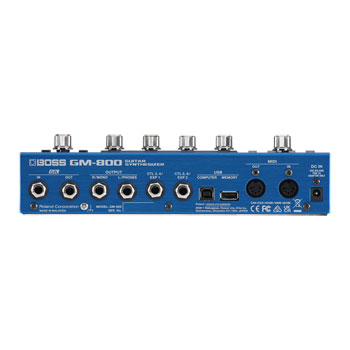

| Connectors | GK IN jack: 1/4-inch TRS phone type (for BGK cable only) GK OUT jack: 1/4-inch TRS phone type (for BGK cable only) OUTPUT (L/PHONES) jacks: 1/4-inch TRS phone type OUTPUT (R/MONO) jacks: 1/4-inch phone type CTL3, 4/EXP1 jack, CTL5, 6/EXP2 jack: 1/4-inch TRS phone type USB COMPUTER port: USB B type (supports High-Speed USB, USB Audio, and USB MIDI) USB MEMORY port MIDI connectors (IN, OUT) DC IN jack |
| External Memory | USB Flash drive (sold separately) |
| Power Supply | AC adaptor |
| Current Draw | 840 mA |
| Dimensions | 246 (W) x134 (D) x 63 (H) mm (without rubber foot) 9-11/16 (W) x 5-9/32 (D) x 2-31/64 (H) inches (without rubber foot) 246 (W) x134 (D) x 65 (H) mm (including rubber foot) 9-11/16 (W) x 5-9/32 (D) x 2-9/16 (H) inches (including rubber foot) |
| Weight | 1.2 kg |
| Accessories | AC adaptor (PSB-1U + AC Cord Set) Quick Start Leaflet "USING THE UNIT SAFELY" Rubber foot x 4 |
| Options (sold separately) | Divided pickup: GK-5 (for guitar), GK-5B (for bass guitar) Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m) GK converter: GKC-DA, GKC-AD Footswitch: FS-5U, FS-5L, FS-6, FS-7 Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5 AC adaptor (PSB-1U) (*1) *1 When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there. (PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A) |
