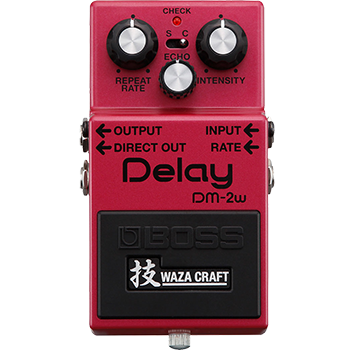

Boss DM-2W Delay Guitar Pedal
Boss DM-2W Delay Stompbox, Special Edition Waza Craft Edition
Email me when the availability or price changes
Frequently Bought Together
Boss - 'DM-2W' Waza Craft
Custom Analog Delay Pedal

Back With A Modern EdgeEver since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has continued to be a highly sought-after pedal by players across the world for its unique warm, analog delay tone. Now, the DM has returned! With the Waza Craft DM-2W, the coveted stomp has been recreated with changable sound modes and greater versatility for modern music styles. Made using 100-percent analog circuitry, the DM-2W’s Standard mode perfects the lush sound and 20-300 ms delay range of the original DM-2. Then onto Custom mode, this instantly changes the sound character to a cleaner analog tone with over twice the available delay time.
Amazing Features
• Custom mode provides warm-yet-clear delay sound and over twice the delay time
• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Standard mode for authentic DM-2 tone with 20-300 ms delay time
• Two output jacks allow separate output of delay and direct sounds
• Premium all-analog circuit with BBD (bucket brigade) delay line
• True reproduction of the vintage DM-2 Delay sound
The Art of Superior Tone

Waza CraftFrom the beginning, the engineers at BOSS have been dedicated to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, Boss have kindly introduced the new Waza Craft series.
Exeptional Sound & Response

Carefully-Selected ComponentsIn Japan, “Waza” is the term for art and technique, and these special edition pedals are a proud exampe and carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.
With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you incredible tone and touch response through carefully-selected analog components, refined circuitry, and incredible attention to detail.
DM-2W Delay WAZA CRAFT series

The Tech Spec
Features | Specification | Nominal Input Level | -20 dBu |
---|---|
Input Impedance | 1 M ohm |
Nominal Output Level | -20 dBu |
Output Impedance | 1 k ohm |
Recommended Load Impedance | 10 k ohms or greater |
Delay Time | Standard Mode: 20 ms to 300 ms Custom Mode: 40 ms to 800 ms |

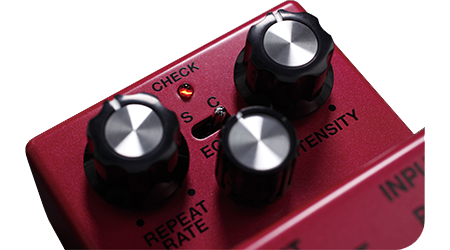

Controls | Pedal switch REPEAT RATE knob INTENSITY knob ECHO knob Mode switch |
Indicator | CHECK indicator (Serves also as battery check indicator) |
Connectors | INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type RATE jack: 1/4-inch TRS phone type DC IN jack |
Power Supply | Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately) |
Current Draw | 35 mA |
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) | Alkaline: Approx. 15 hours Carbon: Approx. 5 hours |
Accessories | Owner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61) |
Weight | Width: 73 mm Depth: 129 mm Height: 59 mm |
Weight | 460 g / 1 lbs. 1 oz. |
