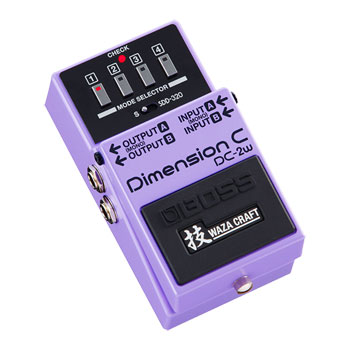

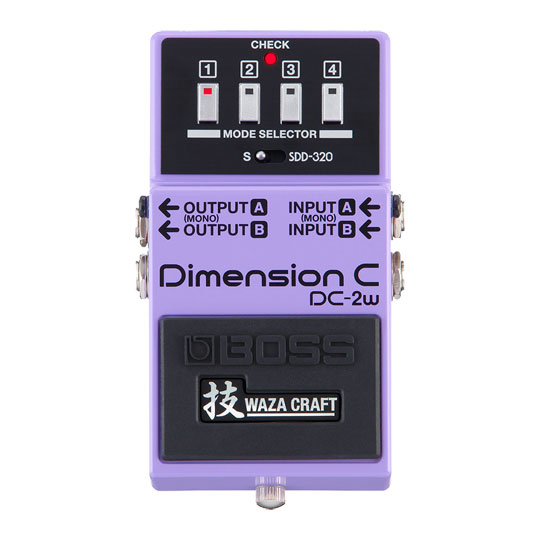

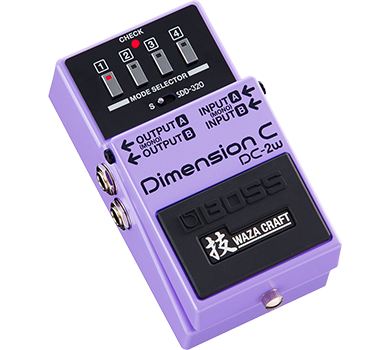

BOSS DC-2W Waza Craft Dimension C Effect Pedal

BOSS DC-2W Waza Craft Dimension C with SDD-230 Mode, Made In Japan

Thumbnail 1 : BOSS DC-2W Waza Craft Dimension C Effect Pedal Thumbnail 2 : BOSS DC-2W Waza Craft Dimension C Effect Pedal Thumbnail 3 : BOSS DC-2W Waza Craft Dimension C Effect Pedal
Scan code: LN134077 Manufacturer code: DC-2W
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 14 JulIn stock
From £17.58 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £17.58
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £194.00
Total inc. interest: £210.90
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Waza Craft Dimension C Effect Pedal


enhanced width and depth of any soundThe genuine BOSS and Roland Dimension effect is back, and more versatile than ever! Designed with premium Waza Craft analogue fashion, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based around. The DC-2W features the same simple four-button preset interface as the original ‘80s-era effects, now enhanced with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly renowned by musicians and audio engineers, the Dimension’s unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with total sonic authenticity.

Amazing Features • Standard mode provides the sound of the original DC-2 Dimension C pedal
• SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D
• Four main sounds in each mode, plus six variations by pressing two switches together
• Premium buffer and enhanced bypass circuitry
• Made in Japan

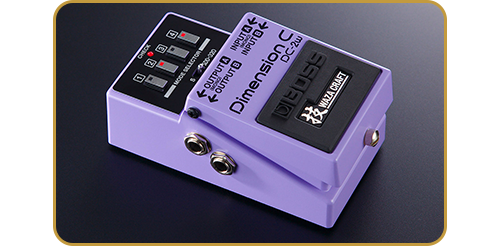

Premium Waza Craft Pedal with All-Analogue Audio Circuitry


Enhance Your Sound with Natural Width and DepthThe vintage Dimension effect is known for its innovative 3D spatial processing that just makes everything sound a little better. It’s often mistakenly named a chorus effect, but it’s isn't. Though time-based like a chorus, the Dimension’s circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, subtly enriching any instrument or mix without making it sound overly processed.

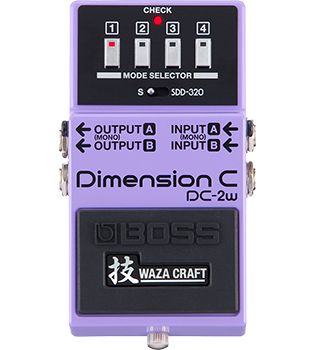

Four Switches, Expanded Sonic PossibilitiesJust like the original Dimension effects, the DC-2W offers a simple and direct interface with four preset switches that provide sonic variations with increasing width and depth. While the originals had mechanical switches, the DC-2W features modern electronic switches and status LEDs for more solid performance. The new switches also allow you to press two at once to access a variety of additional sounds. Across the DC-2W’s two effect modes (S and SDD-320), 20 different Dimension variations are possible with just four switches.

Authentic Tones with Modern RefinementsIn true Waza Craft tradition, the DC-2W delivers vintage analogue tones with modern design refinements for enhanced performance and versatility. Together with the new electronic mode switches, the pedal features a newly designed internal bypass circuit that greatly improves on that found in the original DC-2. Versatile I/O also enables the pedal to blend in with any mono or stereo rig, from regular guitar setups to audio interfaces and studio mixing consoles. Just all Waza Craft pedal models, the DC-2W includes a premium buffer circuit for ultra-transparent tone when the pedal is switched off.

Waza Craft: The Art of Superior ToneSince the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from vintage analogue circuits to high-tech DSP. This enthusiastic passion continues on with the Waza Craft series, which brings you incredible tone and touch response through carefully selected analogue components, refined circuitry, and meticulous attention to detail. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

A Studio Legend


The Roland SDD-320 Dimension DShortly quickly after its debut in 1979, the Roland SDD-320 Dimension D became a go-to secret weapon for audio engineers and music producers around the world. Heard on countless classic records of all styles, and still regularly used today. From guitars, electric pianos, and synths to strings, backing vocals, and more, the Dimension D injects instant spatial mojo and sonic glue without creating an obvious “effect” sound.

The DC-2W’s SDD-320 mode fully captures the original Dimension D vibe in every way. Several engineers like to press multiple buttons on the Dimension D rack for new and different sounds. But in truth, only two actual sound variations are technically possible with this undocumented feature. With its modern switching, the DC-2W’s SDD-320 mode enables six sound variations when two buttons are pressed, including four “in-between” sounds and two all-new voices.

3D Sound In A Compact Pedal


The BOSS DC-2 Dimension CDebuted in 1985, the DC-2 Dimension C pedal brought the Dimension D’s distinctive spatial effect to the BOSS compact pedal format. While the Dimension D was designed as a studio effect that supported either mono or stereo input sources, the DC-2 was specifically created for mono sources like guitar, and features a modified circuit that produces a Dimension effect with a slightly different tonal character.

When S (Standard) mode is selected, the DC-2W delivers the exact sound of the original DC-2 pedal. Despite players trying, pressing multiple buttons on the DC-2 didn’t actually create any sound variations. Similar to SDD-320 mode, pressing two buttons at once in the DC-2W’s S mode provides access to six different “in-between” sounds not available on the original DC-2.

BOSS DC-2W Dimension C Sound Examples

The Tech Spec

Features Specification
Modes S (Standard)
Nominal Input Level -20 dBu
Input Impedance 2.2 M ohms
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls Pedal switch
S/SDD-320 switch
MODE SELECTOR [1]--[4] buttons
Indicators CHECK indicator (Serves also as battery check indicator)
MODE SELECTOR [1]--[4] indicators
Connectors INPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type

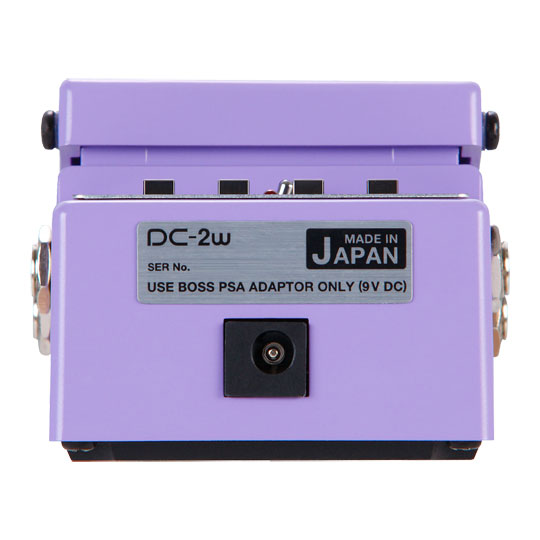

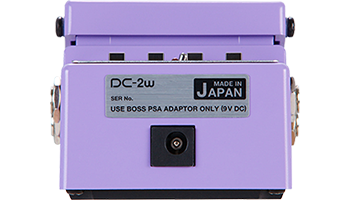

DC IN jack
Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw 65 mA
Expected battery life under continuous use Alkaline: Approx. 6 hours (will vary depending on the actual conditions of use)
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Dimensions Width: 73 mm, 2-7/8 inches
Height: 59 mm,2-3/8 inches
Depth: 129 mm, 5-1/8 inches
Weight (including battery) 450 g
1 lb
Voltage 9 Volts
Current 65 mA
Battery Compartment Yes
Output Channels Stereo
Dimensions 73 x 59 x 129 mm (W x H x L)
Passive Pedal No
Additional Information
Scan Code LN134077
Model Number DC-2W
GTIN 4957054513528
