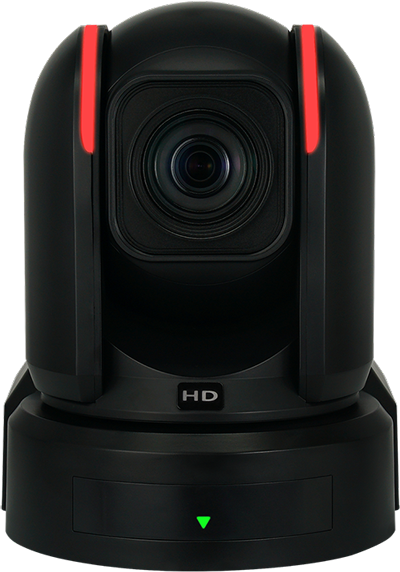

Bolin R9-230NX FHD NDI HX3 PTZ Camera
Bolin R9-230NX FHD NDI HX3 PTZ Camera, 1080p60, 30x Zoom, NDIHX3, 12GSDI/HDMI/RJ45
Email me when the availability or price changes
Finance this product
- From £122.82 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £108.80 / month (APR 15.9%)
Suggested Alternatives
Bolin R9-420F PTZ Camera, Black, 4K60, 20x Zoom, 12GSDI/HDMI/RJ45Bolin R9-420F 4K60 PTZ Camera (Black)
LN163018
No customer review

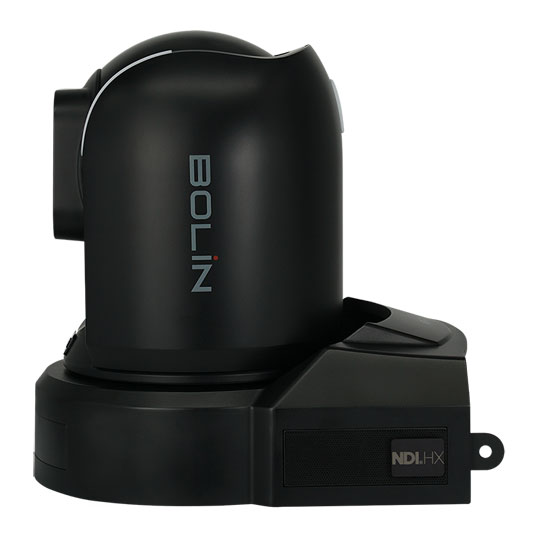

Bolin - 'R9-230NX FHD NDI HX3 PTZ Camera'
Precision Full HD PTZ CameraThe Bolin R9-230NX FHD NDI HX3 PTZ Camera is a cutting-edge professional camera designed for broadcast, live production, and AV applications, delivering exceptional Full HD video quality with advanced low-light performance. Equipped with a Sony 1/1.8-inch STARVIS II sensor and a 30x high-resolution optical zoom lens, it provides crisp, accurate images even in challenging lighting conditions. Featuring super image stabilisation, multiple simultaneous outputs including NDI HX3, HDMI, and 3G-SDI, plus support for protocols like FreeD for VR/AR applications, the R9-230NX offers versatile connectivity and smooth, precise PTZ operation. Its robust feature set makes it suitable for high-demand professional environments ranging from studios and live events to medical facilities.
Full HD

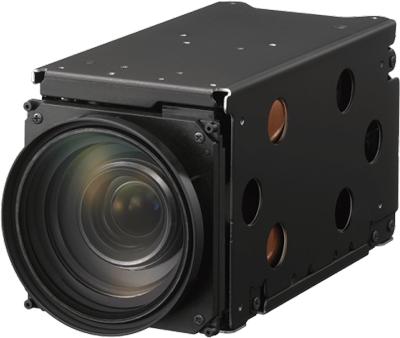

Sony image blockR9-230NX NDI PTZ camera equipped with the latest Sony new colour camera block that achieves higher visibility by adopting the 8M ultra high resolution lens, 4M image sensor (1 / 1.8 type), and ISP from Sony. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.
• 1/1.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X 8M High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in colour performance
• Super image stabilizer
High Resolution-Day LightThe 8M compatible lens, 4M image sensor (1 / 1.8 type), and ISP all use new devices from Japanese manufacturers. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

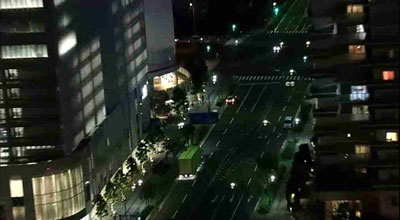

Advanced AF performanceSony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has an algorithm designed to minimise defocusing in difficult conditions, especially in dark environments.

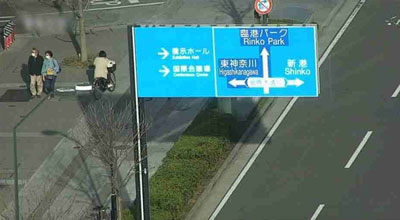

30x enhanced optical zoomIn pursuit of high image quality and a 1 / 1.8-inch sensor, we have introduced a 30x enhanced optical zoom with a combination zoom of an 8M compatible lens and a 4M image sensor. Beautiful images can be obtained not only at the Wide end, but also at the Tele end, where the effects of reduced resolution and aberrations are easily visible.

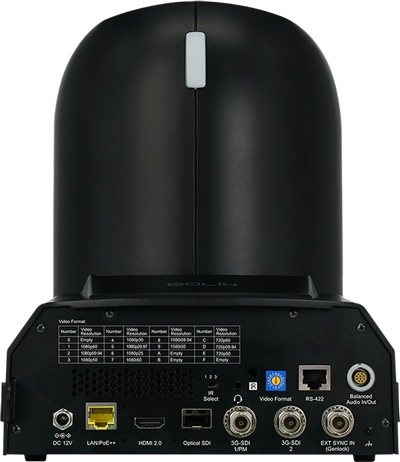

R9-230NX Output Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP RTMP RTMPS SRT
Dual 6G-SDI
HDMI 1.4
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI & SDI Full Format• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard•SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Video Format• H.264/H.265
• 1920x1080P 60/59.94/50/30/29.97/25
• 1280x720P 60/59.94/50
NDI Streaming

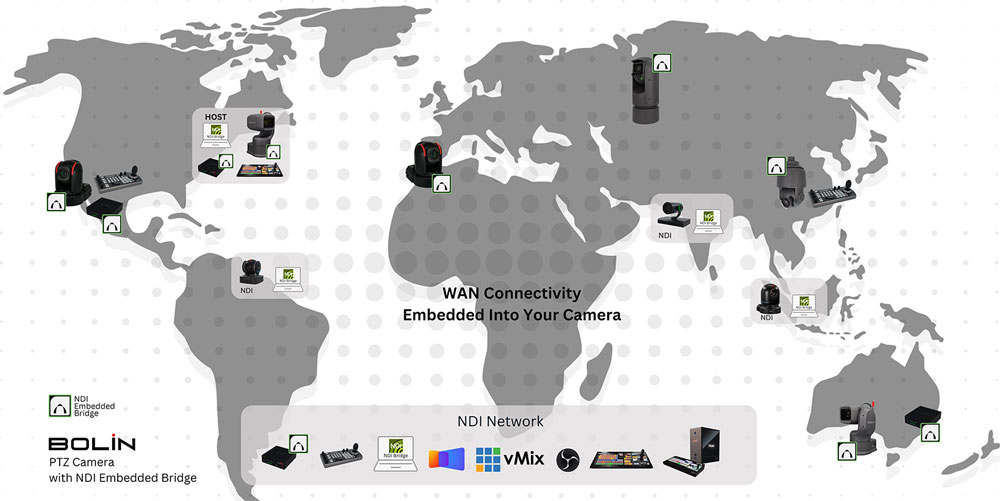

Bolin PTZ Camera With NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
R9-418N NDI PTZ Camera offers high-quality, low-latency NDI High Bandwidth (and NDI HX3) streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
• FreeD protocol for virtual reality production system

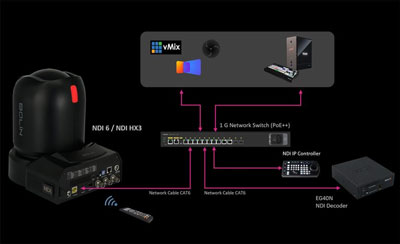

Control• IP Control
• Serial Control
• IR Remote Control
• Rest API
• NDI
• VISCA Over IP
• FreeD Supported
Other Features
unique portable body design• On-screen character generator
• All firmware upgrade via IP
• Front and rear Tally Light
• POE++ and 12VDC/AC
• Built-in handle
• Genlock
• HDMI cable secure mount
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
IEC 60601-Certified Medical GradeIEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential. Its large 1" sensor and true 4K resolution provide the clarity and detail needed for surgical video capture, clinical observation, and live medical training. Designed for integration into professional AV systems, it supports workflows commonly used in hospitals, teaching institutions, and telemedicine platforms.
