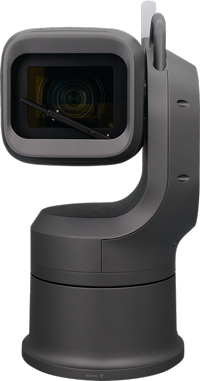

Bolin EXU230NX Outdoor NDI HX3 PTZ Camera
Bolin EXU230NX Outdoor NDI HX3 PTZ Camera, 1080p60, 30x Zoom, NDIHX3, 3GSDI/HDMI/RJ45
Email me when the availability or price changes
Finance this product
- From £225.51 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £199.76 / month (APR 15.9%)
Suggested Alternatives
Bolin R9-420F PTZ Camera, Black, 4K60, 20x Zoom, 12GSDI/HDMI/RJ45Bolin R9-420F 4K60 PTZ Camera (Black)
LN163018
No customer review
Bolin - 'EXU230NX Outdoor NDI HX3 PTZ Camera'
Unleash Broadcast Power AnywhereThe Bolin EXU230NX Outdoor NDI HX3 PTZ Camera sets a new standard for professional outdoor video capture, combining rugged durability with uncompromising image quality and advanced IP workflows. Featuring Sony’s latest 1/1.8-inch STARVIS II sensor, an enhanced 30X optical zoom UHD lens, and super image stabilisation, the EXU230NX excels in both daylight and extreme low-light environments, delivering Full HD (1080p60) colour images with remarkable clarity, even in challenging weather and lighting conditions. Its support for simultaneous video outputs—including NDI HX3, HDMI, 3G/6G/12G-SDI, and Optical SDI—makes it an ideal solution for demanding live productions, sports broadcasting, and virtual events where reliable, flexible, and high-quality video is essential.
Full HD

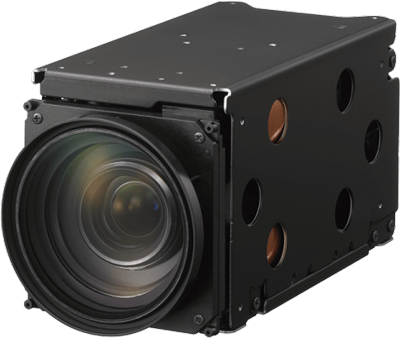

Sony image blockEXU230NX NDI HX3 PTZ camera equipped with the latest Sony new colour camera block that achieves higher visibility by adopting the 8M ultra high resolution lens, 4M image sensor (1 / 1.8 type), and ISP from Sony. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.
•1/1.8 inch STARVIS II sensor
•Enhanced High Resolution image quality
•30X 8M High Resolution optical zoom lens
•Advanced AF performance, Spot Focus · Spot AE · Spot AWB
•Wide Dynamic Range (Wide-D)
•Visibility Enhancer (VE)
•Super low light in colour performance
•Super image stabiliser
High Resolution-Day LightThe 8M compatible lens, 4M image sensor (1 / 1.8 type), and ISP all use new devices from Japanese manufacturers. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.
Advanced AF performanceSony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has an algorithm designed to minimise defocusing in difficult conditions, especially in dark environments.
30x enhanced optical zoomIn pursuit of high image quality and a 1 / 1.8-inch sensor, we have introduced a 30x enhanced optical zoom with a combination zoom of an 8M compatible lens and a 4M image sensor. Beautiful images can be obtained not only at the Wide end, but also at the Tele end, where the effects of reduced resolution and aberrations are easily visible.

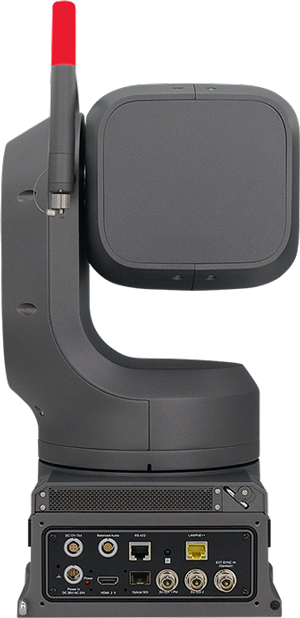

EXU230NX Output Interface
NDI HX3
NDI 6 Ready
NDI Embedded Bridge
RTSP RTMP RTMPS SRT
Dual 6G-SDI
HDMI 1.4
SFP Optical SDI
Genlock
True Dual Output
XLR Broadcast audio
FreeD
Serial/NDI Control
HDMI & SDI Full Format• 1920x1080P 60/59.94/50/30/29.97/25/24/23.98
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard•SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Video Format• H.264/H.265
• 1920x1080P 60/59.94/50/30/29.97/25
• 1280x720P 60/59.94/50
NDI Streaming
Bolin PTZ Camera With NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
EXU230NX Outdoor NDI PTZ Camera offers high-quality low latency NDI HX3 streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ
FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

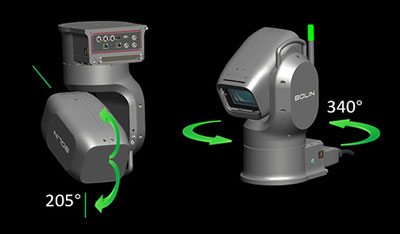

PTZ Movement-Smooth, Accurate and Quiet• PAN: 340° (-170° to +170°); Fully proportional, speed 0.08° to 60°/s
• TILT: 205° (-30° to +90°); Fully proportional, speed 0.08° to 60°/s
• Preset: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
Control• IP Control
• Serial Control
• IR Remote Control
• Rest API
• Visca Over IP
• NDI Control
• FreeD Supported

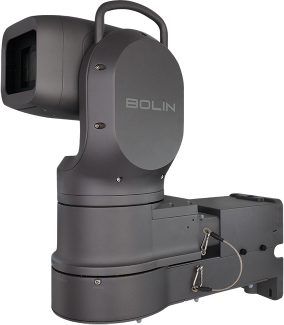

Other Features
Outdoor PTZ• On-screen character generator
• All firmware upgrades via IP
• Tally Light
• POE++ and 36VDC/24VAC
• Power Output: 12VDC
• Dark Grey/White
• NDAA Compliant
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorisation Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.

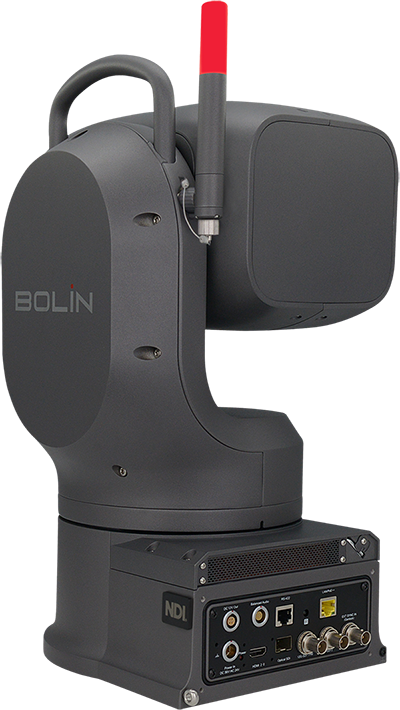

Tally Light• 360 degrees viewable tally light
• Removable when tally light is not required
Rugged And Durable
Extreme Weather Survival• Wind Load Durability, steady operational and non-destructive at 30-60 m/s or less
• Heater and Defroster built-in
• –40 °C to 60 °C (-40°F to 140°F) operational
Hidden-Type Rain Wiper and Sun Shield
All Stainless Steel/brass/metal interior mechanical parts
Entire body IP67 rated dustproof and waterproof
