Bolin EX1030NX Outdoor NDI HX3 PTZ Camera
Bolin EX1030NX Outdoor NDI HX3 PTZ Camera, 1080p60, 30x Zoom, 3GSDI/RJ45
Email me when the availability or price changes
Finance this product
- From £200.47 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £177.58 / month (APR 15.9%)
Suggested Alternatives
Bolin N7-220X NDI HX3 PTZ Camera, 1080p60, 20x Zoom, 3GSDI/HDMI/RJ45Bolin N7-220X NDI HX3 PTZ Camera
LN163013
No customer review
Bolin - 'EX1030NX Outdoor NDI HX3 PTZ Camera'
Unrivaled Outdoor PTZ PowerThe Bolin EX1030NX Outdoor NDI HX3 PTZ Camera sets a new standard for high-performance outdoor video capture, featuring Full HD NDI streaming, ultra-low latency, and a robust IP67-rated housing built to withstand water, wind, salt air, and snow. Engineered for broadcast-quality imaging and live production, the EX1030NX features a Sony 1/2.8-inch STARVIS 2 CMOS image sensor and a powerful 30x optical zoom, delivering exceptional clarity and superb low-light performance at any time of day. With continuous 360° pan and 180° tilt movement, the NDI Embedded Bridge enables seamless remote production, and FreeD protocol support facilitates AR/VR applications. This advanced PTZ solution delivers stability, flexibility, and plug-and-play operation for demanding environments and professional workflows.
Full HD

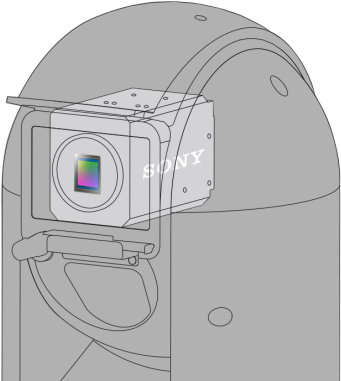

Sony image blockEX1030NX Outdoor NDI HX3 PTZ camera equipped with the latest Sony 1/2.8-type Full HD colour image sensor. Full HD offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.
• 1/2.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in colour performance
• Super image stabiliser
High Resolution-Day/Night LightThe combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.
Super image stabilizationThe blur suppression has been greatly improved from the conventional stabiliser function, and high-definition movies with less blur can be shot even in a harsh environment with large vibrations. Equipped with two modes, "Super" and "Super + (plus)".
Advanced AF performanceSony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).
30x enhanced optical zoomIn pursuit of high image quality, with a 30x enhanced optical zoom, beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.
Wide-D modeWide-D mode is a function that enables image acquisition in which portions ranging from dark to light can be recognized, even when capturing a subject with a wide intensity range created by backlit or includes extremely light regions of interest.
Jero effect correctionIn electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.
EX1030NX Output Interface
SDI Format• 1920x1080P 60/59.94/50/30/29.97/25
• 1920x1080i 60/59.94/50
• 1280x720P 60/59.94/50
SDI Standard•SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s)
• With SMPTE352 SDI Metadata Supported
NDI Video Format• NDI HX3
• 1920x1080P 60/59.94/50/30/29.97/25
• 1280x720P 60/59.94/50

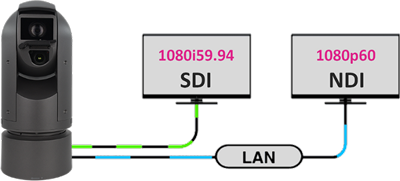

True Dual-OutputSimultaneously output SDI, and NDI HX3, which can be set to independent formats for different application use.
NDI Streaming
Bolin PTZ Camera With NDI Embedded BridgeNDI Bridge revolutionises remote media production by eliminating traditional geographical limitations and facilitating seamless connectivity, collaboration, and content creation from any global location.
With Bolin's NDI Embedded Bridge PTZ cameras and decoders, the devices send and receive encrypted NDI streams over WAN from any location globally. With one device running the embedded bridge, all NDI streams on a network can be sent and received. With NDI embedded devices, no complex setups are required, and configurations can easily be done ahead of time for plug-and-play operation in the field.
Bolin's NDI PTZ cameras with NDI Embedded Bridge provide real-time collaboration, robust security, and a seamless user experience for remote production and broadcast, virtual events, and content creation.
It essentially allows individuals or teams from multiple locations to share, send, and receive high-quality, low-latency video, audio, and metadata streams, and control across the globe.
EX1030NX Outdoor NDI HX3 PTZ Camera offers high-quality low latency NDI HX3 streaming with NDI Embedded Bridge and NDI 6 ready for live and remote production.
PTZ

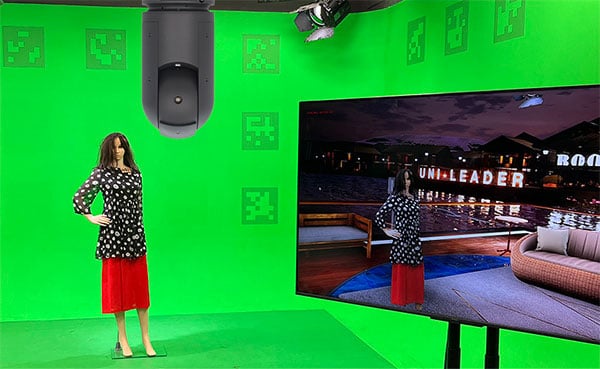

FreeD Protocol Integrated for VR/AR Video ProductionFreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.
FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.
PTZ Movement-Smooth, Accurate and Quiet• PAN: 360° (-170° to +170°); Fully proportional, speed 0.05° to 100°/s
• TILT: 180° (-45° to +135°); Fully proportional, speed 0.01° to 100°/s
• Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Auto-Flip
• Quietness less than NC35
• Smooth and Accurate Movement
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction

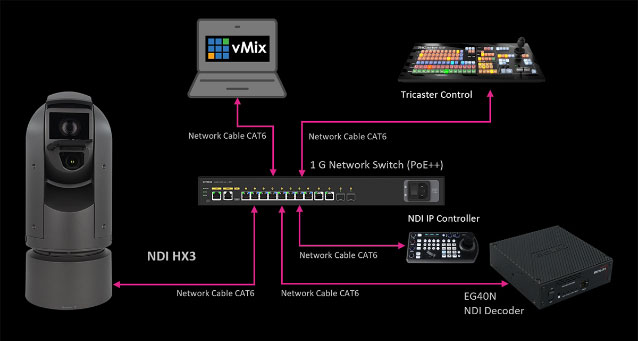

Control• IP Control
• Serial Control
• Rest API
• NDI
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD
Other Features

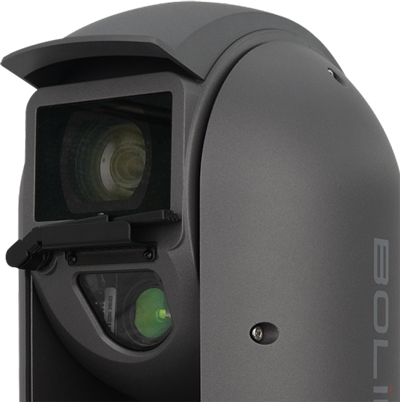

EX1030 Gen 3rd Upgraded• New Sony Image Block
• Expanded 255 VISCA Steps for finer PT Movement and Control Accuracy
• New Adjustable Roll-Axis
• FreeD Control Protocol Enabled
• Image Character Generator
• Added Rain Wiper
• Environment Temperature Sensor
• Quick Install and Release Mount

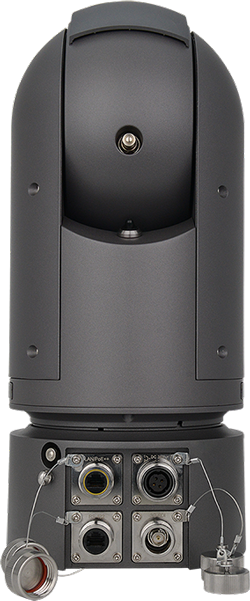

• Waterproof Back Panel Connection
• Salt Corrosion Resistant C5 Level Coated
• NDAA Compliant
Equipped with New Sony Image Block• Full HD STARVIS II Sensor
• Enhanced High Resolution Image Quality
• 30X High Resolution Optical Zoom Lens
• Advanced AF Performance
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super Low Light in Colour Performance
• Super and Super+ Image Stabiliser

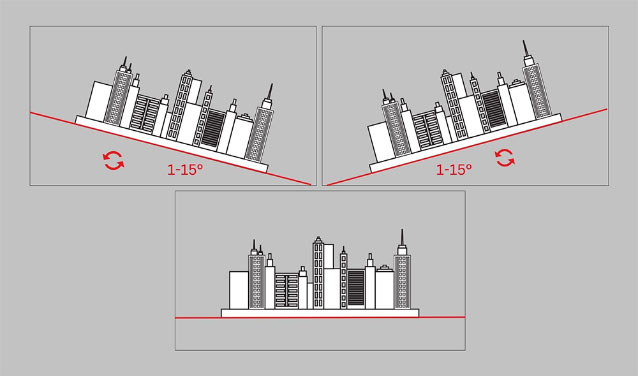

Roll-Axis Functionality• Pan, Tilt, Zoom, + NEW Roll Axis
• Roll-Axis Adjustment
• 1-15° horizontal adjustment capability allows to image to be leveled with the horizon and/or subject, or to capture unique angle
Bolin Product NDAA CompliantBolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defence Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
Rugged And Durable
IP67 Rated• Made for Extreme Weather Conditions
• Dustproof and Waterproof IP67 Rated
• Nitrogen-filled to keep inside free of moisture and condensation
• Wind Load Durability, Non-Destructive and Steady Operation at 60 m/s or less
• –30 °C to 60 °C (-22°F to 140°F) Operational
Installation Mount Options

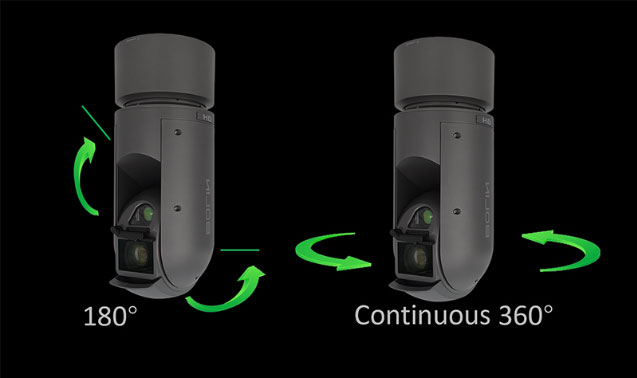

360° Range of The Aerial ViewEX1030NX Outdoor PTZ camera features 360° horizontal continuous rotation and vertical 180° rotation with auto-flip. Based on the upright installation, the camera provides a 360° range of the aerial view.
• Quick-release docking system
• Wall Mount: Use IP67 Wall Mount Bracket (ES-WM)
• Upright Mount: Mounting Base (QR-BM)
• Pendant Mount: Drop Ceiling Pendant Mount System (C-PMSB) + Pendant
• Mount Base Adaptor (C-PMBA)
