Large-diaphragm Condenser Microphone
Austrian Audio - OC818 (Studio Set)

Austrian Audio OC818 Studio Set

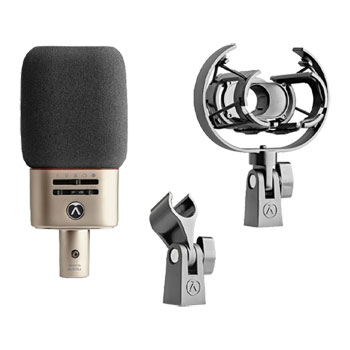

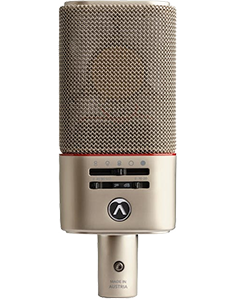

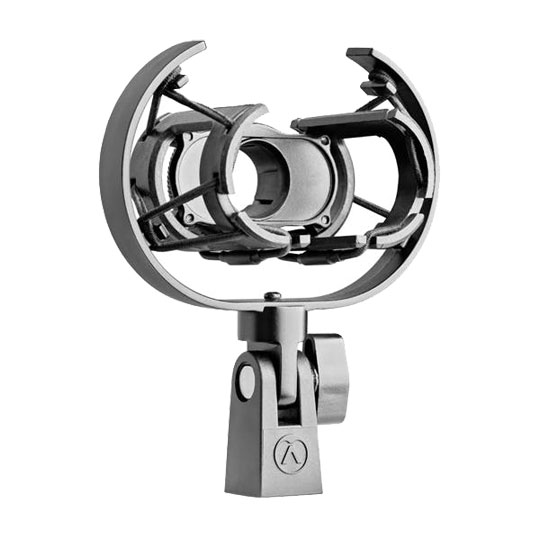

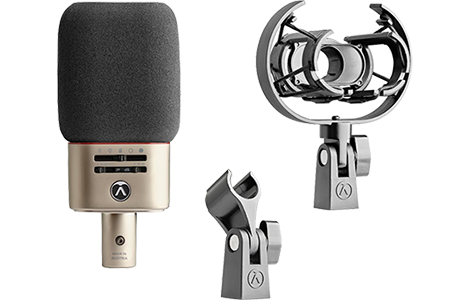

The new viennese originalThe Austrian Audio OC818 is engineered and manufactured in Austria and is Austrian Audio’s premier, professional, large diaphragm microphone. Featuring high sensitivity, low self-noise and the ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling. This studio set comes complete with a pop shield, shock mount and mic clip.

13 mV/PaSensitivity

20Hz - 20kHzFrequency Range

148 dBMax. SPL

Amazing Features • Handmade CKR12 ceramic capsule, made to the same critical dimensions as the classic CK12 capsules
• Cardioid, omnidirectional & custom programmable polar patterns
• 40 Hz, 80 Hz, 160 Hz analogue high-pass filters
• Microprocessor control of polarisation voltages

The Heart of the OC818

CKR12 Ceramic Capsule

CKR12 Ceramic CapsuleAustrian Audio never cut corners with the design and components of their microphones. Every CKR12 ceramic capsule is handmade in-house at their facility in Vienna and are now developing the next generation of transducer and microphone builders to serve our expanding customer-base.

OC818 & OC18. Made in Vienna. Again!
Handmade Capsules and Mics Made in Vienna.

The Tech Spec

Features Specification
Directional characteristic Multi
Polar pattern Cardioid, omnidirectional, figure-8, hypercardioid & custom programmable
Frequency range 20 Hz - 20 kHz
Sensitivity (all directions) 13 mV/Pa
Equivalent noise level 9 dB (A)
Max SPL 148 dB SPL (158 dB SPL)
Switchable pad -10 dB, -20 dB
Analogue Low Cut filter 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
Impedance 275 Ω (symmetrical)
Load impedance > 1 kΩ
Supply voltage 48 V (< 4mA, typical 2.1mA)
Connectors XLR 3 pin
Or remote: Mini XLR 5 pin Connector for back membrane
Dimensions 157 x 63 x 35 mm
Weight 360g
Specifications
Type Condenser
Polar Pattern (Direction)
  • Bi-directional (Figure 8)
  • Cardioid
  • Hypercardioid
  • Omnidirectional
Sensitivity 13 mV/Pa
Frequency Response 20 Hz - 20 kHz
Wired / Wireless Wired
Connectors
  • 1 x 3 Pin XLR
  • 1 x Mini XLR
Weight 360 g
Including Shock Mount Yes
Including Pop Shield Yes
Including Mic Clip Yes
Powered By Non-powered
Additional Information
Scan Code LN127802
Model Number AUA0002
GTIN 9120097810021
