Austrian Audio - OC818 Large-diaphragm Condenser Microphone (Studio Set) - Black & OCR8 Adaptor
Austrian Audio - OC818 Studio Set, Large-diaphragm Condenser Microphone (Black) + OCR8 Bluetooth Adaptor
- By DPD On 1st Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Large-diaphragm Condenser Microphone & Bluetooth Adaptor/Remote Bundle
Austrian Audio - OC818 (Studio Set) - Black &
Austrian Audio - OCR8 Bluetooth Remote

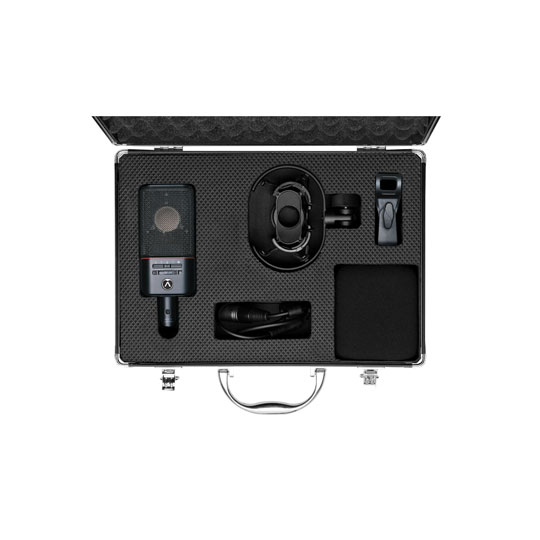

The full packageThe Austrian Audio OC818 is a professional, large diaphragm microphone, capable of handling everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. This studio set comes complete with a pop shield, shock mount and mic clip.
This bundle also comes with an Austrian Audio OCR8 Bluetooth Remote for OC818, which is attatched to the rear of the microphone to allow for wireless pattern and switching control. Together, this set will give you professional quality recording for multiple applications, with ease of use and ultimate versatility.

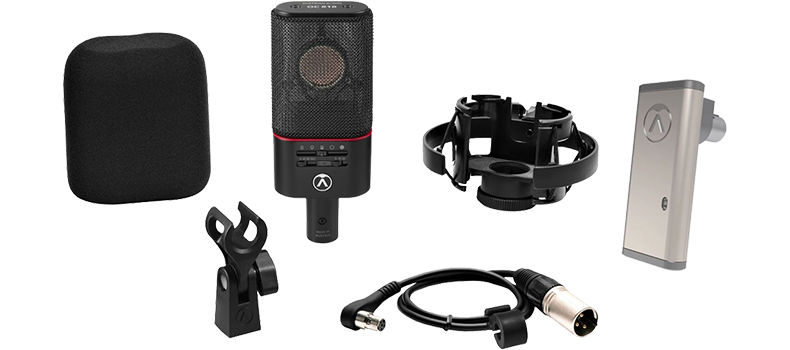

What's Included?
• 1 x Austrian Audio OC818 Large-diaphragm Condenser Microphone (Studio Set) - Black
• 1 x Austrian Audio - OCR8 Bluetooth Remote for OC818

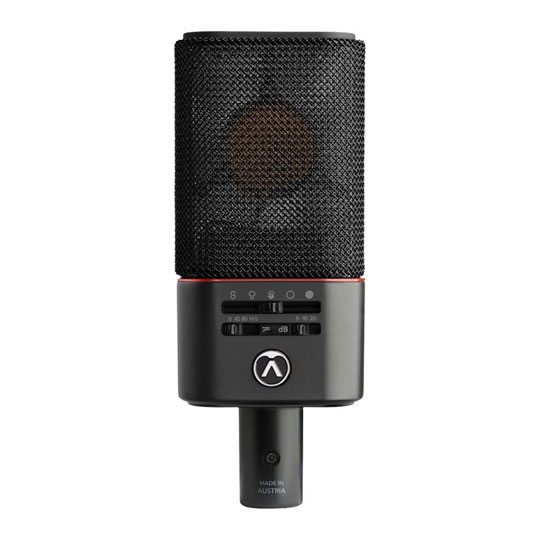

Large-diaphragm Condenser Microphone
Austrian Audio - OC818 (Studio Set) - Black
The new viennese originalThe Austrian Audio OC818 is engineered and manufactured in Austria and is Austrian Audio’s premier, professional, large diaphragm microphone. Featuring high sensitivity, low self-noise and the ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling. This studio set comes complete with a pop shield, shock mount and mic clip.
13 mV/PaSensitivity
20Hz - 20kHzFrequency Range
148 dBMax. SPL
Amazing Features
• Handmade CKR12 ceramic capsule, made to the same critical dimensions as the classic CK12 capsules
• Cardioid, omnidirectional & custom programmable polar patterns
• 40 Hz, 80 Hz, 160 Hz analogue high-pass filters
• Microprocessor control of polarisation voltages
The Heart of the OC818
CKR12 Ceramic CapsuleAustrian Audio never cut corners with the design and components of their microphones. Every CKR12 ceramic capsule is handmade in-house at their facility in Vienna and are now developing the next generation of transducer and microphone builders to serve our expanding customer-base.

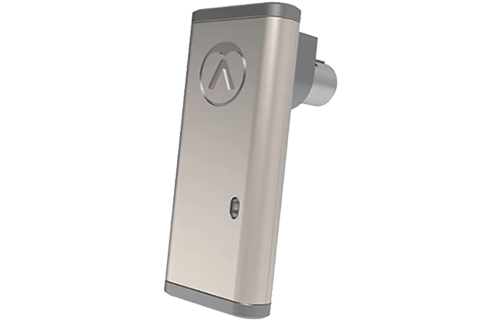

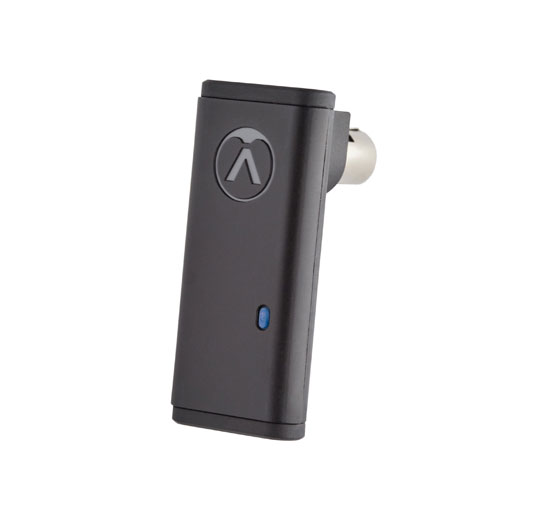

Bluetooth Remote for OC818
Austrian Audio - OCR8
BLUETOOTH ADAPTOR FOR OC818 MICROPHONEAustrian Audio’s OC818 is the very first multi-patterned mic to boast the world’s first wireless pattern and switching control thanks to the optional transmitter/receiver (OCR8) which is able to be swiftly attached to the rear of the mic.
This unique feature allows for a previously unheard of 255 discrete polar patterns between figure-of-eight, through all of the cardioid versions and into omnidirectional. The free control software, PolarPilot, will be available for iOS and Android. This all occurs in the analogue domain and there is no processing or conversion of the mic’s signal to digital.
at a glance
• Free PolarPilot app (Android and iOS) allows wireless control over your analogue: patterns, high-pass and pad in real-time via BlueTooth
• Save, recall, and share favourite settings
• Discover and create 255 discrete polar patterns.
• Wireless control from the comfort of your chair!
OC818 & OC18. Made in Vienna. Again!
Handmade Capsules and Mics Made in Vienna.
OC818 Tech Spec
| Features | Specification | Directional characteristic | Multi |
|---|---|
| Polar pattern | Cardioid, omnidirectional, figure-8, hypercardioid & custom programmable |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity (all directions) | 13 mV/Pa |
| Equivalent noise level | 9 dB (A) |
| Max SPL | 148 dB SPL (158 dB SPL) |
| Switchable pad | -10 dB, -20 dB |
| Analogue Low Cut filter | 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below) |
| Impedance | 275 Ω (symmetrical) |
| Load impedance | > 1 kΩ |
| Supply voltage | 48 V (< 4mA, typical 2.1mA) |
| Connectors | XLR 3 pin Or remote: Mini XLR 5 pin Connector for back membrane |
| Dimensions | 157 x 63 x 35 mm |
| Weight | 360g |
