Austrian Audio - OC18 Popular Cardioid Pattern Precision Microphone (Studio Set)
Austrian Audio - OC18 Studio Set, Popular Cardioid Pattern Precision Microphone, Handcrafted CKR6 Ceramic Capsule
- SCANPROTECT Protect against installation damage for 28 days. More info
Popular Cardioid Pattern Precision Microphone
Austrian Audio - OC18 (Studio Set)

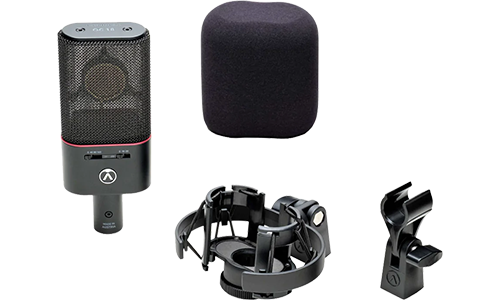

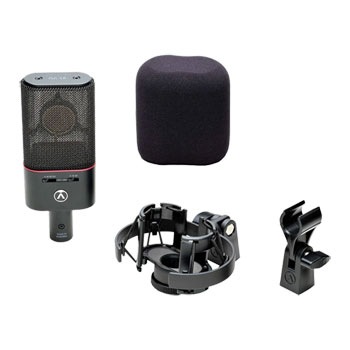

PURE PASSION IN CARDIOIDThe Austrian Audio OC18 Cardioid Pattern Precision Microphone is engineered and manufactured in Austria, featuring high sensitivity and low self-noise allowing it to handle everything from a whisper, to extreme SPLs without distortion, making it the perfect choice for studio, live and broadcast applications. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or paired with any OC818 set in cardioid mode. This studio set comes complete with a pop shield, shock mount and mic clip.
13 mV/PaSensitivity
20Hz - 20kHzFrequency Range
148 dBMax. SPL
Amazing Features
• The same handcrafted design as the OC818
• Handcrafted CKR6 ceramic capsule like the CKR12 capsule, but with single diaphragm
• Every Austrian Audio OC18 and OC818 is within 1dB of each other
• Any two microphones can become a stereo pair
OC818 & OC18. Made in Vienna. Again!
Handmade Capsules and Mics Made in Vienna.
The Tech Spec
| Features | Specification | Directional characteristic | Single |
|---|---|
| Polar pattern | Cardioid |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 13 mV/Pa |
| Sensitivity (all directions) | 13 mV/Pa |
| Equivalent noise level | 9 dB (A) |
| Analogue Low Cut filter | 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below) |
| Impedance | 275 Ω |
| Load impedance | > 1 kΩ |
| Supply voltage | 48 V (< 2.2mA) |
| Main Connector | XLR 3 pin |
| Max SPL | 148 dB SPL (158 dB SPL) |
| Dimensions | 157 x 63 x 35 mm |
| Weight | 335 g |
