Atomos Shogun Connect Monitor & Recorder
Atomos Shogun Connect 7" Monitor/Recorder, WUXGA, 10-bit, HDR, WiFi6/1GbE RJ45, HDMI 2.0/12G-SDI, Rec.709
Email me when the availability or price changes
Finance this product
- From £30.26 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £21.58 / month (APR 15.9%)
Atomos - 'Shogun Connect'
THE FIRST ALL-IN-ONE DEVICE FOR HDR MONITORING, RAW RECORDING, AND A CONNECTION TO THE WORLD.The ATOMOS SHOGUN CONNECT builds on the ground-breaking SHOGUN product-line. Featuring a brighter screen and multiple recording options, the SHOGUN CONNECT is the first fully integrated product in the CONNECT range. It combines HDR monitoring, RAW recording, and cloud workflows. The SHOGUN CONNECT features a loop through 12G SDI IN and OUT interface with SDI RAW support included and send a signal to multiple devices. ATOMOS AirGlu™ wireless sync timecode technology which enables direct, long-range communication between devices, multiple power options to accommodate a variety of long range on-set scenarios, plus Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and USB C to ensure flexible, all-round connectivity. The SHOGUN CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully connected devices that support a range of advanced cloud-based workflows.

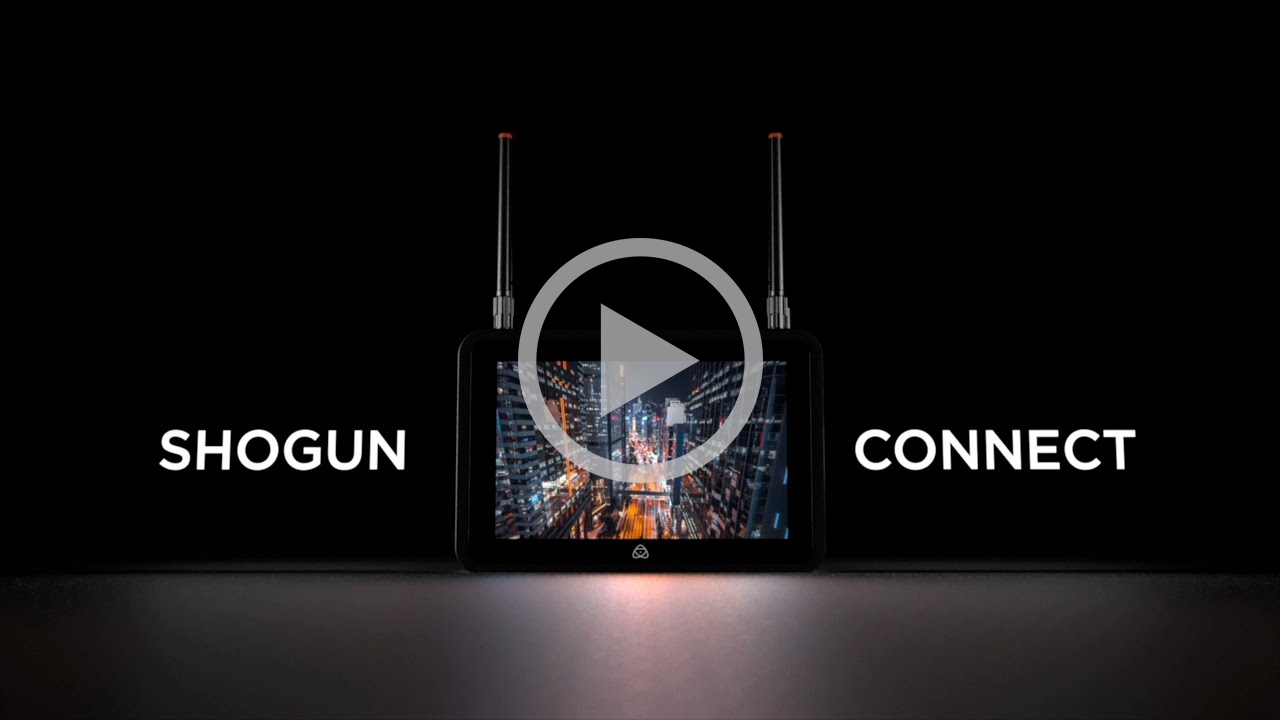

Introducing SHOGUN CONNECT
Livestream with Wi-Fi 6 Built-in
Stream from AnywhereSHOGUN CONNECT supports livestreaming to a range of online services including, Facebook Live, Twitch, and YouTube. With Wi-Fi 6, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, the SHOGUN CONNECT helps filmmakers, streamers and video content producers reach their audience from anywhere.
Fully Integrated Frame.io C2C
Collaboration for EveryoneSHOGUN CONNECT is a fully integrated Frame.io Camera to Cloud (C2C) device. Through support of HDMI and SDI equipped cameras, the device offers advanced online workflows and remote collaboration to many more filmmakers, streamers, and video content creators. With Frame.io for Adobe Creative Cloud now part of the Creative Cloud subscription, even more filmmakers will have access to cloud-based workflows.

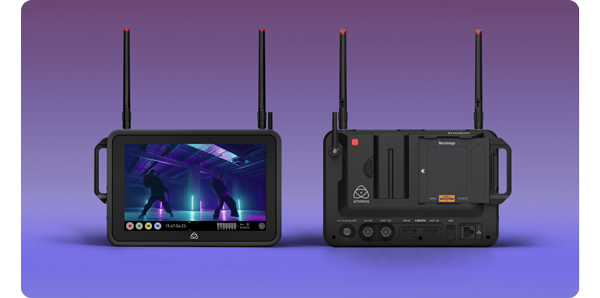

Dual RecordC2C brings the domains of production and post closer together, enabling new ways for remote teams to collaborate. The dual record feature of the SHOGUN CONNECT creates matching “hero” Apple ProRes, ProRes RAW, Avid DHxHR/HD and “proxy” HEVC (H.265) files simultaneously. Proxy files can also be uploaded during capture using ATOMOS progressive transfer technology so that these files are available in the cloud as soon as recording stops.

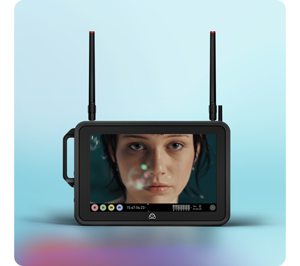

New 7" HDR Display
Bring Your Own CameraThe 7-inch SHOGUN CONNECT features a new, brighter HDR screen and comprehensive range of built-in interfaces including, loop through 12G SDI IN and OUT for SDI RAW and HDMI to support an expansive range of professional cinema, DSLR and mirrorless cameras. The device also features ATOMOS AirGlu™ technology which enables direct, long-range communication between devices and provides a wireless timecode lock.
ATOMOS Cloud Studio Connected
CONNECT to the WorldSHOGUN CONNECT enables filmmakers, streamers, and video content producers of every kind to record, monitor, and share their work with an audience from anywhere, easily, and seamlessly.

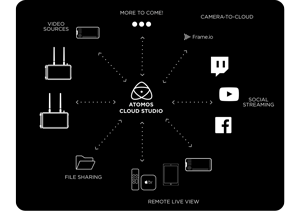

ATOMOS Cloud StudioATOMOS Cloud Studio is a collection of video production services, developed in partnership with MAVIS, which represents a radical innovation for all video creators, streamers, and filmmakers. Cloud Studio will launch in June 2022 with two new cloud-based live video production services for sharing and real-time collaboration. ATOMOS Capture to Cloud uploads files from ATOMOS network connected devices to cloud-based platforms, including Frame.io (an Adobe Company). ATOMOS Stream uses any ATOMOS network enabled device to live stream to popular platforms like Facebook Live, Twitch, YouTube, and more.
The Tech Spec
| Features | Specification | Dimensions (W x H x D) |
198mm / 7.8" x 133mm / 5.2" x 40mm / 1.57" |
|---|---|
| Weight | 730g |
| Mount points | Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points |
| Power Supply | Battery Option, DC 9V Adapter (Not Included) |
| Display | SuperAtom IPS panel (capacitive touch) |
| Display Size | 7" |
| Resolution | 1920 x 1200 |
| Viewing Angle | 178 + H & V |
| PPI | 325 |
| Bit Depth | 10-Bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / nits) | 2000nit +/- 10% |
| Colour Gamut | Rec.709 |
