Atomos Shinobi 7 4K HDR Photo & Video Monitor
Atomos Shinobi 7, 7" 2200nit Field Monitor, AtomHDR, 1920x1200, HDMI, 3G-SDI, 10-bit, Touchscreen, 4K 59.84p
Email me when the availability or price changes
Atomos - 'Shinobi 7 4K HDR Photo & Video Monitor
BIG, Bright and BeautifulShinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200Nits and the lightweight Monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI. An ideal directors' monitor, focus pullers' monitor, program or preview display for video switchers and perfect for vloggers presenting to camera.
7" Touch Screen
Camera Controls at the FingertipsControl camera functions with the intuitive touchscreen of the Shinobi 7, designed to give you fast access to the most crucial camera features. The optional Atomos USB-C to serial cable gives you direct control of all the menu configurations on Z Cam E2 series cameras, so that you can focus on the beautiful image and make dynamic adjustments of iris, white balance, shutter angle and ND.
10+ Stops of Dynamic Range
HDR in the FieldShinobi 7 screen displays a stunning 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with our unique HDR monitoring features, the Shinobi 7 simplifies the complexities of shooting Log and HDR.
Up to 8 Custom LUTs
Built in 3D LUT BOXIn addition to Log to HDR conversions, you can also use your own custom LUTs to feed downstream or live feed. Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them, maintaining creative intent at all times.
Extensive Monitoring Tools
The Best of AtomOS 10Shinobi 7 utilizes the AtomOS 10 platform and is packed with an extensive suite of scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framing & exposure, including Focus Peaking, 4:1 / 2:1 / 1:1 Zoom in, Zebra, False Colour, Cine and social frame guides, SMPTE Safe Area, Waveform, RGB parade, vectorscope, anamorphic de-squeeze.
Atomos ‘Analysis’ ModeThe Analysis feature allows you to see a waveform, histogram and vectorscope simultaneously whilst monitoring the image to ensure complete control of your image. You can even switch between different waveform, histogram and vector scope options on the fly with a single touch.
Professional I/O & Power

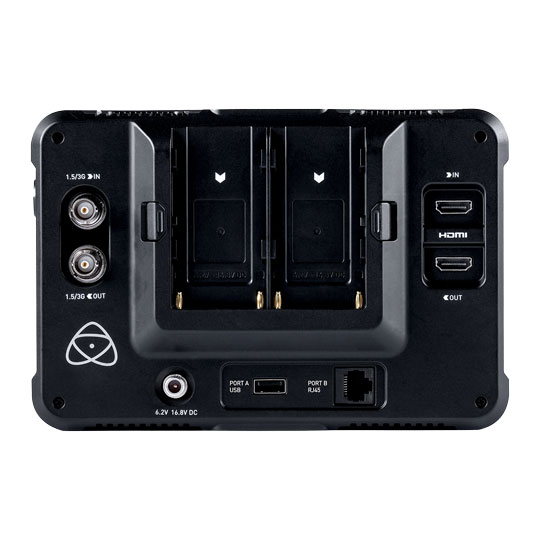

Continuous PowerShinobi 7 was designed to optimize battery usage while monitoring, as the dual battery slots combine to allow you to run all day and easily hot-swap batteries. The dedicated locking DC jack input allows you to connect to mains power on-set and can also be used with the optional DC to D-Tap cable for power in the field from block batteries.
Pro I/O and Cross ConversionWith both HDMI and SDI for input and output Shinobi 7 fits in to any production. With built in cross conversion and 4K to HD down conversion you can easily bring HDMI cameras in to SDI workflows with out the need for separate convertors.
Factory & User CalibrationFactory calibrated for Rec.709, Shinobi 7 also supports user calibration with X-Rite’s i1DisplayPro/Plus and free Atomos Calibration software, which automates the calibration of the screen to ensure accurate and reliable HDR and Rec. 709 monitoring.
The Tech Spec
| Features | Specification | Touchscreen | SuperAtom IPS panel (capacitive touch) |
|---|---|
| Size | 7” |
| Resolution | 1920 x 1200 |
| PPI | 325 |
| Bit Depth | 10-bit (8+2 FRC) |
| Backlight | Edge lit |
| Brightness (cdm2 /Nits) | 2200 +/- 10% |
| Aspect Ratio | 16:9 Image Display |
| Color Gamut | Rec.709 |
| Calibration Support | Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail) |
| Supported Resolution & FPS (Monitor Only) |
4K DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p 4K UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p,59.94p 2K DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p FHD 1920 x 1080 Progressive: HDMI and SDI :23.98/24/25/29.9/30/50/59.94/60p FHD 1920 x 1080 Interlaced: 50/59.94/60i 1280 x 720p: 50/59.94/60p |
| 3D LUT Display | .Cube Format |
| 3D LUT Down Stream | Loop out - HD only |
| 3D LUT Display | .Cube Format |
| 3D LUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion | HLG / PQ |
| Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM-Log, Lecia L-Log |
| Gamut | BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3. cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| Video Input | 1 x HDMI (2.0) 4Kp60 1 x 3G SDI - 2k p60 |
| Bit Depth | 8 / 10-bit |
| Video Chroma Subsampling | YCbCr 420 & 422 |
| Video Output | 1 x HDMI (2.0) 4Kp60 1 x 3G SDI - 2k p60 |
| Video Signal Conversion | HDMI to SDI: Yes SDI to HDMI: Yes |

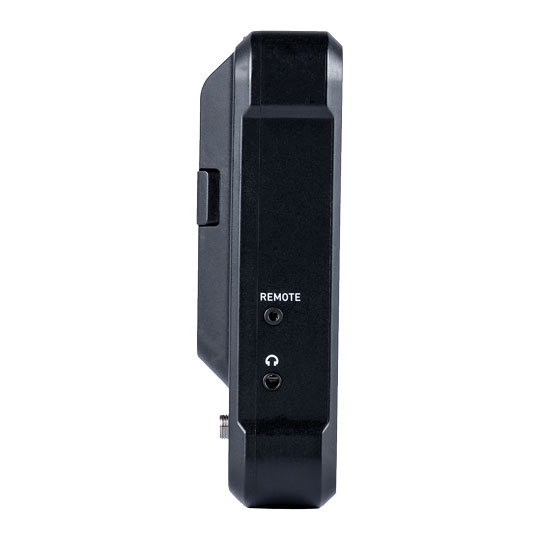

| Audio In/Out | HDMI: 2ch 24-bit, input dependent SDI: 8ch 24-bit, input dependent Headphone Out: 3.5mm 2ch |
| Timecode/Sync | Embedded: HDMI and SDI |
| Dimensions | 198mm x 133mm x 39mm |
| Mount Points | 1 x Anti rotation 1/4" / 3/8 top and bottom |
| Body Construction | Polycarbonate ABS Plastic |
| Cooling | Actively controlled fan and heat sink |
| Multi-function Button | Power / lock screen |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery Voltage | 7.2V |
| Operating Power | 5.8-7.2V |
| Compatible Batteries | 2 x NPF L series |
| Battery Run Time | 5200mAh - up to 2hrs, 7800mAh - up to 3hrs |
| DC In | Locking DC jack |
| Continuous power | Dual battery slots |
| DTAP | Via optional DTap to DC cable |
| Footswitch Included | No |
| Computer Connectivity | USB |
| Software | BOSS Tone Studio |
| Weight | 19.4 lbs |
