Atomos Ninja Ultra 5-Inch 1000nit HDR Monitor-Recorder

designed to be your gateway to the cloudIntroducing the Atomos Ninja Ultra, a 5-inch 1000nit HDR monitor-recorder designed to elevate your DSLR and mirrorless camera experience. Engineered with a blend of lightweight durability and unwavering reliability, this device boasts a fresh, clean modern interface that seamlessly interfaces with an extensive array of HDMI-output cameras. The Ninja Ultra enables recording at astonishing resolutions – up to 8K30, 6K60 and 4K120 with a flexible codec choice between ProRes RAW, ProRes, DNxHD and H.265 (HEVC). Pioneering the way forward, AtomOS 11 enhances memory management, accelerates responsiveness, and introduces an array of innovative features. Seamlessly share your Atomos screen with fellow ATOMOS CONNECT users, as well as Shogun CONNECT, iPads, Macs, and Apple TVs, either wirelessly within your premises or across the globe with Atomos RemoteView and Wi-fi 6E support. Revolutionize your workflow with the newly introduced tools, RecordAssist and PlayBackAssist, streamlining advanced recording and playback arrangements. Introducing an industry-leading suite of tools, effortlessly accessible through one-touch operation, including SegmentPro, EL Zone, and ARRI False colour, complemented by a suite of additional monitoring aids like Vectorscopes, Zebra, Atomos False Colour, Onion Skin, and more.

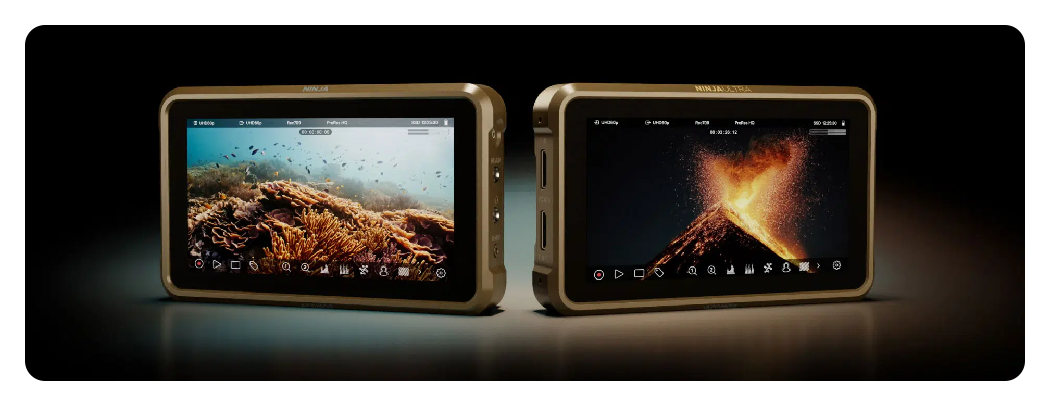

BEST OF BOTH WORLDSThere are two ways to use Ninja Ultra. On its own, it’s the most powerful Ninja ever. Add the affordable Atomos Connect, and it’s a gateway to amazingly fast and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish to social media within minutes of shooting the action. Choose Ninja Ultra if you’re not ready for the cloud quite yet. And if you want to get started with cloud workflows, Ninja Ultra and Atomos Connect is the perfect combination.

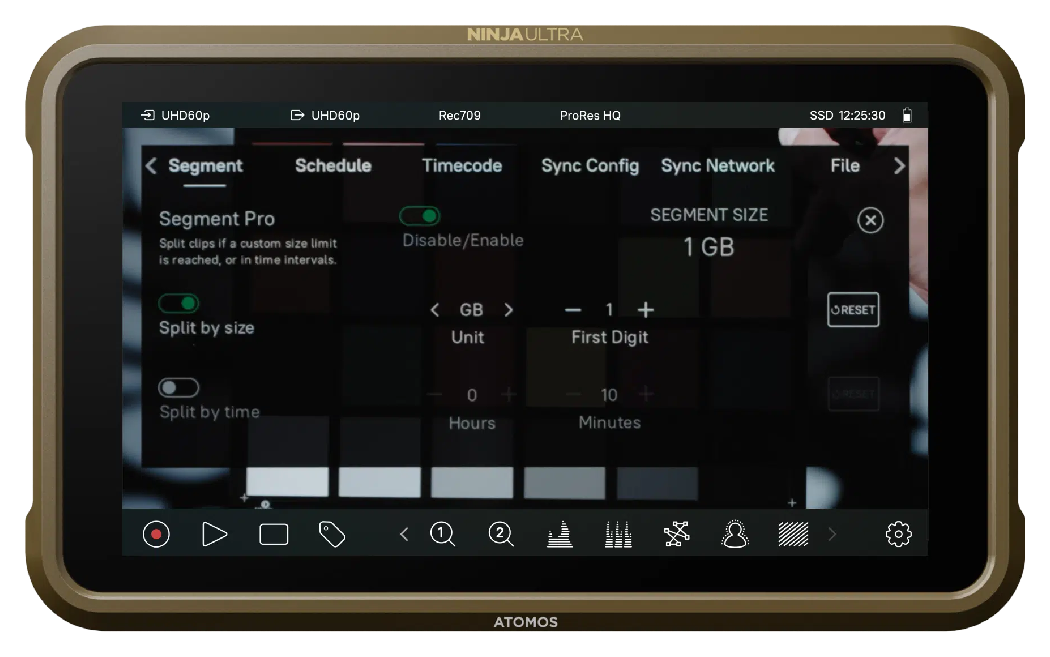

CUSTOM FILE SIZESegmentPro is another powerful new tool exclusive to our completely redesigned AtomOS 11 operating system. It allows you to segment/split long recordings into user-defined chunks, adding even more flexibility to the production workflow. The segmenting can be defined by setting a custom file size limit, in GB or TB, or by time, all without dropping a frame.

With SegmentPro you can fit your files into any workflow – even those that require smaller media (for example, if you are going to edit on an iPad). It’s easier to share smaller files, and safer too: if you lose a big file, you’ve lost everything. Working with smaller files minimizes this risk.

SDI CINEPreviously, camera to cloud relied on matching filenames with hero and proxy files made by AtomOS. Now, thanks to cooperation with ARRI, Canon, RED and Sony, Atomos C2C files are matched back to the original in-camera (OCF) filenames. This gives a joined-up process when conforming C2C or SSD proxy files in the edit with camera files. On camera or on Atomos: it’s your choice.

Wi-Fi 6EWith lower latency, higher throughput and a more stable connection, Wi-Fi 6E boosts cloud video workflows. All other Wi-Fi variants share the same two radio frequency bands: 2.4 GHz and 5GHz, but Wi-Fi 6E also occupies 6GHz. Only Wi-Fi 6E devices use this frequency, so they have no competition from legacy Wi-Fi formats.

Wi-Fi 6E is less prone to interference and works over a longer range. All things being equal, users will have at least twice the bandwidth available at a given distance from the transmitter.

The new format also offers lower latency and can make more simultaneous connections to Wi-Fi 6E routers. Wi-Fi 6E is backwards compatible with previous Wi-Fi versions, but its extended capabilities will only be available when connecting to other Wi-Fi 6E equipment.

MORE CONTROLSet up time-lapse recording and control it from your Ninja Ultra, completely independent of your camera’s controls. Use the Ninja’s screen for accurate visual alignment and its massive removable storage for longer projects.

TIMED RECORDINGSet a time for your recording to start. It’s ideal for covering pre-arranged events when you need to be somewhere else. If you have several Ninjas you can even record in multiple locations simultaneously. It’s also a safer way to cover dangerous locations without risk to you and your colleagues. Finally, it’s perfect for wildlife shooting. Want to capture the action by the riverbank at sunset? Just dial-in the time and come back later.

CODEC CHOICEThe new Ninja line includes the following codecs free of charge, giving you more options to choose the ideal codec for your projects.

The Apple ProRes codec is pre-activated to use out of the box, so you can start shooting immediately. To activate the H.265 and DNx codecs, visit my.atomos.com to register your product, then follow the simple online instructions to activate these codecs for free using an activation token system.

To activate the Apple ProRes RAW codec you need to go to the my.atomos.com portal. There is a small additional step to get the correct activation token and access the codec for free. You simply need to plug in your compatible RAW camera to complete the process. You only need to do this once to unlock this super-flexible and unique codec in perpetuity.

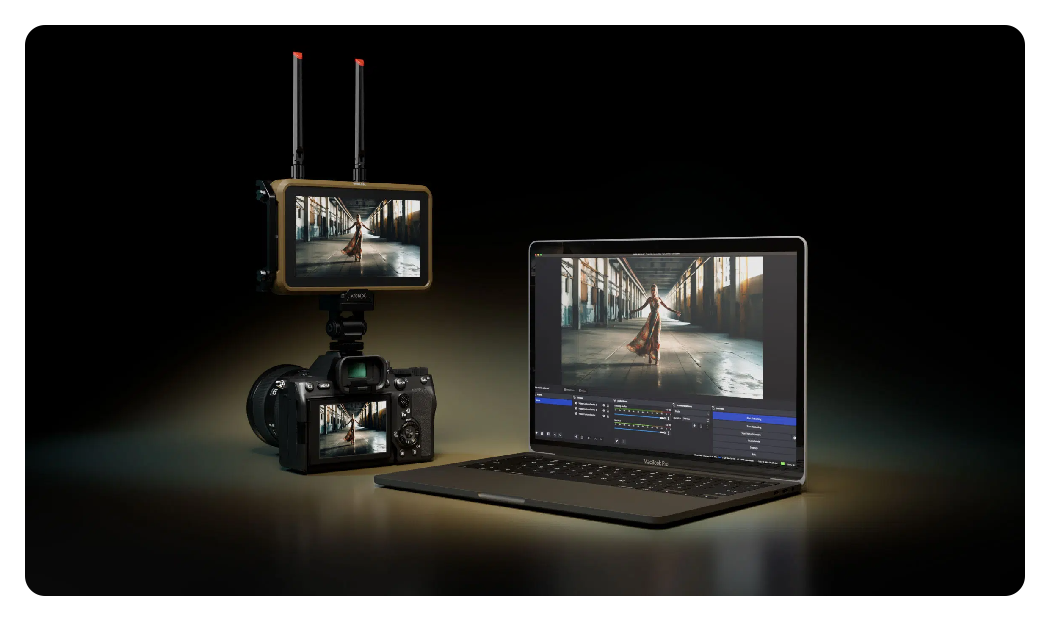

VIDEO OVER IPNDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Ninja Ultra can take part in an NDI environment. The NDI TX option turns your Connect-enabled Ninja Ultra into an NDI source, visible to all other authorized devices on the network.

Paid option. Requires Atomos Connect.

Up to 4 feeds. SimultaneouslyRemote view doesn’t need expensive hardware and uses the public internet, so it’s global. But Atomos technology ensures there are no delays. You can receive up to four RemoveView feeds on a single screen. It’s all configurable from a simple web interface. Powered by a unique combination of AtomOS 11 and Atomos Cloud Studio, you can share with the person standing next to you or someone across the globe just as easily.

EXPANSIONNinja Ultra is built with expansion in mind, with a range of ports for powerful Atomos accessories. Atomos Connect gives you wireless connectivity to the cloud and much more, while AtomX Cast provides multi-cam switching for live events and streaming.

wireless timecode, sync, and control technologyAtomos AirGlu™ adds wireless timecode, sync, and control technology to Atomos Connect for Ninja and Ninja Ultimate. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the 22 server unit, which means you’ll no longer need a huge budget or get involved in time- consuming post-production workflows to produce perfectly synchronized, multi-camera video.

AirGlu BT is the Bluetooth timecode sync protocol adopted by many camera and audio manufacturers and AirGlu RF is the long-range sync and control protocol between Atomos connect products.

LUTS AND SUPPORTED LOG FORMATSNinja supports Log video workflows, capturing original Log footage and applying LUTs so that you can see your results in an accurate, viewable colour space. With an HDR, high brightness screen, Ninja gives immediate visual feedback so you can assess your shots on set and adjust and re-shoot if necessary. We support log formats from a wide range of companies. If it’s available, Ninja will capture 10-bit 4:2:2 video, maximizing colour information and reducing the likelihood of “banding” when converting to a viewable colour space.

QUALITY BOOSTTo save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera outputs video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Ninja can record more colour information and immediately add value to your production with your existing camera rig. If you’re shooting Log footage, bypassing the camera’s internal compression will give the best possible dynamic range. We designed Ninja to maximize your video quality.

ATOMX SSDMINI DRIVETo record up to 8K using advanced edit-ready formats like ProRes RAW, ProRes, and DNxHD/HR, you need fast and robust storage – and lots of it. Ninja supports removable SSD drives, which provide the space and sustained performance you need. AtomX SSDmini drives are more compact than standard SATA SSDs: an affordable alternative to an SD card of equivalent capacity or performance. They support up to 4TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. AtomX SSDmini drives record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Ninja.
