Atomos Ninja RAW
Atomos Ninja RAW, 5-inch, 1500nit, AtomOS, 6K30 RAW, ProRes RAW, ProRes, DNx, DNxHR, H.265
Email me when the availability or price changes
Finance this product
- From £30.22 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £21.55 / month (APR 15.9%)
Atomos Ninja RAW

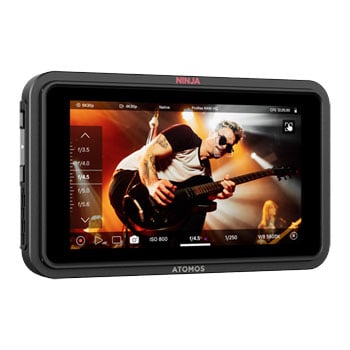

The world’s most advanced monitor-recorderThe Atomos Ninja RAW is a 5-inch HDR monitor-recorder designed for filmmakers and content creators who need high-quality Apple ProRes and ProRes RAW recording over HDMI in a compact on‑camera package. Featuring a 1500-nit touchscreen that is 50% brighter than previous Ninja models, and a full suite of professional monitoring tools, including EL Zone false colour, focus peaking, waveform, RGB parade, and vectorscope, it ensures accurate exposure and focus even in bright outdoor environments. With support for high-speed CFexpress Type B media and advanced monitoring powered by the latest Atomos OS, the Ninja RAW delivers a powerful, future-ready field recorder solution for modern mirrorless and cinema cameras.
ProRes RAW Recording And Camera Control

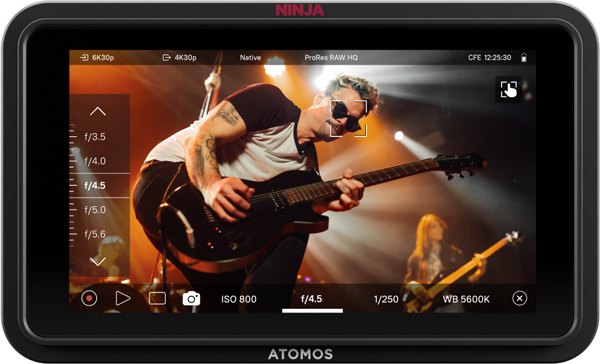

Camera controlUsing intuitive, on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Ninja RAW, TX GO or TX. Control is available for most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB‑C, and all Z CAM E2 series models (LANC cable required, purchased separately).
Touch to focusTap the Ninja RAW, TX GO or TX touchscreen to have the camera automatically focus on your point of interest. Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control and sharp images. Available on compatible cameras only.
50% brighter 1500 nit screenThe Ninja RAW, TX GO and TX screen is 50% brighter than its predecessors, and is packed with pro monitoring features like EL Zone™ false color, focus peaking, waveform, RGB parade, vectorscope and more! All Ninja models feature the Atomos OS combined with the 5-inch touchscreen interface to give you far more control of your shot, displaying much more detail than your camera’s built‑in display.
Record to CFexpress and more!Atomos invented the concept of a monitor that also records to high capacity, inexpensive removable media. Previous Ninjas used removable SSD Drives, but now with Ninja RAW, TX GO and TX you can choose to record on either CFexpress or an external SSD drive with high-speed USB-C connection. So now you have even more recording media options!
The Versatile Monitoring And Recording Solution
Pro productionsMany professional filmmakers rely on their Ninja to give them pristine RAW video direct from the camera sensor. Unlike many cameras, Ninja can record for hours, not minutes. And all Ninjas come with an array of professional monitoring tools that help you really nail the perfect shot.
Content CreatorsNinja is lightweight and portable, perfect for content creators on the go. Its extensive monitoring tools include many different industry-standard frame guides that make it easy to compose your footage for different social channels, without having to reset and re‑frame.
Max Out Your Workflow Options
CFexpressNext generation Ninjas take performance to the next level with support for high-speed CFexpress Type B cards (sold separately). This cutting-edge media format gives you faster read/write speeds, higher resolutions, and more reliable recording – ideal for demanding ProRes RAW workflows.

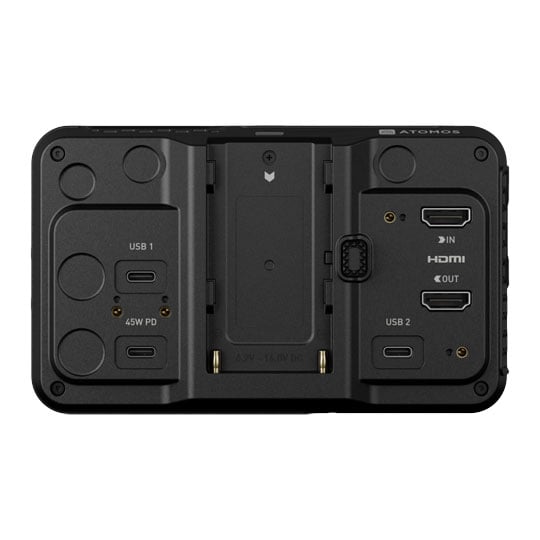

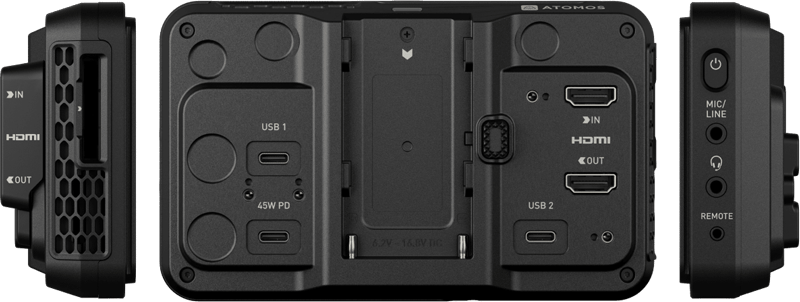

USB-CNinja RAW, TX GO and TX have three USB‑C ports, one of which is used to power the device. The other USB‑C ports enable the direct attachment of external storage media or network adaptors. It’s a future-ready addition designed to keep pace with content creation needs.
Unique cable locking systemAtomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables. Ninja RAW, TX GO and TX come with special brackets to facilitate this, and a USB-C locking cable. With Atomos locking cables you get the most robust cable system available today.
Tally lightAdding a tally light to Ninja RAW, TX GO and TX is a simple but powerful update that is especially useful in live production setups. A tally light provides a clear visual indicator of when the camera is recording or broadcasting. When the Ninja is recording, the light automatically turns red (live/on-air). If the tally light is green it indicates to the talent that the camera/monitor-recorder is on preview or standby.
Flexible Power Options
USB-C PDNinja RAW, TX GO and TX support USB-C Power Delivery (PD), which allows the device to be powered directly from a compatible USB-C source, including power banks, and wall adapters.
NP-F batteryNP-F batteries are ideal for field use—powering your monitor-recorder through extended shoots without the need for frequent swaps or complex power setups. (Purchased separately)
Battery eliminatorCompatible with all Atomos monitors that accept an NP-F Sony L-Series type battery. Requires the separately available Atomos Locking AC Power Adapter to provide power. (Purchased separately)
Unmatched Codec & Frame Rate Flexibility
Resolution and frame ratesThe Ninja series supports a wide range of resolutions and frame rates, depending on the output of your camera: up to 120fps at HD resolution, up to 60fps at 4K UHD/DCI and up to 30fps at 8K UHD/DCI resolution. Shooting in higher frame rates is typically used for slow motion playback or fast action scenes.
Choice of codecsAll Ninjas come with ProRes RAW, ProRes RAW HQ, ProRes LT, 422 & 422 HQ, and H.265 pre‑activated, so you can start shooting immediately. Both Ninja TX GO and Ninja TX also include Avid DNx and NDI 6 / HX3, neither of which is available on Ninja RAW. NDI is a separate online purchase for Ninja and Ninja Ultra.
LOG formatsAll Ninja monitor-recorders support a wide variety of LOG profiles from the most popular camera manufacturers, including Sony, Canon, Panasonic, Nikon, Fujifilm, ARRI, and RED. Being able to work with LOG profiles allows for greater dynamic range and more flexibility in colour grading during post‑production.
Professional Monitoring Tools
one-touch monitoring toolsThe Ninja range offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone™), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). Additionally, Ninja provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.
EL ZoneAll Ninja monitor-recorders support EL Zone, a professional false color exposure tool that helps you see exactly how bright or dark different parts of your image are. Unlike traditional false color systems that use rough IRE ranges, EL Zone assigns specific colors to exact exposure values—based on stops of light, in the same way your camera sees exposure. It’s a precise and consistent way to expose your image correctly every time.
LUTSA Ninja monitor-recorder receives LOG signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 — all while recording in high-quality ProRes, DNxHR, or ProRes RAW. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Ninja’s built-in monitoring tools for precise exposure control.
See True Colours With HDR Precision
BrightnessAll Ninjas have a 5-inch, 10-bit HDR/SDR touchscreen display. Ninja and Ninja Ultra have 1000 nits of brightness, while Ninja RAW, TX GO and TX have 1500 nits of brightness. All Ninja screens are viewable in direct sunlight and sun hoods are available as a separate purchase for extreme conditions.
High Dynamic RangeYou can view 10+ stops of dynamic range from a LOG / PQ / HLG signal. Ninja’s unique HDR monitoring features help you simplify the complexities of shooting LOG and HDR, because it is possible to replicate post-production workflows when it matters most – while you are shooting.
CalibratedCalibration is the key to a trustworthy monitor. All Ninjas can be calibrated with Calibrite Display Pro HL / Plus HL probe using the Atomos Calibrator app, for ongoing accurate HDR and Rec.709 monitoring. Accurate monitoring ensures reliable results.
Powerful System Management Tools
SegmentProSegment/split long recordings into smaller, user-defined chunks, all without dropping a frame. With SegmentPro you can fit your files into any workflow. It’s easier to share smaller files, and safer too: if you lose a big file, you’ve lost everything. Working with smaller files minimizes this risk.
