Scan code: LN90066 Manufacturer code: CL3800NW

ATEN CL3800NW - 18.5"" FHD SD LCD KVM Draw

ATEN CL3800NW - 18.5"" FHD Short Depth LCD KVM Draw

Thumbnail 1 : ATEN CL3800NW - 18.5"" FHD SD LCD KVM Draw Thumbnail 2 : ATEN CL3800NW - 18.5"" FHD SD LCD KVM Draw Thumbnail 3 : ATEN CL3800NW - 18.5"" FHD SD LCD KVM Draw Thumbnail 4 : ATEN CL3800NW - 18.5"" FHD SD LCD KVM Draw
Scan code: LN90066 Manufacturer code: CL3800NW
£1,584.49Item currently awaiting an ETA
Pre order
From £76.06 / month (APR 14.9%)
Monthly Payment: £274.95
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,584.49
Total inc. interest: £1,649.67
Monthly Payment: £142.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,584.49
Total inc. interest: £1,706.92
Monthly Payment: £98.09
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,584.49
Total inc. interest: £1,765.45
Monthly Payment: £76.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,584.49
Total inc. interest: £1,825.25
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £39.57 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview 1U Ultra Short Depth Dual Rail WideScreen FHD LCD Console (USB / HDMI / DVI / VGA)

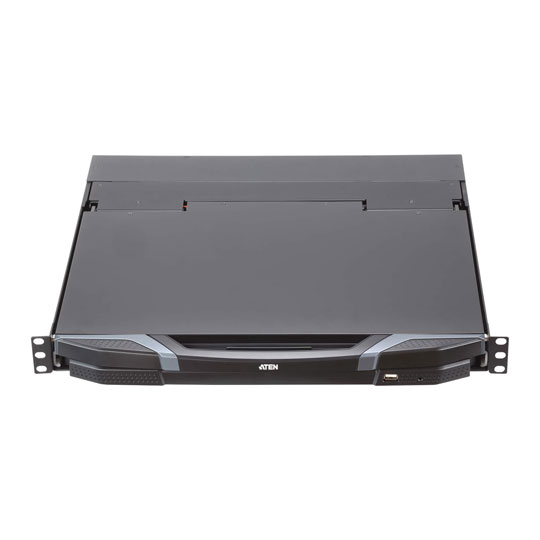

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.

The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.

Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.

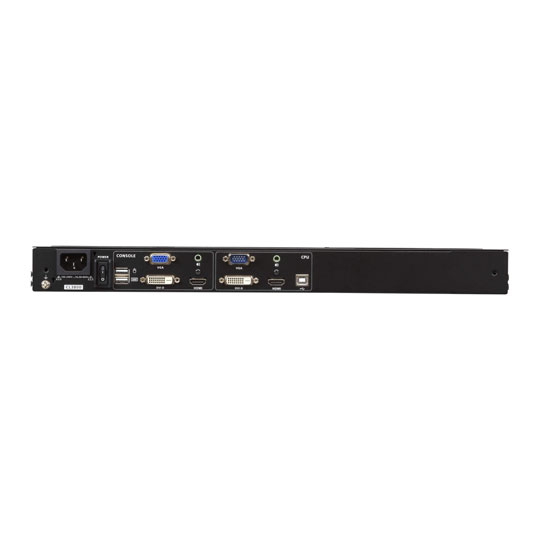

For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

CL3800NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080

Features • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions.
• Integrated KVM Console with short depth dual rail design and a 18.5” FHD LED-backlit LCD monitor allows you to work in narrow spaces.
• Supports an external console with USB / DVI / VGA / HDMI connectors.
• Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B.

Includes
• 1x CL3800 LCD KVM Console with Standard Rack Mount Kit.
• 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft).
• 1x Firmware Upgrade Cable.
• 1x Power Cord.
• 1x User Instructions.
