ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard
ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN154122 Manufacturer code: 90MB1JD0-M0EAY0
£549.98Item overdue since 10 February 2025
Pre order
  • Thumbnail 1 : ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard

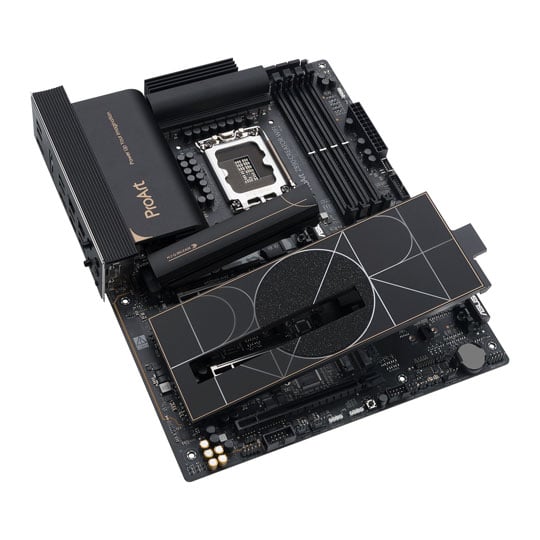

ASUS ProArt Z890 Creator WiFi DDR5 PCIe 5.0 ATX Motherboard

ASUS ProArt Z890 Creator WiFi, Intel Z890, S 1851, DDR5, PCIe 5.0, 5x M.2, 10G/2.5G LAN, WiFi7, USB 3.2 Gen2, TB5, ATX

Scan code: LN154122 Manufacturer code: 90MB1JD0-M0EAY0
£549.98
Item overdue since 10 February 2025
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £19.26 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £45.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £549.98
    Total inc. interest: £549.98
    Monthly Payment: £22.92
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £549.98
    Total inc. interest: £549.98
    Monthly Payment: £19.26
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £549.98
    Total inc. interest: £693.31
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £14.61 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ProArt Z890-CREATOR WIFI Intel ATX Motherboard from ASUS

X670E

ProArt Z890-Creator WiFi The ProArt Z890-CREATOR WIFI is a high-performance motherboard designed to empower creators at all levels. It maximises the capabilities of Intel's latest Core Ultra Processor (Series 2) with advanced power delivery, DDR5 support, and PCIe 5.0 technology. The board offers exceptional connectivity options, including dual Thunderbolt 5 ports, 10G and 2.5G Ethernet, and WiFi 7. Its aesthetic design combines professional elegance with functionality, featuring a black colour scheme accented with metallic gold touches. The sleek I/O cover not only enhances the board's sophisticated appearance but also conceals its premium connectors, resulting in a clean and polished look that appeals to content creators.

Intel Z890Chipset

LGA 1851CPU Socket

Intel Core Ultra Processors (Series 2)Compatible CPU

ATXForm Factor

All You Need for Maximum Productivity

Thunderbolt™ Connectivity Immerse yourself in your creative process with advanced connectivity featuring two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port, enabling seamless connections to your content-creation devices and bi-directional data transfer speeds of up to 120 Gbps. Enhance your visual experience by connecting one 8K or two 4K colour-accurate monitors through the onboard DisplayPort™ In port on the rear I/O panel, routing video output via the Thunderbolt™ 5 port to fully realise your creative vision with stunning clarity.

Thunderbolt Connectivity

120GbpsBi-directional Bandwidth

DisplayPort 2.1Supports one 8K or dual 4K displays

Daisy-ChainingFor up to five devices


WiFi 7WiFi 7 represents a significant advancement in wireless technology, achieving speeds up to 4.8 times faster than WiFi 6 through innovations such as 320 MHz channels on the 6 GHz band and 4K QAM. The introduction of Multi-Link Operation (MLO) enhances connection stability and reduces latency, making it ideal for demanding applications like gaming, streaming, and industrial IoT.

10 Gb & 2.5 Gb EthernetDual Ethernet ports support simultaneous 2.5G internet streaming and 10G connections for local NAS, enhancing data organisation and security.

ASUS WiFi Q-AntennaDual transceivers operate on 2.4, 5, and 6 GHz bands, enhancing throughput and signal quality with directional sensitivity for extended coverage.

PCIe 5.0 SupportThe ProArt Z890-CREATOR WIFI motherboard features PCIe 5.0 support, providing unrestricted bandwidth for the fastest available SSDs and graphics cards.

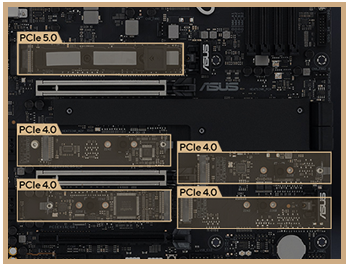

Five Onboard M.2 SlotsThe ProArt Z890-CREATOR WIFI motherboard offers five M.2 slots with advanced storage capabilities: one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, enabling lightning-fast data transfers up to 128 Gbps and supporting NVMe RAID configurations for optimal performance.

Intelligent AI Solutions

ASUS AI Advisor

ASUS AI AdvisorASUS AI Advisor is an AI-powered tool for owners of compatible ASUS motherboards, providing real-time answers to technical questions in natural language. It simplifies complex features like AI Overclocking and AI Cooling II for beginners, while offering detailed guidance on advanced functionalities for experienced PC builders. By enhancing traditional support channels, ASUS AI Advisor ensures that assistance is always readily available, improving the overall user experience.

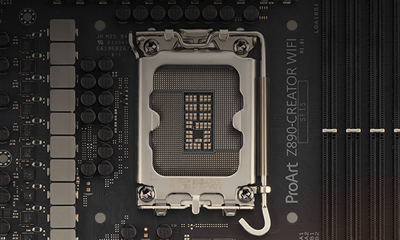

AI Overclocking

AI Overclocking Enhance CPU performance with optimised settings that predict ideal configurations for processors and cooling, allowing your system to operate at maximum potential.

AI Networking II

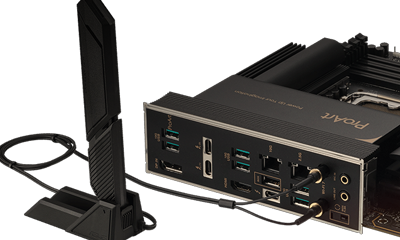

AI Networking II Optimised network performance guarantees seamless connectivity and maximises the speeds of WiFi 7 for an enhanced online experience.

AI Cooling II

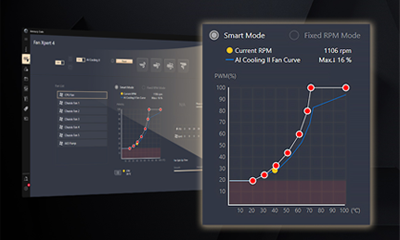

AI Cooling II Optimised thermals are achieved by dynamically adjusting fan speeds based on CPU temperatures, resulting in lower noise levels.

The Core of Your Powerful Workstation

Robust Power DesignDesigned to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).

16 Vcore Power (90A,DrMOS)

2 VCCGT Power (90A,DrMOS)

1 VCCSA Power (90A,DrMOS)

2 VCNNAON Power (80A,DrMOS)

Eight-Layer PCB Design

Eight-Layer PCB Design This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connectors

ProCool II Connectors These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors

Superior Chokes & Capacitors These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control

Digi+ VRM Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

The Ability to Do More

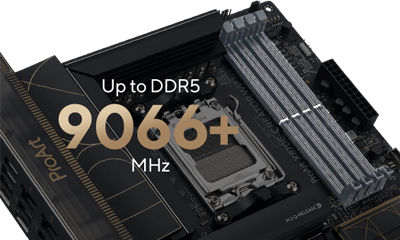

DDR5 MemoryThe ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

DDR5 Strength

DIMM FitDIMM Fit is an ASUS BIOS feature that analyzes memory modules to optimize performance, enhance compatibility, and ensure system stability for diverse user needs, from overclocking to content creation.

ASUS Enhanced Memory Profile

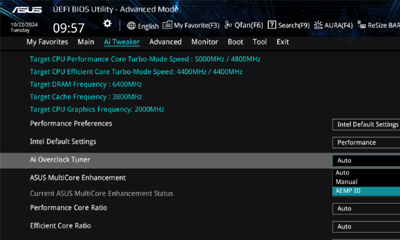

AEMP IIIAEMP III is an advanced ASUS firmware feature that optimises performance for cutting-edge CUDIMM memory. It uses a two-phase tuning process to balance performance and stability, even at high DDR5-8000+ speeds.​

Customise Your Settings with ProArt Creator Hub

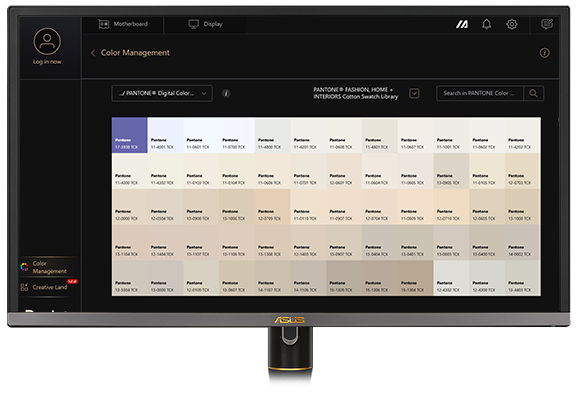

Colour Management​Colour is essential for creators, and the Colour Management feature provides easy access to tools like the Screen Colour Picker and Image Colour Extractor for detailed colour analysis. Users can build their own colour palettes and explore trends curated by professionals at the ASUS Design Center.

Colour Management

WorkSmart​To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.​

Colour Management

Full Connectivity

Performance Features

2x USB 10Gbps ports
1x DP IN port for Thunderbolt™ 5
2x Thunderbolt™ 5 Type-C®
1x HDMI® 2.1 (4K @ 60 Hz)
2x USB 10Gbps ports
1x USB 2.0 port

10Gb ethernet
1x Thunderbolt™ 4 Type-C®
2x USB 10Gbps ports
2.5Gb Ethernet
WiFi 7
BIOS Flashback™

2x Audio jacks
1x USB 20Gbps Type-C®
1x USB 5Gbps front-panel header
4x SATA 6Gb/s ports
1x USB 2.0 header
Specifications
Core Specifications
Edition PROART Z890-Creator WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • HDMI
  • Thunderbolt
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Support Software RAID 0, 1, 5, 10
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 5 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Gen2 Type-C
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Intel (2.5GbE LAN)
  • 1 x Marvel AQtion 10GbE

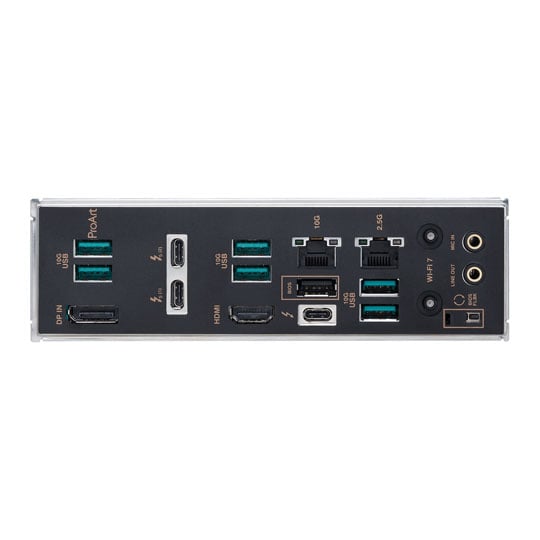

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 2 x Thunderbolt 5 (Type-C) with PD & DP 1.4
  • 1 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 4.0 Type-C / Thunderbolt / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN154122
Model Number 90MB1JD0-M0EAY0
GTIN 4711387766163
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
