ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
New
ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN152163 Manufacturer code: 90MB1I90-M0EAY0
£453.98
Get it Tomorrow, 03 NovIn stock
  • Thumbnail 1 : ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard
New

ASUS ROG STRIX Z890-A GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX Z890-A GAMING WIFI, Intel Z890, S 1851, DDR5, PCIe 5.0, 5x M.2, 2.5G LAN, WiFi7, TB4, ATX

Scan code: LN152163 Manufacturer code: 90MB1I90-M0EAY0
£453.98
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 03 NovIn stock
  • By DPD On 4th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £18.92 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £37.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £453.98
    Total inc. interest: £453.98
    Monthly Payment: £18.92
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £453.98
    Total inc. interest: £453.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £12.06 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

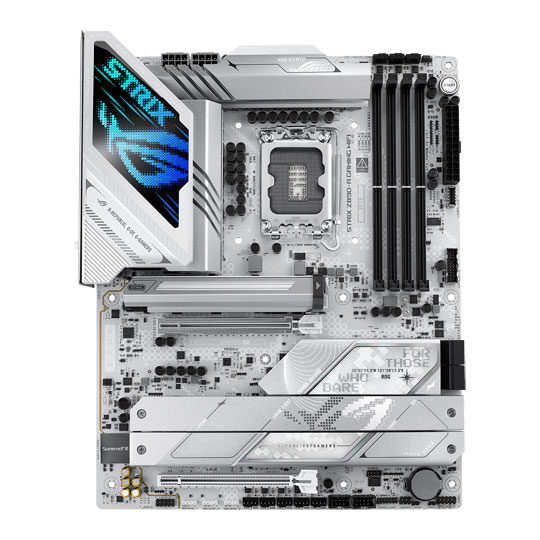

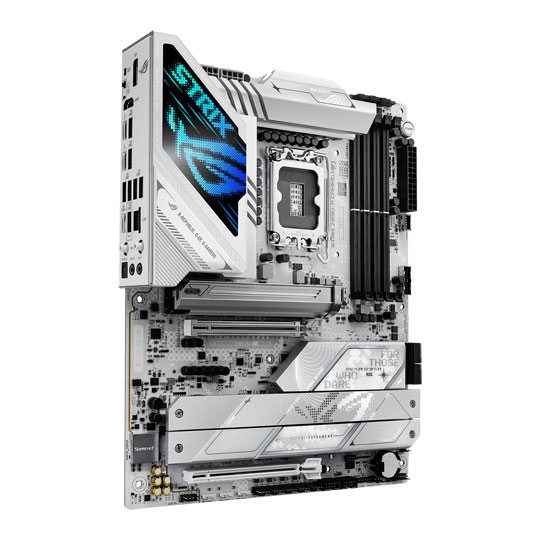

ROG Strix Z890-A GAMING WIFI Intel ATX Motherboard from ASUS

ASUS Z890 Motherboard

For Those Who Dare The ROG Strix Z890-A is a feature-packed motherboard designed to support Intel Core Ultra Processors (Series 2), offering cutting-edge performance for gaming and AI applications. It boasts Thunderbolt™ 4 connectivity for ultra-fast data transfers, PCIe® 5.0 for next-generation expansion capabilities, and customisable Polymo lighting for a personalised aesthetic that can be tailored to suit any build. With its robust power delivery system featuring a 16+1+2+2 phase VRM design, the Z890-A is well-equipped to handle the power demands of high-end Intel Core Ultra CPUs, ensuring stable performance for intensive tasks. This motherboard combines exceptional connectivity, advanced AI-ready features, and the raw power needed for elite gaming, making it a versatile choice for enthusiasts seeking a balance of style and substance in their high-performance systems.

Intel Z890Chipset

LGA 1851CPU Socket

Intel Core Ultra Series 2Compatible CPU

ATXForm Factor

ASUS AI Intelligence

ASUS AI Intelligence

ASUS AI ADVISOR ASUS AI Advisor leverages AI technology to understand natural-language questions and scenario descriptions, enabling users to explore the functionality and advanced features of ASUS motherboards in a clear and accessible manner.

AI OVERCLOCKING

AI OVERCLOCKING ASUS AI Overclocking analyses CPU and cooling to optimise settings and maximise system performance.

AI COOLING II

AI COOLING II Effortlessly achieve the perfect balance of thermals and acoustics in any build with just a single click.

AI NETWORKING II

AI NETWORKING II AI Networking II boosts performance, ensures reliable connectivity, and enhances WiFi 7 speeds.

Ultimate Power Solution

DUAL PROCOOL II POWER CONNECTORSProCool II connectors ensure flush contact with the PSU power lines, while a metal sheath improves heat dissipation and lowers electrical impedance.

16+1+2+2 Power StagesThe VRM is equipped with 16+1+2+2 power stages, rated to handle an impressive 90 amps for optimal performance.

Robust Power solution

ALLOY CHOKES AND DURABLE CAPACITORSAble to resist extreme temperatures, the premium chokes and capacitors enable performance that exceeds industry standards.

EIGHT-LAYER PCBThe multi-layered circuit board achieves quicker heat dissipation around the voltage regulators for improved stability and greater overclocking potential.

Push It To The Limit

DDR5 DOMINATION

DDR5 DOMINATION The ROG Strix Z890-A's advanced signal routing allows enthusiast-grade memory kits to exceed the 8 GT/s speed barrier, enhancing DDR5 performance and overclocking potential.

DIMM FIT

DIMM FIT DIMM Fit is an ASUS BIOS feature that analyses memory modules to enhance performance and identify potential issues efficiently.

AEMP III

AEMP III ASUS Enhanced Memory Profile III (AEMP III) optimises memory performance, enhancing speed and stability through advanced firmware tuning.

DIMM FLEX

DIMM FLEX DIMM Flex offers a new method for enthusiasts to overclock DDR5 memory modules, optimising performance based on temperature conditions.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Undeniably ROG STRIX

Design

PLAY IN STYLE The ROG Strix Z890-A showcases a modern white finish that enhances its stylish look, seamlessly integrating into various system builds. Its design is accentuated by metallic heatsinks, while the understated Polymo lighting on the I/O shroud allows users to select between a sophisticated minimalist aesthetic or a bold, vibrant display.

Outshine the Competition

Aura

ASUS Aura Sync ASUS Aura technology offers complete control over RGB lighting. With a wide array of presets, you can customise the onboard LEDs and any connected accessories. The best part? You can easily sync these effects with compatible ROG graphics cards, monitors, keyboards, and mice, ensuring your entire setup has a unique and immersive look that enhances your gaming experience.

Superb Thermal Management

VRM HEATSINK ARRAY

VRM HEATSINK ARRAY The ROG Strix Z890-A employs two thick heatsinks over the power delivery area, creating strategic airflow channels that enhance heat dissipation. This design effectively supports the high-performance capabilities of Intel® Core™ Ultra Processors (Series 2).

M.2 BACKPLATE

1 - M.2 BACKPLATE An integrated backplate ensures high-performance drives maintain peak performance, even with restricted airflow.

2 - M.2 HEATSINKS M.2 heatsinks cover every slot to maintain optimal temperatures for onboard NVMe SSDs.

VRM HEATSINK ARRAY

CPU FAN HEADERS A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO PUMP FAN HEADER A dedicated PWM/DC header connects self-contained water-cooling setups.

4-PIN FAN HEADERS The Strix Z890-A features five chassis fan headers, each supporting auto-detection of PWM or DC fans.

The Latest Standard of Speed

PCIe 5.0 Support

PCIE 5.0 The Strix Z890-A motherboard features comprehensive PCIe 5.0 support, with the primary x16 slot reinforced by a SafeSlot retention bracket to support heavy graphics cards. It includes one M.2 slot capable of reaching speeds up to 16 GB/s, while additional slots provide speeds of 8 GB/s. All M.2 slots are equipped with robust heatsinks to effectively dissipate heat from high-performance drives.

TWO THUNDERBOLT 4 TYPE-C® PORTS

TWO THUNDERBOLT 4 TYPE-C® PORTS Each port offers 40 Gbps bidirectional bandwidth for super-speed devices. They support two external 4K displays, with PCIe bandwidth reaching 32 Gbps.

Embrace Ultra-Fast Connectivity

WIFI 7 WiFi 7 represents a significant leap in wireless technology, offering speeds up to 4.8 times faster than WiFi 6 through innovations like 320 MHz channels on the 6 GHz band and 4K QAM modulation. Its Multi-Link Operation (MLO) feature enhances connection stability and reduces latency, revolutionising gaming, streaming, and industrial IoT applications.

Ultra-Fast Connectivity

2.5Gb ETHERNETIntel® 2.5Gb Ethernet boosts wired connections, offering speeds 2.5 times faster than standard Ethernet for quick file transfers and gaming.

ASUS WiFi Q-AntennaDual transceivers enhance throughput on 2.4, 5, and 6 GHz bands, improving signal quality and extending coverage with directional sensitivity.

A Fully Comprehensive I/O

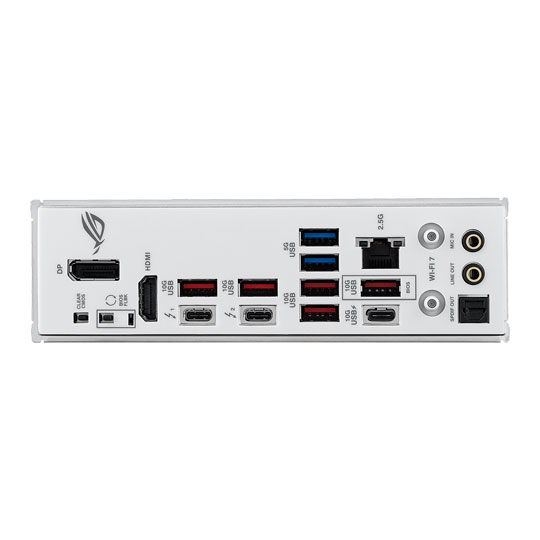

REAR I/O
Clear CMOS Button
BIOS FlashBack™ Button
1x Display Port
1x HDMI™ Port
2x Thunderbolt™ 4
6x USB 10Gbps Ports
2x USB 5Gbps Ports
1x Intel® 2.5Gb Ethernet
WiFi 7
Optical S/PDIF Out Port
2x Audio Jacks
1x USB 20Gbps Connector
1x USB 5Gbps Header
4x SATA 6Gb/s Ports
2x USB 2.0 Headers
Specifications
Core Specifications
Edition ROG STRIX Z890-A GAMING WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 5 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Thermal Sensor Header
  • 1 x Thunderbolt 4 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11be WiFi 7 + BT5.4
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2 Type-C /w PD
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN152163
Model Number 90MB1I90-M0EAY0
GTIN 4711387758830
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
