ASUS Pro WS TRX50-SAGE WIFI A CEB Workstation Motherboard

ASUS Pro WS TRX50-SAGE WIFI A Motherboard

The ASUS PRO WS TRX50-SAGE WIFI A is a high-end workstation motherboard built for AMD Ryzen Threadripper PRO and Threadripper processors on the sTR5 socket. It supports ultra-fast DDR5 ECC memory, triple PCIe 5.0 x16 slots, and versatile storage including three M.2 PCIe 4.0 slots, SlimSAS, and SATA ports. Featuring Wi-Fi 7, 10Gb + 2.5Gb Ethernet, and USB 20Gbps Type-C connectivity, it delivers exceptional speed and expandability. With robust cooling and ASUS reliability, it’s the ultimate motherboard for professional content creation, 3D rendering, and demanding workloads.

CPU and Memory Overclocking

For AMD Threadripper 9000 & 7000 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI A motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.

Innovative Cooling and Impressive Performance

Premium Power Stages
The Pro WS TRX50-SAGE WIFI A voltage regulator module setup is comprised of 20+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ processors demand, and stability for extreme overclocking.

Active VRM Cooling Solutions
The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins also significantly improve heat dissipation.

ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

Onboard PCIe Power Connectors
An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.

ECC R-DIMM Memory Support
The Pro WS TRX50-SAGE WIFI A motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

Chipset Cooling
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

10 Gb LAN Cooling
An ideally located and extended heatsink on the 10 Gb Ethernet controller ensures the stable performance of high-speed networking anytime, anywhere.

M.2 Cooling
All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.

Ultrafast Connectivity & Networking

Next-gen WiFi 7 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.


Marvell aQtion 10 Gbps Ethernet
With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.

Intel 2.5 Gb ethernet
Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.


USB 20 Gbps with PD
Front panel connector offers a transfer rate of up to 20 Gbps. Supports Power Delivery up to 30 watts, to charge devices faster than previous types of USB ports.

Dual USB Connectivity

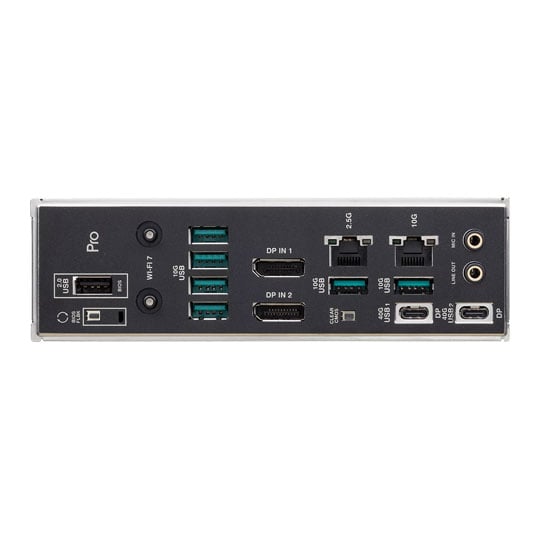

Get immersed in your creations with two USB4® ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K colour-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4® port.

High Capacity Storage

M.2 PCIe 5.0/4.0 slots
The Pro WS TRX50-SAGE WIFI A includes four onboard M.2 slots. Users working with massive files can use RAID to group multiple NVMe devices together for massive I/O bandwidth and speedy data reading and writing. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.

SlimSAS Ports
The Pro WS TRX50-SAGE WIFI A motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.

Innovative Design

PCIe Q-Release Slim
The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot. This design also keeps the original method of removing the graphics card by pushing down on the retention clip.

SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering users to insert modules with speed, accuracy and confidence.

M.2 Q-Release & Q-Latch
The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

Built for Round-The-Clock Operation

Optimised for 24/7 operation, the Pro WS TRX50-SAGE WIFI A motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
• CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
• Ultrafast Connectivity: Three PCIe® 5.0 x16 slots, one PCIe® 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C® ports, and SlimSAS NVMe support
• Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
• Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
