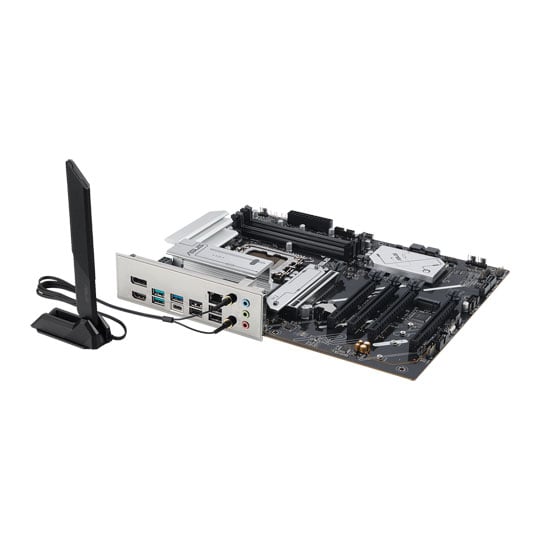

ASUS PRIME B860-PLUS WIFI Intel B860 ATX Motherboard
ASUS PRIME B860-PLUS WIFI, Intel B860, LGA1851, DDR5, PCIe 5.0, 2x M.2, 2.5GbE, ax WiFi 6E/BT, USB 20Gbps Type-C, ATX
Email me when the availability or price changes
-
0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout. More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS PRIME B860-PLUS Wi-Fi
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Robust Power Design
Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
ProCool Connector
Proprietary connectors augment the motherboard’s link to the power supply with 8 pin connector that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.
Power Saving
The Power Saving function contains several settings to easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Digi+ VRM Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimises the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.
Two M.2 slots (up to 128Gbps)
The PRIME B860-PLUS WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by Design
The PRIME B860-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
AIO pump Header
A dedicated PWM/DC header supports self-contained water-cooling setups.
VRM Heatsinks and Thermal Pads
The massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
M.2 Heatsink
One M.2 heatsink takes care of the M.2 slot, preventing throttling that can occur with M.2 storage during extended transfers.
Passive Chipset Heatsink
An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the build-up of dust and debris.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and excess current.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new motherboards, empowering you to build your dream gaming rig.
Empowering Connections
This motherboard offers a versatile range of connectivity, including support for Wi-Fi 6E, PCIe 5.0 slot and an arsenal of USB ports which includes Type-C connections.
Wi-Fi 6E
Built-in Wi-Fi 6E4 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, Wi-Fi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
USB 20Gbps port
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C port with transmission speeds of up to 20Gbps.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Customisation and Personalisation
The PRIME B860-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customisable RGB lighting controls for a uniquely personal system aesthetic.
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
Armoury Crate
Customise Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronisation with compatible hardware.
Addressable Gen2 RGB Headers
Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
DIY Friendly
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during start-up.

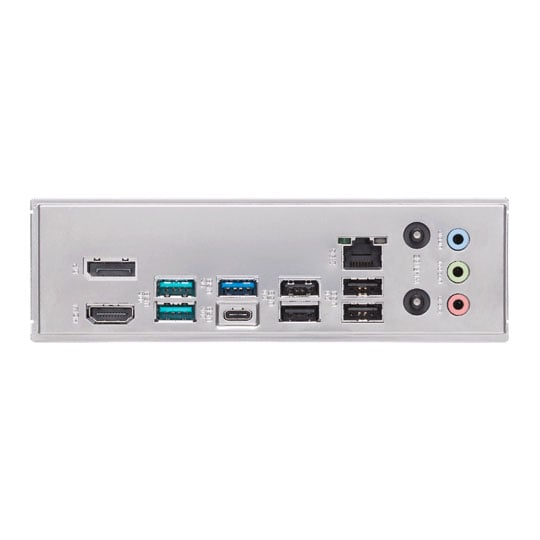

Pre-mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2)
• Enhanced Power Solution: 8+1+1+1 80A DrMOS power stages, 6-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
• Latest M.2 Support: One onboard PCIe 5.0 M.2 slot equipped with one M.2 heatsink and one PCIe 4.0 M.2 slot
• Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 5Gbps Type-C® connector
• Comprehensive Cooling: Enlarged VRM heatsink, one M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• DIY Friendly Design: Q-Dashboard, Q-DIMM, Q-LED, Q-slot and Pre-mounted I/O shield
• Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
• Renowned Software: ASUS DriverHub, ASUS GlideX, ASUS MyHotkey, Aura Sync
