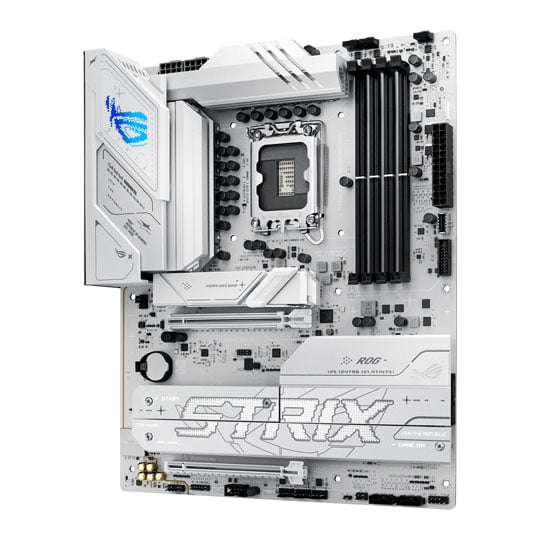

ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
Offer
ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
Scan code: LN154653 Manufacturer code: 90MB1JI0-M0EAY0
Was: £341.99
£319.99
Get it Tomorrow, 16 FebIn stock
  • Thumbnail 1 : ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
  • Thumbnail 2 : ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
  • Thumbnail 3 : ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
  • Thumbnail 4 : ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard
Offer

ASUS ROG STRIX B860-A GAMING WIFI ATX Motherboard

ASUS ROG STRIX B860-A GAMING WIFI, Intel B860, LGA1851, DDR5, PCIe 5.0, 4x M.2, 2.5GbE/WiFi7, USB 4.0, ATX

Scan code: LN154653 Manufacturer code: 90MB1JI0-M0EAY0
Was: £341.99£319.99
Order in the next 1 hr 42 mins and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 16 FebIn stock

Email me when the availability or price changes

  • By DPD On 17th Feb Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £13.34 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £26.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £319.99
    Total inc. interest: £319.99
    Monthly Payment: £13.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £319.99
    Total inc. interest: £319.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £8.50 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Features

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
• Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Networking II
• Exclusive Memory Technologies: DIMM Fit and AEMP III to simplify setup and improve performance
• Robust Power Solution: 16(80A)+1(80A)+2(80A)+1(80A) power stages with ProCool power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads.
• Latest M.2 Support: One PCIe® 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: one Thunderbolt™ 4 USB Type-C® port, USB 20Gbps Type-C rear I/O port, two additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI™ 2.1 and DisplayPort™ 1.4
• High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet
• DIY-Friendly Design: M.2 Q-Release, PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB
• Renowned Software: ASUS DriverHub, Dolby Atmos®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription


Specifications
Core Specifications
Edition ROG STRIX B860-A GAMING WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel B860
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 9000+(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Thermal Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Header
  • 1 x USB4 Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11be WiFi 7 + BT5.4

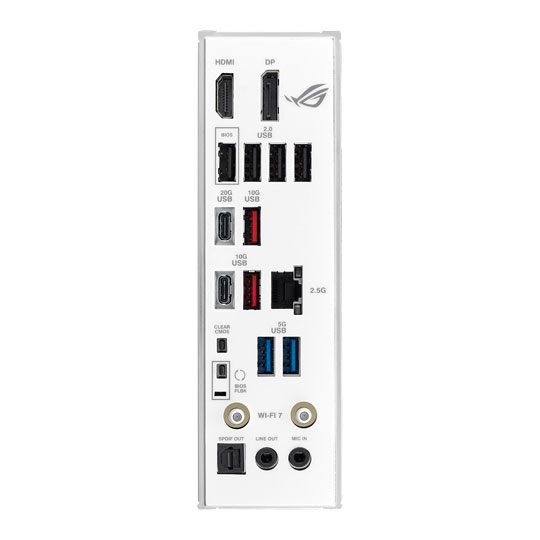

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN154653
Model Number 90MB1JI0-M0EAY0
GTIN 4711387788424
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
