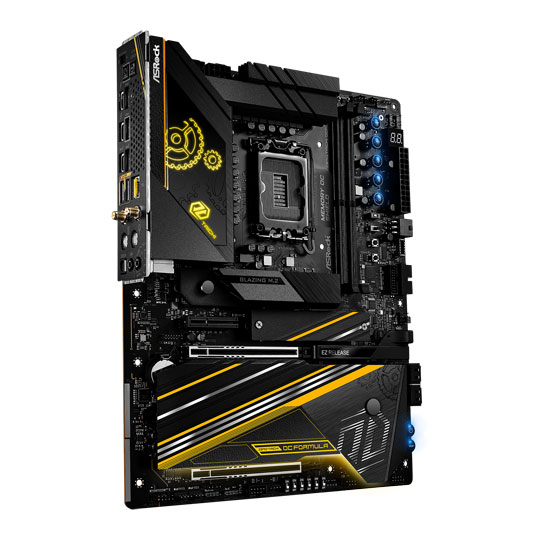

ASRock Z890 Taichi OCF DDR5 PCIe 5.0 ATX Motherboard
ASRock Z890 Taichi OCF, Intel Z890, S 1851, DDR5, PCIe 5.0, 5 x M.2, 5G LAN, WiFi7 / BT 5.4, TB4, ATX
Frequently Bought Together
ASRock Z890 TAICHI OCF WIFI DDR5 Intel ATX Motherboard

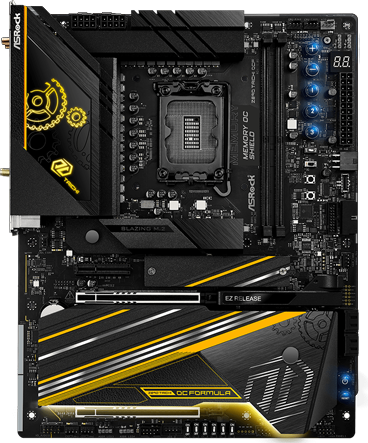

Architect of Mechanical Might The ASRock Z890 Taichi OCF rises like a titan from the depths of an industrial landscape, where molten steel flows through colossal vats and circuit boards stretch into infinity. This ATX motherboard, crafted for serious enthusiasts and gaming experimentalists, is built on the Intel Z890 chipset and supports Socket 1851 with the latest Core Ultra Series 2 processors. It boasts 2 DDR5 DIMMs and dual PCIe 5.0 x16 slots, providing a sturdy foundation for unparalleled performance. With connectivity options that include 802.11be WiFi 7 and 5Gbps LAN, the Taichi OCF is primed to tackle demanding tasks with ease. Its striking industrial design, highlighted by vivid orange stripes, embodies the raw energy and precision of advanced technology, conjuring visions of powerful machinery in motion, relentlessly pushing the limits of overclocking and innovation.
Z890Intel Chipset
LGA 1851CPU Socket
DDR5 DIMMMax. 256GB
ATXForm Factor
Philosophy of Infinite Potential
To embrace the essence of Taichi is to unlock the harmony within oneself and the universe. It is a journey of fluidity and balance, where each movement resonates with the energy of existence. In this realm, you become the observer and the participant, flowing like water, adapting to every shape and circumstance. In the chaos of existence, stillness reveals truth. Reconnect with your inner self, and harness the energy that surrounds you.
Expertly Assembled VRM

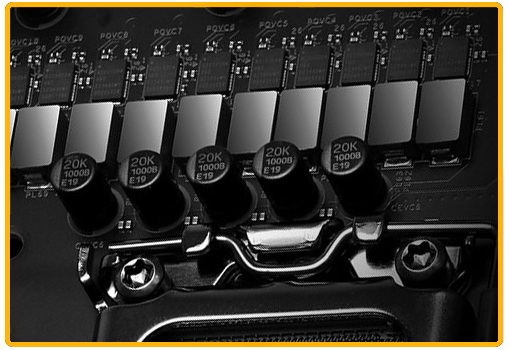

20K CapacitorsThe upgraded 20K Black capacitor is more than just an endurance enhancement, boosting lifespan to 20,000 hours and raising capacitance from 560uF to 1000uF. This upgrade delivers a range of benefits in one compact package: higher capacitance enables more charge storage, supporting the system under heavier loads. Ripple effects are reduced, ensuring smoother power delivery, while stable current output eliminates the risk of voltage instability.
1,000UFCapacitance
20,000HrLifespan

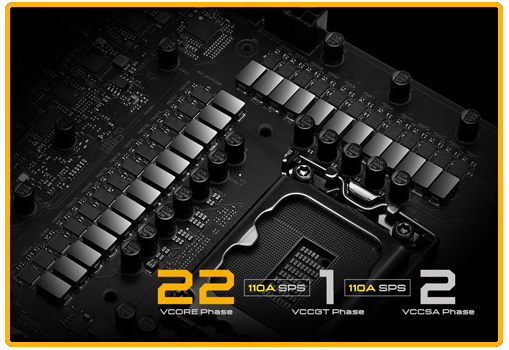

Dr. Mos & Power PhasingSculpted with a monumental 22+1+2 power phase design, this board ensures flawless power delivery to your CPU, widening its hunger for overclocking and a performance boost that advanced gamers crave. The enhanced thermal efficiency keeps temperatures under control, even when pushing your system past its limits. At the heart of this is the Dr.MOS integrated power stage, which streamlines current delivery by optimising each phase for superior thermal management.
22VCORE Phases
1VCCGT Phases
2VCCSA Phases
Forged for Overclocking
BORN TO BURN PAST BOUNDARIESFitted with a heater header for effortless connection of ceramic heating pads directly within the CPU socket, this design prevents the CPU SoC Tile from freezing during extreme LN2 overclocking, unleashing an impressive heating power of up to 42W. This blazing innovation is geared towards igniting maximum overclocking performance, while the motherboard also accommodates the ElmorLabs OC Panel, enabling precise temperature monitoring, voltage adjustments, and enhanced system control, pushing the limits of what's possible.
6 OC PROFILESWith six overclocking profiles ignited through the BIOS, users can fuel their system's performance to new heights. Physical controls allow for live adjustments, letting you harness and unleash raw power with precision. Every tweak accelerates your system, pushing its energy reserves to the absolute limit.

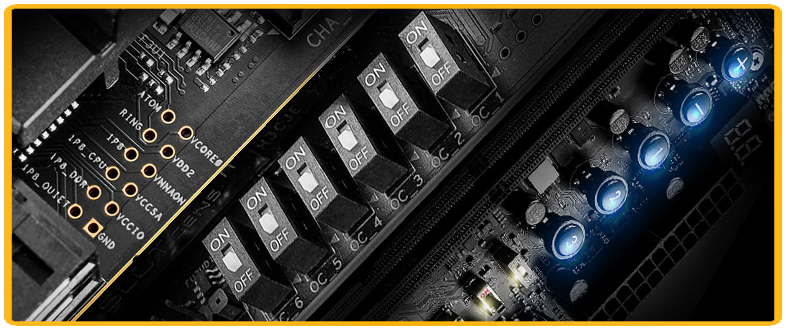

V-PROBEV-Probe™ onboard voltage measurement points allow you to tap into the system's core energy, measuring current voltage levels and overclocking intensity. This feature provides real-time insight into the heart of your system, enabling you to stoke the flames of performance and maintain stability in the heat of overclocking.
OC BUTTONSAdjust frequency on the fly, while preset OC profiles (1, 2, or 3) load instantly. LN2 mode resolves cold-boot issues for liquid nitrogen setups, and Slow Mode stabilises extreme overclocking by lowering CPU frequency. For quick recovery, the Retry button forces immediate restarts, and the Safe Boot button resets to BIOS defaults effortlessly.

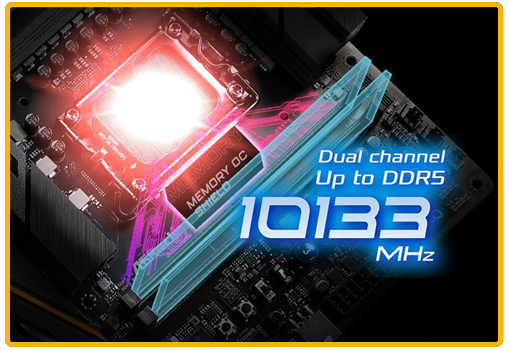

Unlock Memory Overclocking
10-Layer 2oz PCBPower fires through the 10-layer PCB, carried by 2oz copper that stabilises signal traces with unwavering precision. It reinforces thermal management and maintains signal integrity, providing a solid foundation for high-performance memory modules. With every current, DDR5 is pushed to its limits, driving speed and efficiency with fantastic reliability, no matter the demand.
DDR5 XMP & EXPOASRock’s commitment to stability and reliability shines through every layer of its design. By enabling pre-tested profiles, users can push the limits of their system with confidence. For seamless overclocking, ensure that your memory modules are Intel® XMP or AMD EXPO™ compatible.
Pulsing With PCI
x1
x5
Express ExcellenceASRock's Blazing M.2 technology ignites your system with electrifying speed, harnessing the power of PCI Express 5.0 to deliver an astonishing 128GB/s transfer rate. This rapid flow of data invigorates your data access, making game loading times vanish and ensuring that every command is executed in a heartbeat. Enhanced by dual Hyper Gen4 M.2 slots, which are double the speed of the previous line, this synergy between speed and power allow for a seamless surge of performance, giving you the power to commnand a fleet of high-capacity SSDs at will.
No Tools NeededASRock introduces an innovative M.2 heatsink quick release mechanism, simplifying the installation process and allowing for effortless upgrades without tools.
Smooth Heat DissipationThe M.2 bottom heatsink efficiently dissipates heat from the SSD through the motherboard PCB, optimising performance while ensuring system stability.
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Comprehensive Thermal Management

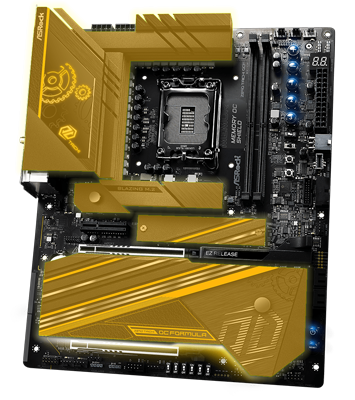

Aluminium Heatsink An optimised aluminium heatsink is used for efficient heat dissipation under heavy workloads such as gaming or productivity tasks. This ensures effortless system stability and durability.
PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Thermistor Header The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customised thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI.

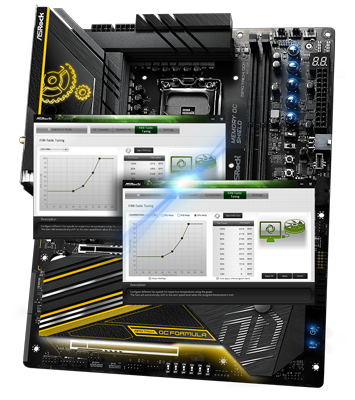

Fan-Tastic Tuning The Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the UI, meeting the system's cooling performance and noise requirements.
Freedom & Flexibility
User-Friendly Design With comprehensive control over cooling and lighting, users can effortlessly optimise performance while tailoring their rig to perfection. This board stands as the ultimate ally for creating a unique system, allowing for maximum creativity with minimal hassle.
Slot-in StabilityInstall your powerful graphics card onto the holder and secure it tightly with screws. With a flexible design, the holder allows you to adjust the height as needed, ensuring perfect placement for optimal support and stability.
Pushing the Envelope of Connectivity

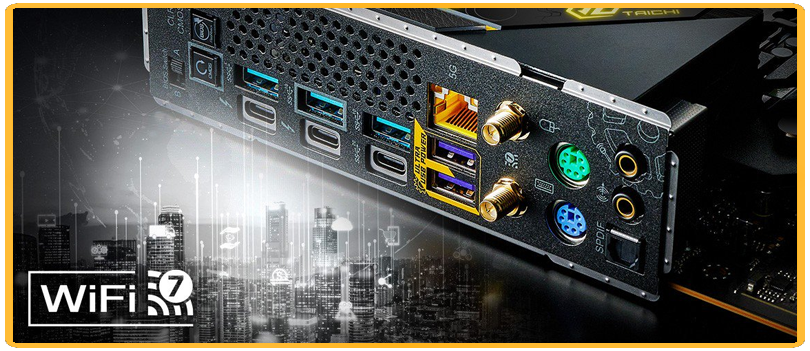

The Power of Wi-Fi 7 Blending Multi-Link Operation (MLO) for simultaneous multi-band connections, 4K QAM for enhanced data transmission, and MU-MIMO to support multiple devices at top speed, Wi-Fi 7 truly is the forefront of speed. Its 320 MHz wide channels provide massive bandwidth, while the improved OFDMA ensures efficient data delivery.

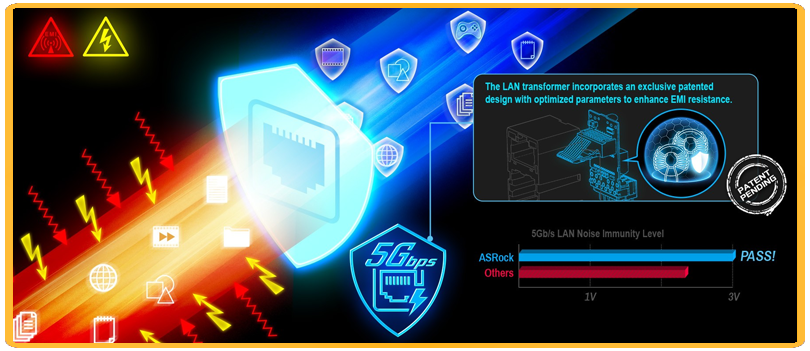

AI-Driven Intel Killer®ASRock’s 5Gbps LAN connector channels energy with precision, carving its path through a design built to resist interference. The flow remains steady, unprovoked by the noise around it, ensuring a seamless and uninterrupted connection. It’s the power behind every packet of data, moving with purpose, maintaining speed, and stability, even when the environment pushes back.

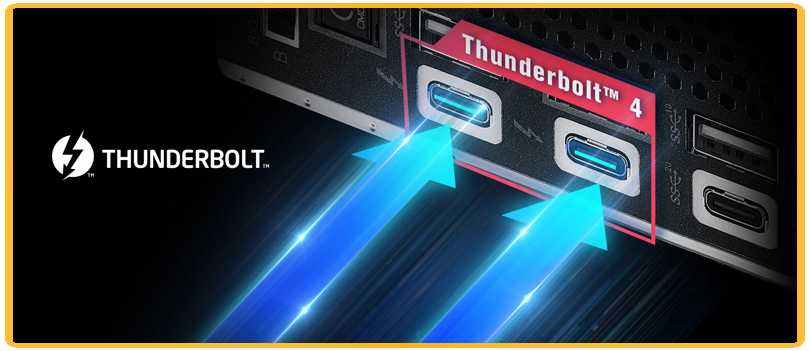

Lightning Fast USB4This motherboard features the cutting-edge USB Type-C interface, capable of blazing data transfer speeds of up to 40Gbps, streamlining your workflow whether at work or home. Experience the seamless fusion of speed and functionality, empowering you to push the boundaries of your digital world.

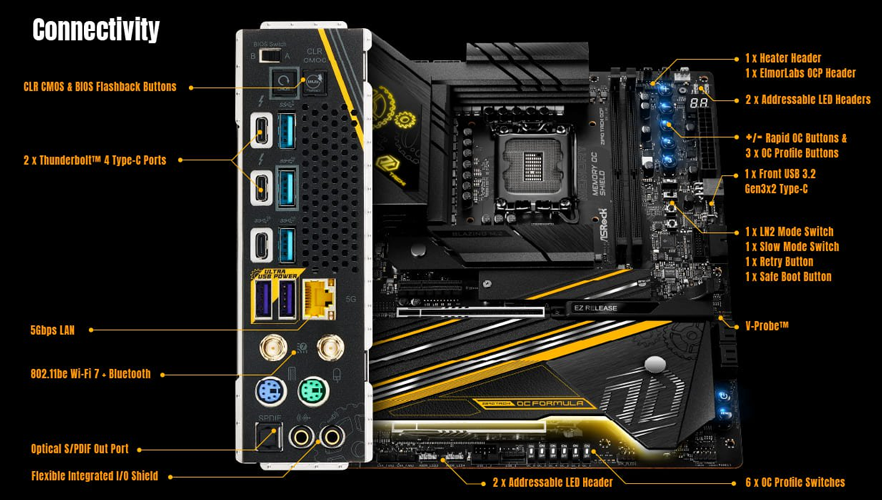

Unlimited Connections
-

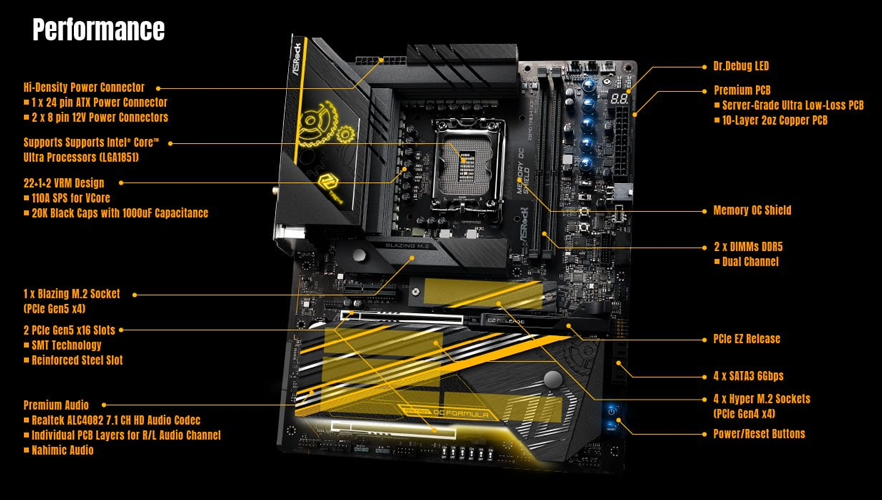

Performance See full performance features
Connectivity See full connectivity features

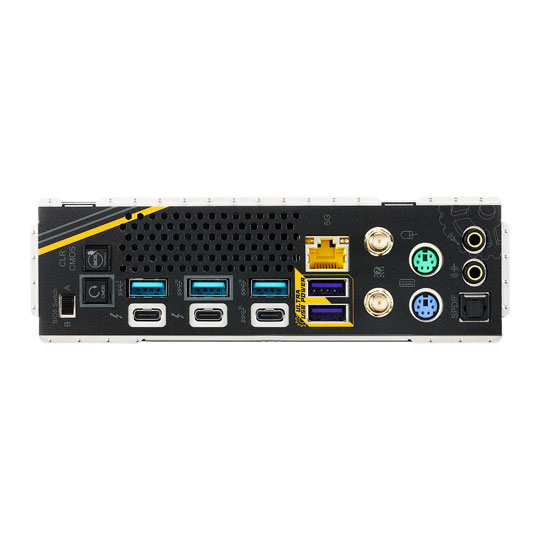

Integrated I/O Shield The I/O shield features include 1 PS/2 keyboard port, 1 PS/2 mouse port, and 1 optical SPDIF out port. It also boasts 2 Thunderbolt™ 4 Type-C ports, 1 USB 3.2 Gen2x2 Type-C port, and 4 USB 3.2 Gen2 Type-A ports. Additionally, there’s 1 USB 3.2 Gen1 port, 1 RJ-45 LAN port, and buttons for Clear CMOS and BIOS Flashback, along with a BIOS selection switch.
