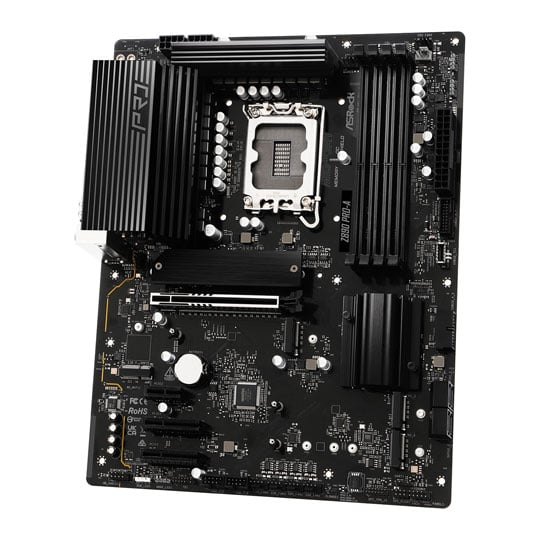

ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard
ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN152515 Manufacturer code: 90-MXBP50-A0UAYZ
£181.99
Get it Tomorrow, 15 DecIn stock
  • Thumbnail 1 : ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard

ASRock Z890 Pro-A DDR5 PCIe 5.0 ATX Motherboard

ASRock Z890 Pro-A, Intel Z890, S 1851, DDR5, PCIe 5.0, 4x M.2, 2.5G LAN, TB4 / USB 3.2 Gen2, ATX

Scan code: LN152515 Manufacturer code: 90-MXBP50-A0UAYZ
£181.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 15 DecIn stock
  • By DPD On 16th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.17 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £181.99
    Total inc. interest: £181.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

ASRock Z890 Pro A DDR5 Intel ATX Motherboard

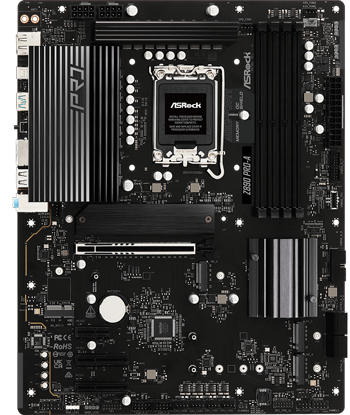

ASRock Pro A Z890 DDR5 Intel Motherboard for Intel Core Ultra Series 2

SMASH EVERY TASK Engineered for precision and efficiency, the ASRock Z890 Pro-A is the perfect motherboard for those who demand peak performance in professional environments. Built on the Intel Z890 chipset with support for Socket 1851 and the latest Core Ultra Series 2 processors, this ATX board is tailored for high-end calculations and workflows. Equipped with DDR5 memory and PCIe 5.0, it is designed to handle intensive tasks with speed and stability. The 2.5Gbps LAN ensures fast, reliable networking, while Thunderbolt™ 4 and USB 3.2 Gen2x2 provide seamless connectivity for high-speed data transfers, making it ideal for professional users who need reliability and precision in their computing environment.

Z890Intel Chipset

LGA 1851CPU Socket

DDR5 DIMMMax. 256GB

ATXForm Factor

Expertly Assembled VRM

High-Quality Caps

20K CapacitorsThe upgraded 20K Black capacitor is more than just an endurance enhancement, boosting lifespan to 20,000 hours and raising capacitance from 560uF to 1000uF. This upgrade delivers a range of benefits in one compact package: higher capacitance enables more charge storage, supporting the system under heavier loads. Ripple effects are reduced, ensuring smoother power delivery, while stable current output eliminates the risk of voltage instability.

1,000UFCapacitance

20,000HrLifespan

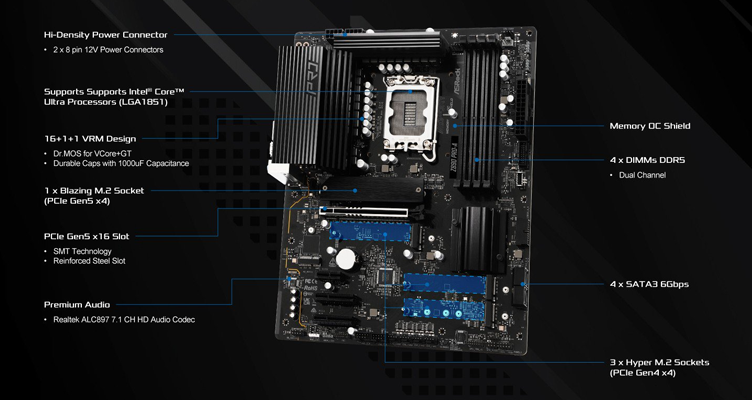

16+1+1 Phases

Dr. Mos & Power PhasingBuilt with a robust 16+1+1 power phase design, this board ensures flawless power delivery to your CPU, setting the stage for seamless overclocking and a performance boost that advanced gamers crave. The enhanced thermal efficiency keeps temperatures under control, even when pushing your system to its limits. At the heart of this is the Dr.MOS integrated power stage, which streamlines current delivery by optimising each phase for superior thermal management.

16VCORE Phases

1VCCGT Phases

1VCCSA Phases

Durable Power Connections

Hi-Density ConnectionFor demanding CPU overclocking, higher currents are essential, and this is where ASRock’s Hi-Density Power connectors come into play. Designed to endure significantly higher currents than traditional 8-pin CPU and 24-pin ATX connectors, they offer improved stability and security. These connectors provide peace of mind to overclockers and ensure the system remains cool and controlled, even under intense conditions.

Unlock Memory Overclocking

PCB

6-Layer 2oz PCBPower flows through the 6-layer PCB, carried by 2oz copper that stabilises signal traces with unwavering precision. It reinforces thermal management and maintains signal integrity, providing a solid foundation for high-performance memory modules. With every current, DDR5 is pushed to its limits, driving speed and efficiency with fantastic reliability, no matter the demand.

XMP

DDR5 XMP & EXPOASRock’s commitment to stability and reliability shines through every layer of its design. By enabling pre-tested profiles, users can push the limits of their system with confidence. For seamless overclocking, ensure that your memory modules are Intel® XMP or AMD EXPO™ compatible.

Pulsing With PCI

x1

x3


Express ExcellenceASRock's Blazing M.2 technology ignites your system with electrifying speed, harnessing the power of PCI Express 5.0 to deliver an astonishing 128GB/s transfer rate. This rapid flow of data invigorates your data access, making game loading times vanish and ensuring that every command is executed in a heartbeat. Enhanced by dual Hyper Gen4 M.2 slots, which are double the speed of the previous line, this synergy between speed and power allow for a seamless surge of performance, giving you the power to commnand a fleet of high-capacity SSDs at will.

No Tools NeededASRock introduces an innovative M.2 heatsink quick release mechanism, simplifying the installation process and allowing for effortless upgrades without tools.

Smooth Heat DissipationThe M.2 bottom heatsink efficiently dissipates heat from the SSD through the motherboard PCB, optimising performance while ensuring system stability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Intelligent Cooling Solutions

Aluminium Heatsink

Aluminium Heatsink An optimised aluminium heatsink is used for efficient heat dissipation under heavy workloads such as gaming or productivity tasks. This ensures effortless system stability and durability.

PWM/DC Fan Support

PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Fan-Tastic Tuning

Fan-Tastic TuningThe Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the UI, meeting the system's cooling performance and noise requirements.

Nahimic Audio

Nahimic Audio

Audio Matters Nahimic Audio delivers an immersive listening experience that is vibrant and rich in detail, regardless of whether you're using headphones, a headset, external or internal speakers.

Clear Communication Powerful algorithms deliver clear, noise-free conversations with consistent vocal levels, enhancing sound quality and reducing interference for better clarity and less fatigue.

Sound Tracker The Sound Tracker visually indicates the direction of prominent sounds, displaying them in a 360° radar for complete immersion during gameplay.

Pushing the Envelope of Connectivity

The Power of Wi-Fi 6E Wi-Fi 6E introduces the 6 GHz band for faster, congestion-free connections, while supporting OFDMA for efficient data delivery and MU-MIMO to keep multiple devices running smoothly. With 160 MHz wide channels, it offers substantial bandwidth, ideal for high-speed, uninterrupted streaming and gaming experiences.

Dragon 2.5Gg LAN ASRock’s 5Gbps LAN connector channels energy with precision, carving its path through a design built to resist interference. The flow remains steady, unprovoked by the noise around it, ensuring a seamless and uninterrupted connection. It’s the power behind every packet of data, moving with purpose, maintaining speed, and stability, even when the environment pushes back.

Lightning Fast USB4 This motherboard features the cutting-edge USB Type-C interface, capable of blazing data transfer speeds of up to 40Gbps, streamlining your workflow whether at work or home. Experience the seamless fusion of speed and functionality, empowering you to push the boundaries of your digital world.

Unlimited Connections

  • Performance See full performance features

    Click to Zoom

    Connectivity See full connectivity features

    Click to Zoom

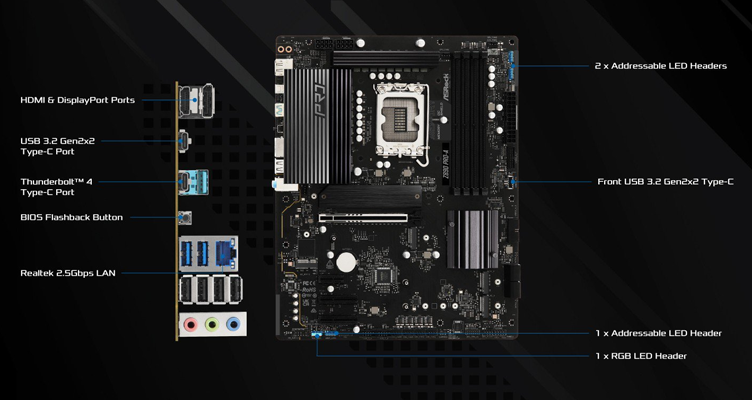

Integrated I/O Shield The I/O plate features a robust selection of connectivity options, including an HDMI port, a DisplayPort 1.4, and a Thunderbolt™ 4 Type-C port for high-speed data transfer. It also includes a USB 3.2 Gen2x2 Type-C port, a USB 3.2 Gen2 Type-A port, and two USB 3.2 Gen1 ports, along with four USB 2.0 ports for versatile peripheral connections. Networking is facilitated by an RJ-45 LAN port, while audio jacks for line-in, front speaker, and microphone ensure comprehensive sound capabilities. Additionally, a BIOS flashback button enhances usability.

Specifications
Core Specifications
Edition ASRock Z890 Pro-A
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 9200+(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 4.0 x1
  • 2 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 5 x 4-pin CHA_FAN connector
  • 2 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)

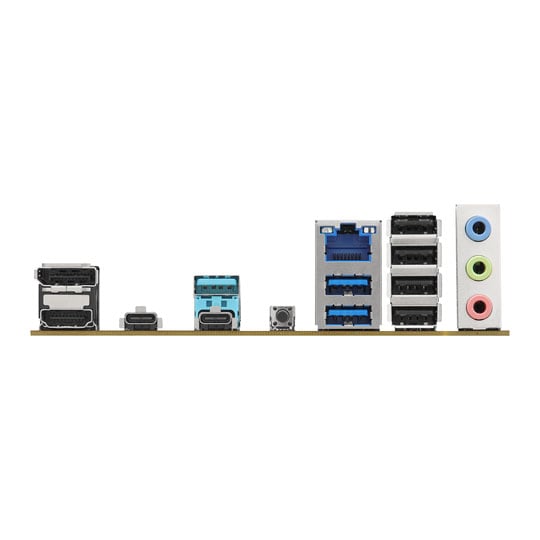

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x USB 4.0 Type-C/Thunderbolt 4
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN152515
Model Number 90-MXBP50-A0UAYZ
GTIN 4710483947537
