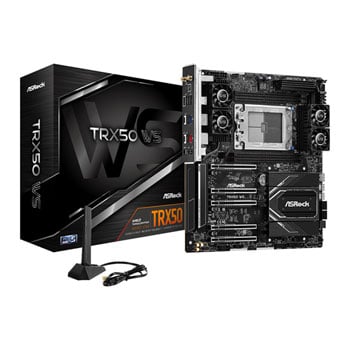

ASRock Threadripper 7000 / Pro TRX50 WS PCIE 5.0 eATX Motherboard

ASRock TRX50 WS, AMD TRX50, sTR5, DDR5, 2x M.2, MCIO, SlimSAS, 10/2.5GbE, AX WiFi, USB 3.2 Gen2x2, E-ATX

Thumbnail 1 : ASRock Threadripper 7000 / Pro TRX50 WS PCIE 5.0 eATX Motherboard Thumbnail 2 : ASRock Threadripper 7000 / Pro TRX50 WS PCIE 5.0 eATX Motherboard Thumbnail 3 : ASRock Threadripper 7000 / Pro TRX50 WS PCIE 5.0 eATX Motherboard Thumbnail 4 : ASRock Threadripper 7000 / Pro TRX50 WS PCIE 5.0 eATX Motherboard
Scan code: LN142672 Manufacturer code: 90-MXBN40-A0UAYZ
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Was: £789.98
£769.99
Get it Tomorrow, 25 FebIn stock
From £26.97 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £69.76
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £837.09
Monthly Payment: £37.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £902.29
Monthly Payment: £26.97
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £970.58
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £20.46 / month (APR 19.9%)
Delivery Options
  • By DPD On 26th Feb to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Dependable and Versatile Workstations Motherboard

Designed to deliver powerful performance, manageability and reliability for high speed computing workstations.


Long Lasting 20K Cap

20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.


18+3+3 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.


Hi-Density Power Connector

CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.


Server Grade Ultra Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.


2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.


12 Layer PCB

The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.


Composite VRM Heatsink

It is equipped with a composite VRM heatsink active cooling fans, XXL aluminium heatsinks and heat pipe for maximum heat dissipation


DDR5 ECC Memory Support

Supports 4 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.


3 x PCIe Gen5 x16

With AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series processors, ASRock TRX50 WS supports 3 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fulfil all the professional design, deep learning, simulation and rendering applications.


Multi PSU Adaptor Cable

Users can easily add a secondary power supply via Multi PSU Adaptor Cable and ATX_Con header, allowing users to build a high performance with wider combinations of high wattage power supply.


PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.


Server Grade Storage Connections

Equipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions.


Ultimate Network Connectivity

Equipped with Marvell10 GbE & Realtek 2.5 GbE LAN to ensure superfast file-transfer speed to local server, NAS or Cloud storage.


Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.


USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.


Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.


Ultimate Gaming Experience

Sound Tracker: The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!: Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.


Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!


BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.


Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.


Features


• Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors.
• 18+3+3 Power Phase Design, 110A SPS Design.
• Supports 4 DIMMs DDR5 ECC Registered memory.
• 3 PCIe 5.0 x16, 2 PCIe 4.0 x16.
• Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio.
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 MCIO (PCIe Gen5 x4), 2 SlimSAS (PCIe Gen4 x4 / 4 SATA3).
• 1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (Front).
• Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN.
• 802.11ax WiFi 6E + Bluetooth.

Specifications
Core Specifications
Edition TRX50 WS
Form Factor E-ATX
CPU Socket TR5
Chipset AMD TRX50
RAM Memory Support
Memory Type DDR5
Memory Channel Quad (4)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 1TB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
  • 3 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 6-pin (Power)
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power Button with LED
  • 1 x Reset Button with LED
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x SlimSAS Connector
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Dragon RTL8125BG (2.5GbE LAN)
  • 1 x Marvell AQtion AQC113CS 10GbE

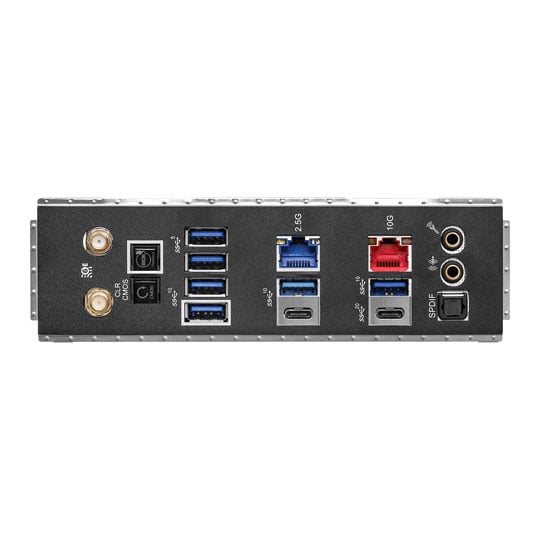

Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 277 mm
