ASRock SPC621D8-2L2T Server Motherboard

ASRock SPC621D8-2L2T Xeon Server Motherboard, S P+ LGA 4189, DDR4, SATA3, 10GbE, USB 3.2 Gen1, ATX
MORE INFO
MORE INFO

Scan code: LN123970 Manufacturer code: SPC621D8-2L2T
£879.98
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £30.82 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £73.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £879.98
    Total inc. interest: £879.98
    Monthly Payment: £36.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £879.98
    Total inc. interest: £879.98
    Monthly Payment: £30.82
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £879.98
    Total inc. interest: £1,109.28
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £23.38 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Server Class Motherboard

This new Supermicro Solution for 3rd Gen Intel® Xeon® Scalable processors is a server-class motherboard offering a wide range of high performance, network appliance and embedded/IoT applications.

Features

• ATX (12" x 9.6").
• Supports 3rd Gen Intel® Xeon® Scalable Processors.
• 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory.
• 4 PCIe4.0 x16, 3 PCIe4.0 x8.
• Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s).
• 8 SATA 6Gb/s (including 2 ports from M.2).
• 2 RJ45 (10GbE) by Intel® X710-AT2, 2 RJ45 (1GbE) by Intel® i210.
• Remote management (IPMI).

Specifications
Core Specifications
Edition SPC621D8-2L2T
Form Factor ATX
CPU Socket 4189
Chipset
RAM Memory Support
Memory Type DDR4
Memory Channel
Memory Type (ECC)
Memory Type (R/U) RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 256GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 4 x PCIe 4.0 x16
  • 4 x PCIe 4.0 x8
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x Buzzer
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS (Short Pad)
  • 5 x Fan Header
  • 1 x IPMB Connector/Header
  • 1 x LAN Activity LEDs
  • 1 x ME/SPS Recovery
  • 1 x PMBUS Header
  • 1 x Serial (COM) Header
  • 1 x SGPIO header
  • 1 x SMBus header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 2 x USB 3.2 Gen2 Header
  • 1 x VGA connector
  • 1 x VROC Connector
External Connectivity
Network Interface Type
  • Dedicated Management Ports
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Dedicated Management Ports
  • 2 x Intel® I210 (Gigabit LAN)
  • 2 x Intel® X710-AT2 (10G LAN)

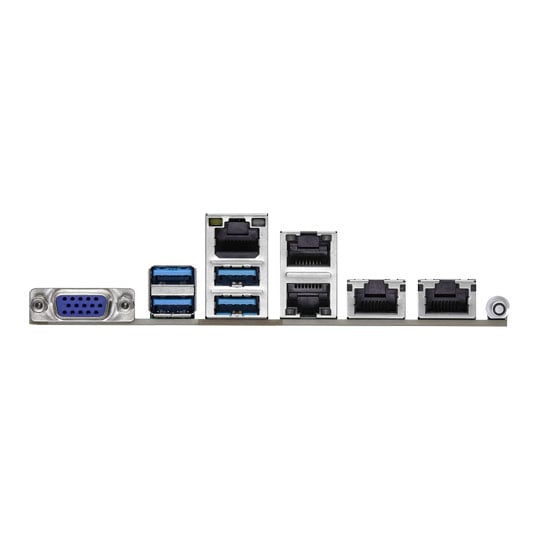

Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 2 x 10GbE RJ45
  • 1 x Mgmt LAN
  • 1 x UID Button/UID LED
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 304.8 x 243.84 mm
