Product Overview

ASRock SP2C741D16-2T

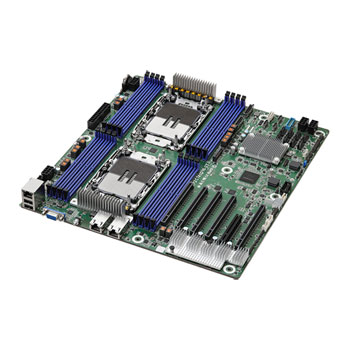

The ASRock SP2C741D16-2T is a high-performance EEB motherboard (12.12'' x 13.3'') designed for enterprise and data center applications. It supports 5th and 4th Gen Intel® Xeon® Scalable Processors, providing robust processing power for demanding workloads. With 8+8 DIMM slots for DDR5 RDIMM/RDIMM-3DS, it ensures ample memory capacity and speed. The motherboard features extensive connectivity options, including five PCIe 5.0/CXL1.1 x16 slots, one PCIe 5.0 x8 slot, two MCIO (PCIe 5.0 x8), and three OCuLink (PCIe 3.0 x4 or 4 SATA 6Gb/s). It also supports up to 13 SATA 6Gb/s devices and one M.2 (PCIe 5.0 x4) slot for high-speed storage solutions. Dual RJ45 10GbE ports by Intel X710-AT2 deliver fast and reliable network connections, while remote management (IPMI) enhances system administration and monitoring. The ASRock SP2C741D16-2is an ideal choice for building powerful and scalable server systems.

Features

• EEB (12.12" x 13.3").
• Supports 5th and 4th Gen Intel® Xeon® Scalable Processors.
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS.
• 5 PCIe5.0 / CXL1.1 x16.
• 1 PCIe5.0 x8.
• 2 MCIO (PCIE5.0 x8).
• 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s).
• Supports 1 M.2 (PCIe5.0 x4).
• Up to 13 SATA 6Gb/s.
• 2 RJ45 (10GbE) by Intel X710-AT2.
• Remote management (IPMI).

Specifications
Core Specifications
Edition ASRock SP2C741D16-2T
Form Factor EEB
CPU Socket 4677
Chipset Intel
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U) RDIMM / RDIMM 3DS
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5600
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 2 x MCIO (PCIe 5.0 x 8)
  • 5 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x8
  • 13 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 4 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x Clear CMOS (Short Pad)
  • 1 x IPMB Connector/Header
  • 1 x NMI Header
  • 1 x PMBus Connector
  • 1 x Serial (COM) Header
  • 1 x SGPIO header
  • 1 x SMBus header
  • 8 x System Fan header
  • 1 x System panel connector
  • 1 x TPM Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x VGA connector
  • 1 x VROC Connector
External Connectivity
Network Interface Type Dual Wired 10G LAN
Network Chip/Modules

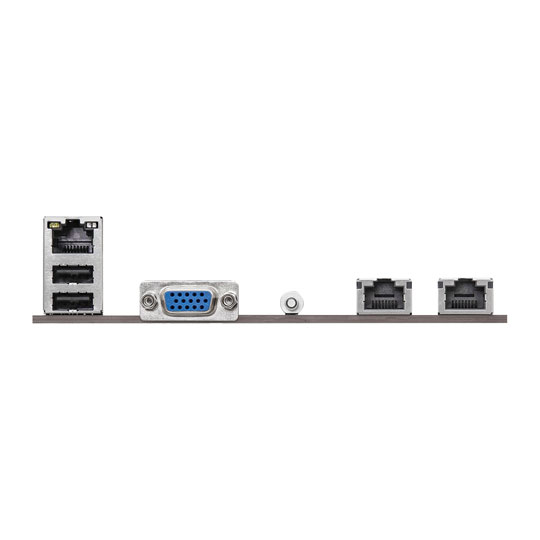

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 2 x RJ-45
  • 1 x RJ45 Dedicated IPMI port
  • 1 x UID Button/UID LED
  • 2 x USB 2.0
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 307 x 337.82 mm
