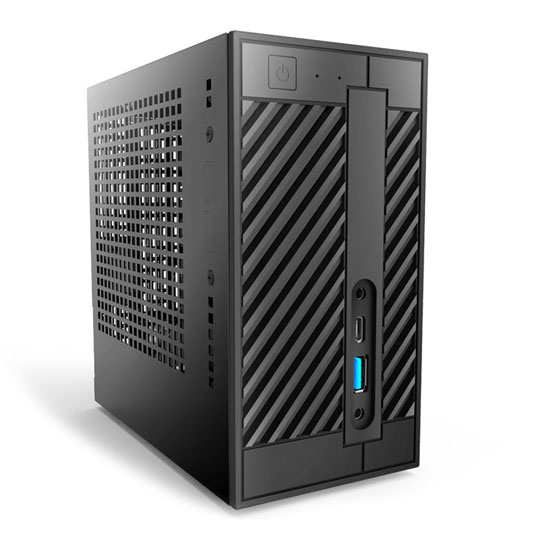

ASRock DeskMini A300 Barebone DiY PC AMD AM4 CPU upto 65W (SODIMM Memory & Storage Required HDD/SSD)

ASRock DeskMini A300, S AM4, Dual DDR4 SO-DIMM, SATA III 6Gb/s, M.2, RAID 0/RAID 1, DP/HDMI/VGA, USB 3.1 Type A + C

Free Bullguard Internet Security 2020 3 User/1 year Worth 19.99 - LN 90580
Thumbnail 1 : ASRock DeskMini A300 Barebone DiY PC AMD AM4 CPU upto 65W (SODIMM Memory & Storage Required HDD/SSD) Thumbnail 2 : ASRock DeskMini A300 Barebone DiY PC AMD AM4 CPU upto 65W (SODIMM Memory & Storage Required HDD/SSD) Thumbnail 3 : ASRock DeskMini A300 Barebone DiY PC AMD AM4 CPU upto 65W (SODIMM Memory & Storage Required HDD/SSD)
Scan code: LN98198 Manufacturer code: 90BXG3G01-A30GA0W
Was: £155.99
£139.98
Order now and receive it between 31st Mar and 2nd Apr
From £12.57 / month (APR 14.9%)
Monthly Payment: £24.29
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.98
Total inc. interest: £145.75
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.98
Total inc. interest: £150.79
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 31st Mar To 2nd Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Insane Memory Performance

ASRock DeskMini A300 supports Dual Channel DDR4-3200+MHz (OC) memory, up to 32GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini A300 provides awesome 3D performance.


4X Storages

• ASRock DeskMini A300 supports up to 4 Storages
• M2_1 M.2 (2280) –PCIe Gen3 x4
• M2_2 M.2 (2280) –PCIe Gen3 x2/x4
• 2x 2.5” SATA 6Gb SSD/HDD Tray


Mini Home Data Center

• DeskMini A300 supports RAID 0/1 function!
• RAID 0 –offers superior I/O performance
• RAID 1 –protects critical data in mirrored data


Heatsink on MOSFET

ASRock DeskMini A300 features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.


Triple Display

• DeskMini A300 supports 3 display output simultaneously
• Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.


AMD Fluid Motion

• Smooth video playback with lower power APUs.
• High Quality Frame Rate Conversion
• Interpolates frames using GPU compute
• Removes Video Judder


USB Type-C

A Type-C USB 3.1 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.


Features

AMD AM4 Socket CPU
• Raven Ridge, Bristol Ridge, up to 65W
• Support MAX Height 46mm CPU Cooler

High-Speed DDR4 Memory
• DDR4-2933MHz (Ryzen)
• DDR4-2400MHz (A-series)

Dual Ultra M.2 (NVMe)
• M2_1 M.2 (2280) – PCIe Gen3 x4
• M2_2 M.2 (2280) – PCIe Gen3 x2/x4

2x 2.5” SATA6Gb Hard Drive
• Support RAID 0/1 function
• HDMI, DisplayPort, D-Sub
• AMD Fluid Motion Technology
• M.2 For Wi-Fi Module
• USB 3.1 Gen1 Type-C



Supported AMD Socket AM4 Processors

The ASRock DeskMini A300 supports all AMD Socket AM4 processors that include intergrated graphics, with a TDP under 65W. It does not support processors that do not include integrated graphics. Officially supported processors are:

Ryzen 5 3400GE (may require BIOS update)
Ryzen 5 3400G (may require BIOS update)
Ryzen 5 PRO 2400GE
Ryzen 5 PRO 2400G
Ryzen 5 2400GE
Ryzen 5 2400G
Ryzen 3 3200GE (may require BIOS update)
Ryzen 3 3200 (may require BIOS update)
Ryzen 3 PRO 2200GE
Ryzen 3 PRO 2200G
Ryzen 3 2200GE
Ryzen 3 2200G
A10-9700E
A8-9600
A6-9550
A6-9500E
A6-9500
Athlon 3000G (may require BIOS update)
Athlon 240GE
Athlon 220GE
Athlon PRO 200GE
Athlon 200GE
Specifications
Edition DeskMini A300
Form Factor Mini STX
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket AM4
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200+(OC)
Max. Memory Capacity 32GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 2 x PCIe 3.0 x4
  • 2 x SATA 6GB/s
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 2 x 2.5" Internal
Backplane I/O
RAID Support RAID-0/RAID-1
Internal I/O
  • 2 x 4-pin Fan
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x DC-In (+19V~28V)
  • 1 x Front Panel Connector
  • 1 x M.2 Socket 1 with E key, type 2230 Wi-Fi devices
  • 1 x USB 2.0 Header
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Front Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Back Panel
  • 1 x D-Sub (VGA) Out
  • 1 x DC-In Jack
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x USB 2.0
  • 1 x USB 3.1 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 120 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 155 x 80 x 155 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN98198
Model Number 90BXG3G01-A30GA0W
GTIN 4717677337389
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
ASRock DeskMini A300, S AM4, Dual DDR4 SO-DIMM, SATA III 6Gb/s, M.2, RAID 0/RAID 1, DP/HDMI/VGA, USB 3.1 Type A + C is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Great little unit., unobtrusive and does the job! I bought this for business use as i wanted a computer that I could hide away behind a monitor. I did want to pair it with a Ryzen 3400G, but was put off by the fact that you can't update the BIOS to accept it without a recognised CPU installed. So I had to plum for the 2400G, which is still pretty nippy for office use. There isn't much help from the website regarding a suitable Wifi module, and the Intel Wifi module I installed did not work, until I figured out that I needed to install an external antenna (even though it is meant to not require one) Once in, however, it has worked like a dream! Considering this is my first build, it was pretty straightforward. Very pleased apart from minor niggles.
Date published: 2020-02-27
Rated 5 out of 5 by from Fabulous little box I installed a AMD Ryzen™ 3 3200G with the stock cooler (I had to remove the shroud to make it fit) and I'm using it as a media server in my lounge. The small form factor is ideal and it runs silent in this configuration (important for me); I'm very pleased with the use case.!
Date published: 2020-02-03
Rated 5 out of 5 by from Great little SFF PC This is a great little SFF/ Media PC. Thanks to the AM4 socket it can handle up to a Ryzen 5 2400G so it could even be used as a tiny 720p/1080p gaming PC, which is what I have done with mine. I have also added in 16GB of DDR4 3000 SODIMM RAM and a 250GB NVME and 1TB HDD. The description on the site says the APU cooler is optional, however it is actually included in the box. However I cannot comment on how good it is as I am using the Wraith Stealth cooler that came with the APU (it just fits with the top plastic shroud removed, however it is a very tight fit so may change to the included cooler at some point). The one I bought also only came with an EU power cable, no UK one. This wasnt an issue for me as I have lots of EU-UK adaptors. The only possible downside is there is no wifi included as standard, this is an optional extra. There is also a VESA mount and a USB kit available as optional extras. This is the smallest AMD form factor out there so if you want a tiny AMD PC I'd definitely recommend this!
Date published: 2019-05-21
  • y_2020, m_3, d_28, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_98198, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is the Bios version up to date? (ver 3.50) Will this support 3200g/3400g APU's out the box?

Asked by: amdamd
I installed AMD Ryzen™ 3 3200G and had no problems (out of the box). Sorry I cant tell you the bios version.
Answered by: OrangeReaper
Date published: 2020-02-03

Will this board support the ryzen 5 3400g. That being said I mean the bios will that support it out of the box or will a bios update be needed.

That is the cpu I plan on using in this as I don't have another cpu in order to flash the bios before the new cpu being installed.
Asked by: EpicRitchie
Good Morning, Unfortunately, the manufacturer has not listed the model of the motherboard used in this barebones PC. So I would recommend contacting them directly and they should be able to provide this information for you. Kind Regards,
Answered by: LukeW
Date published: 2020-01-17
