ASRock B860M-X WiFi DDR5 PCIe 4.0 Intel MicroATX Motherboard

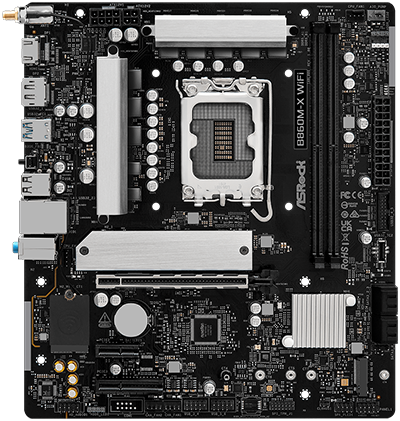

ASRock B860M-X Motherboard for Intel Core Ultra Series 2 Processors, X-Series

Compact but Capable The ASRock B860M-X micro-ATX motherboard, part of the ASRock X-Series, delivers a compact yet capable solution for Intel Core Ultra Series 2 processors. Staying true to the X-Series’ focus on high-value performance, it seamlessly combines advanced technology with an accessible price point. To enhance connectivity, the board includes WiFi 6E, USB 3.2 Gen2x2, and 2.5GbE LAN, ensuring smooth communication across devices. Furthermore, its two M.2 slots—one leveraging PCIe 4.0 and the other PCIe 5.0—offer a substantial speed boost for storage performance. Complementing these features is a reinforced PCIe 4.0 x16 slot for dependable GPU support, making the B850M-X an outstanding choice for compact, high-performance systems.

B860Intel Chipset

LGA 1851CPU Socket

DDR5 DIMMMax. 128GB (Single Channel)

Micro-ATXForm Factor

Expertly Assembled VRM

High Quality Capacitors, Robust VRM, Durable Connectors

World-Class ConstructionWith careful placement of high-tolerance capacitors and robust connectors, every ASRock board promises durability. By incorporating Dr. MOS and SPS into their VRM design, these boards provide seamless power delivery to your CPU, paving the way for the performance enhancements that users desire.

Unlock Memory Overclocking

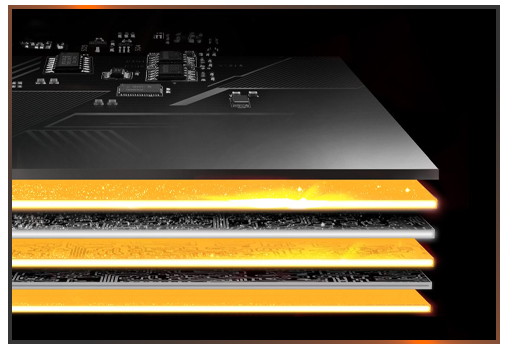

6-Layer PCB for Clear Memory Signals

6-Layer PCBPower flows through the 6-layer PCB which stabilises signal traces with precision. It reinforces thermal management and maintains signal integrity, providing a solid foundation for high-performance memory modules. With every current, DDR5 is pushed to its limits, driving speed and efficiency with fantastic reliability, no matter what.

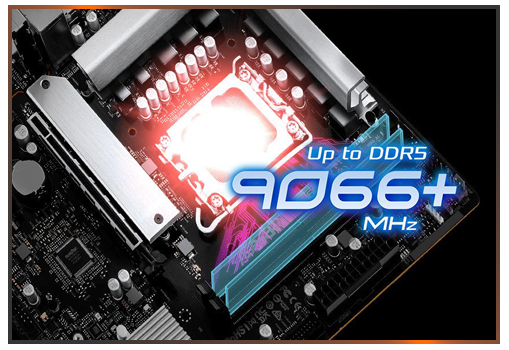

9066+ MHz Memory Transfer; Intel XMP Support

DDR5 XMP & EXPOASRock’s commitment to stability and reliability shines through every layer of its design. By enabling pre-tested profiles, users can push the limits of their system with confidence. For seamless overclocking, ensure that your memory modules are Intel® XMP or AMD EXPO™ compatible.

Pulsing With PCI

x1

PCIe Gen5x4 'Blazing M.2' 2280 Slot

x1

PCIe Gen4x4 'Hyper M.2' 2280 Slot

Express ExcellenceASRock's Blazing M.2 technology ignites your system with electrifying speed, harnessing the raw power of PCI Express 5.0 to deliver unparalleled data transfer rates. This lightning-fast performance obliterates loading times, ensuring every task is executed in an instant. Enhanced further by cutting-edge Gen4 capabilities, the synergy between speed and power creates a surge of performance that unlocks the full potential of high-capacity SSDs.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Extensive Cooling Options

Aluminium Heatsink

Aluminium Heatsink The chiseled aluminium heatsink efficiently pulls heat from key components, its dense, cold metal construction ensuring reliable cooling under intense gaming or heavy productivity tasks.

PWM/DC Fan Support

PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

1. CPU Fan Connector (Total: 2)
2. AIO Pump Connector (Total: 1)
3. Chassis Fan Connector (Total: 2)

Thermistor Header

Thermistor Header The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customised thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI.

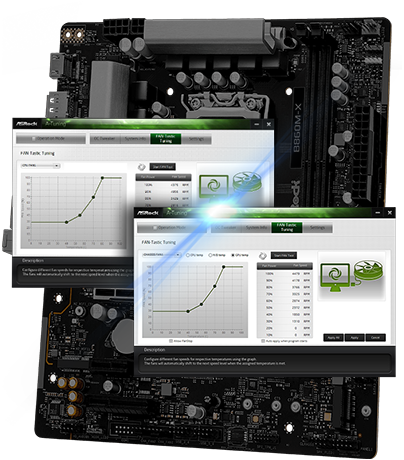

Fan Tastic Tuning

Fan-Tastic TuningThe Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the UI, meeting the system's cooling performance and noise requirements.

Nahimic Audio

Nahimic Audio

Audio Matters Nahimic Audio delivers an immersive listening experience that is vibrant and rich in detail, regardless of whether you're using headphones, a headset, external or internal speakers.

Clear Communication Powerful algorithms deliver clear, noise-free conversations with consistent vocal levels, enhancing sound quality and reducing interference for better clarity and less fatigue.

Sound Tracker The Sound Tracker visually indicates the direction of prominent sounds, displaying them in a 360° radar for complete immersion during gameplay.

Accelerating Performance

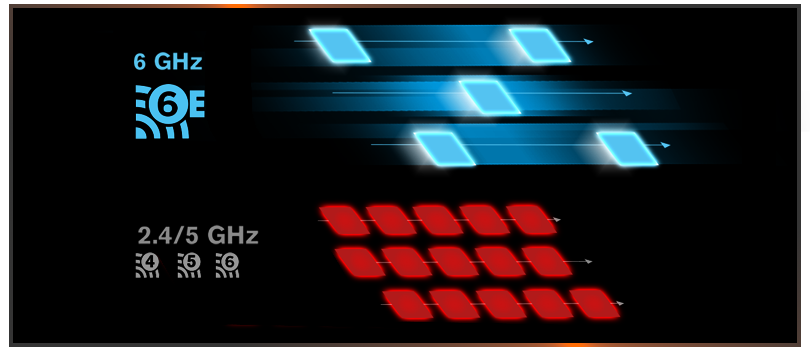

Wi-Fi 6E

Speedy 6EWi-Fi 6E extends the capabilities of Wi-Fi 6 by adding the 6 GHz band, offering more available channels for more reliable connections. It uses features like MU-MIMO and OFDMA to manage multiple devices efficiently, ensuring high-speed data for each. With wider channels, it reduces congestion, improves range, and supports high-demand applications, such as streaming and large file transfers.

Dragon 2.5GbE

Dragon 2.5G LAN Dragon 2.5Gb LAN delivers lightning-fast, reliable network speeds for smooth online gaming and seamless streaming. Its enhanced technology ensures minimal latency, providing a stable connection even during heavy data traffic.

USB 3.2 Gen2x2

20Gbs USB 3.2 Gen2x2 USB-c This board is mounted with a 20Gb/s USB 3.2 Gen2x2 USB-C, offering a lightning-fast data rate. Ideal for gaming peripherals, 4K video editing rigs, and high-speed external storage solutions, this weapon of speed is guaranteed to take your setup to a new level.

Fully Equipped I/O

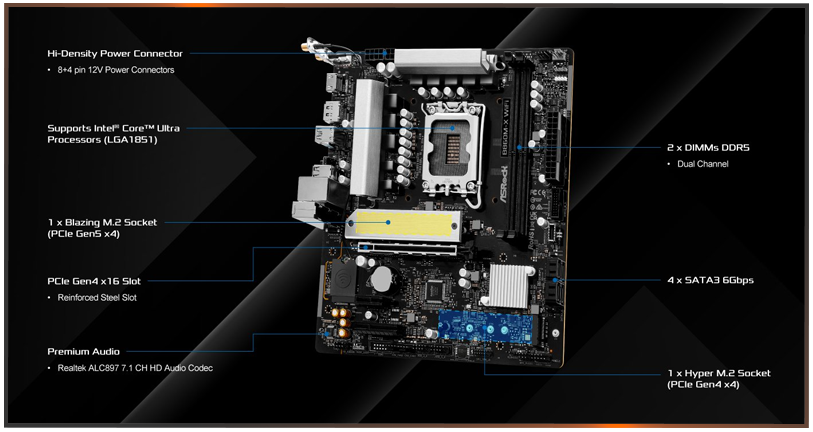

Performance Features

Even More Options In addition to everything mentioned, this board is loaded with fourf SATA ports, two addressable LED headers for Polychrome Sync, one general RGB header and a Realtek ALC1220 7.1 CH HD Audio Codec. The addition of these features ensure that no matter your setup, ASRock have the basics covered.

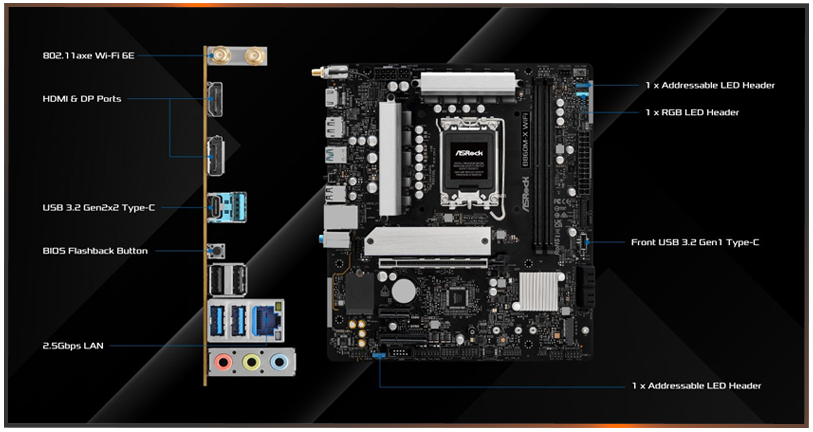

Connectivity Features

All the Essentials The ASRock B860M-X comes with HDMI, DisplayPort, a BIOS Flashback button, 2.5Gbps LAN, two addressable LED headers, RGB support, and a USB 3.2 Gen2x2 Type-C, giving you plenty of connectivity and customisation options in a compact package.

Specifications
Core Specifications
Edition B860M-X WiFi
Form Factor MicroATX
CPU Socket 1851
Chipset Intel B860
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 218 mm
Note
Additional Information
Scan Code LN155306
Model Number 90-MXBRY-A0UAYZ
GTIN 4711581490413
