ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
New
ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
Scan code: LN155307 Manufacturer code: 90-MXBS0-A0UAYZ
£104.99Item overdue since 26 January 2025
Pre order
  • Thumbnail 1 : ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
  • Thumbnail 2 : ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
  • Thumbnail 3 : ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
  • Thumbnail 4 : ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard
New

ASRock B860M-H2 DDR5 PCIe 4.0 Micro-ATX Motherboard

ASRock B860M-H2, Intel B860, LGA1851, DDR5, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen2x2, mATX

Scan code: LN155307 Manufacturer code: 90-MXBS0-A0UAYZ
£104.99
£5.48 NEXT DAY DELIVERY
Item overdue since 26 January 2025
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £8.75 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £8.75
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £104.99
    Total inc. interest: £104.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

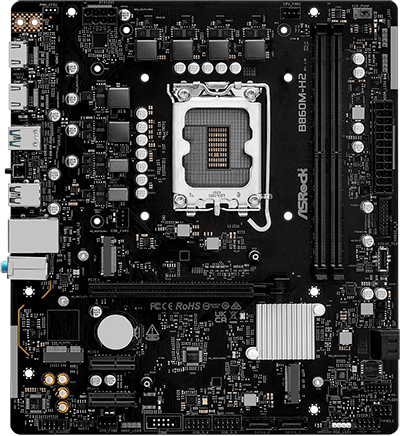

ASRock B860M-H2

Built to deliver reliable performance with versatile features, perfect for daily tasks.

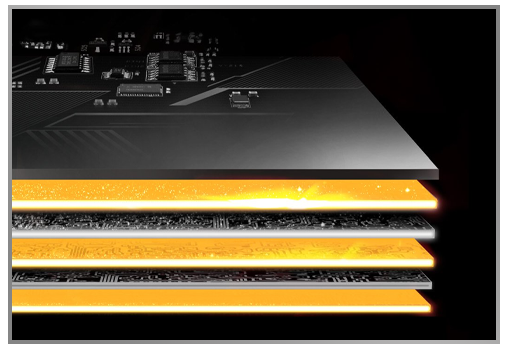

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperatures and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!


PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.


Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


USB 3.2 Gen2x2 20Gbps Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.


Front USB 3.2 Gen1 Type-C

A Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.


Dual HDMI Outputs

Equipped with two HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.


Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow your motherboard to be connected to compatible LED devices such as a strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.


Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.


BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.


Features

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).

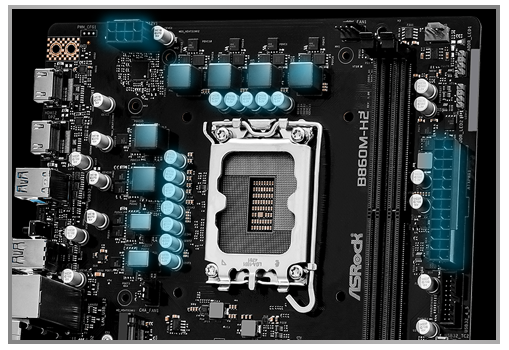

• 5+1+1+1+1 Power Phase.
• 2 x DDR5 DIMMs.
• Supports Dual Channel, up to 8333+ (OC).
• 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi.
• Graphics Output Options: 2 HDMI.
• Realtek ALC897 7.1 CH HD Audio Codec.
• 4 SATA3.
• 1 Blazing M.2 (PCIe Gen5x4).
• 1 Hyper M.2 (PCIe Gen4x4).
• 1 USB 3.2 Gen2x2 Type-C (Rear).
• 1 USB 3.2 Gen1 Type-C (Front).
• 5 USB 3.2 Gen1 (3 Rear, 2 Front).
• 6 USB 2.0 (2 Rear, 4 Front).
• Realtek Gigabit LAN.
• Supports BIOS Flashback.

Specifications
Core Specifications
Edition B860M-H2
Form Factor MicroATX
CPU Socket 1851
Chipset Intel B860
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Front Speaker Out
  • 2 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 211 mm
Note
Additional Information
Scan Code LN155307
Model Number 90-MXBS0-A0UAYZ
GTIN 4711581490437
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.
