Scan code: LN132082 Manufacturer code: 90-MXBL70-A0UAYZ

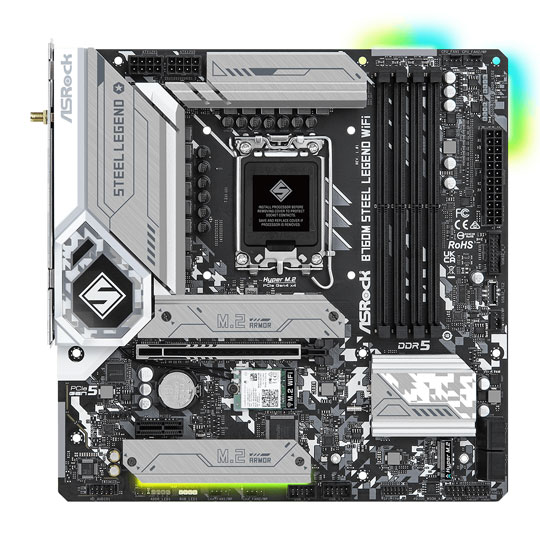

ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Motherboard

ASRock B760M STEEL LEGEND WIFI, Intel B760, LGA1700, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, mATX

Thumbnail 1 : ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Motherboard Thumbnail 2 : ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Motherboard Thumbnail 3 : ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Motherboard Thumbnail 4 : ASRock Intel B760M STEEL LEGEND WIFI Micro-ATX Motherboard
Scan code: LN132082 Manufacturer code: 90-MXBL70-A0UAYZ
Order in the next 2 hrs 37 mins and get it tomorrow
£159.98
Get it Tomorrow, 23 AprIn stock
From £14.50 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £14.50
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £173.91
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Apr to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

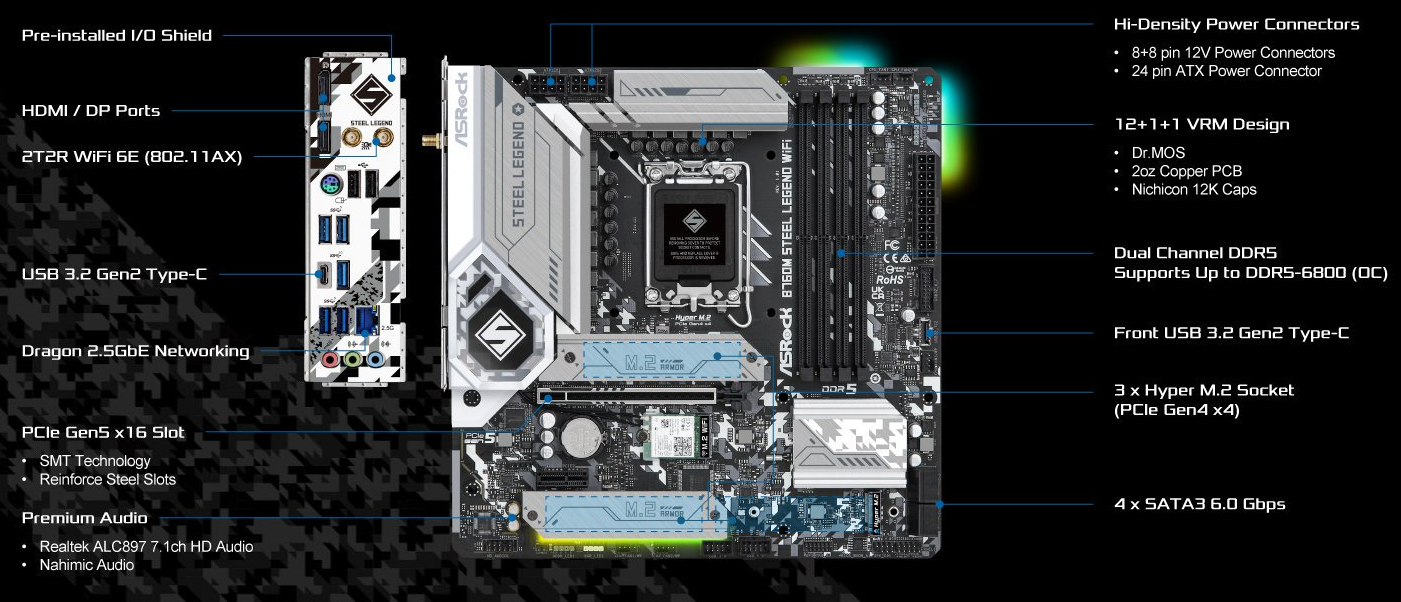

Product Overview

12+1+1 Power Phase Design + Dr.MOS

Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.


DDR5 Memory Technology

A trouble free protection circuit design on every DDR5 motherboard, lowers the risk of damaging your memory module.


PCIe Gen5 Technology PCIe x16 Slot

Ready to unleash the full potential of future high end graphics cards.


Dragon 2.5Gbps LAN

Enjoy the faster connectivity experience for gaming, file transfers and backups.


Onboard eDP Connector

Opens up endless customization possibility with the ability of connecting a display panel via an onboard eDP connector.


WiFi 6E (802.11AX)

Better and faster internet traffic with lower latency!

Features


• Supports 13th Gen & 12th Gen IntelR CoreTM Processors (LGA1700).
• 12+1+1 Power Phase, Dr.MOS for VCore+GT.
• Supports DDR5 6800MHz (OC).
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x1.
• Graphics Output Options: HDMI, DisplayPort, eDP.
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4).
• 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front).
• Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth.
• Supports ASRock Auto Driver Installer.

Specifications
Core Specifications
Edition STEEL LEGEND WIFI
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6800(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • eDP
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 3 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x eDP
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules

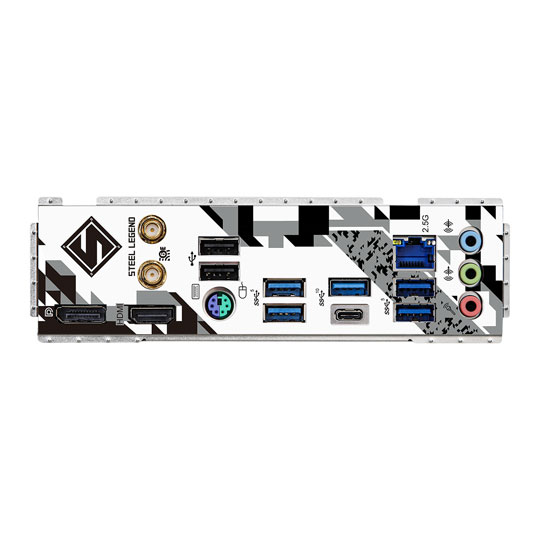

Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN132082
Model Number 90-MXBL70-A0UAYZ
GTIN 4710483941795
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
