ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
Offer
ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
Scan code: LN132080 Manufacturer code: 90-MXBL80-A0UAYZ
£122.59
Add To Basket
Get it Tomorrow, 10 SepIn stock
  • Thumbnail 1 : ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
  • Thumbnail 2 : ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
  • Thumbnail 3 : ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
  • Thumbnail 4 : ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard
Offer

ASRock Intel B760 PRO RS_D4 DDR4 ATX Motherboard

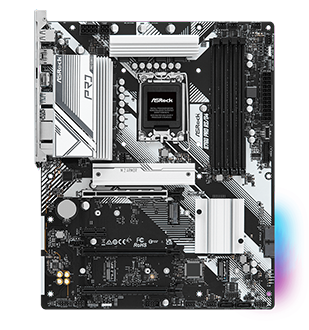

ASRock B760 PRO RS_D4, Intel B760, LGA1700, DDR4, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, ATX
MORE INFO
MORE INFO

Scan code: LN132080 Manufacturer code: 90-MXBL80-A0UAYZ
£122.59
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow, Tue 10th Sep
Add To Basket
Get it Tomorrow, 10 SepIn stock
  • By DPD On 10th Sep Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.11 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £11.11
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £122.59
    Total inc. interest: £133.27
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

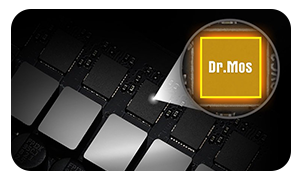

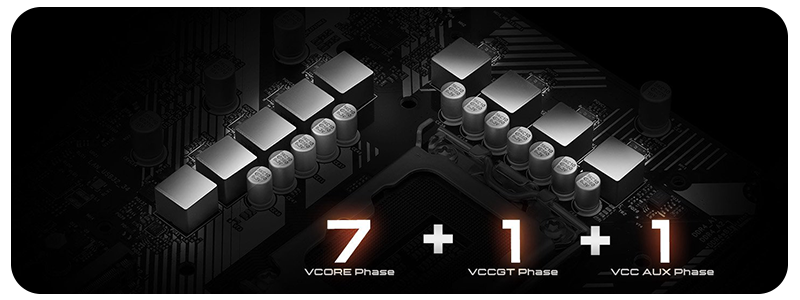

7 + 1 + 1 Power Phase Design + DR.MOS

Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.

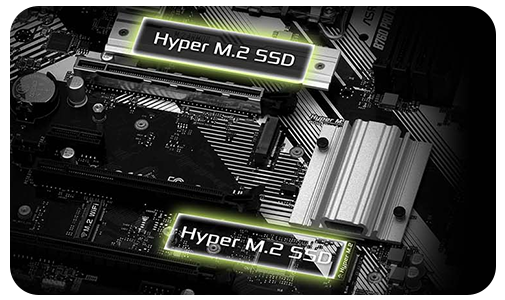

Hyper M.2

Lightning fast data transferring experience.


USB 3.2 Type-C (front + rear)

Providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.


Auto Driver Installer

The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically.


Nahimic Audio

Optimized to who is looking for an outstanding sound experience in high definition.

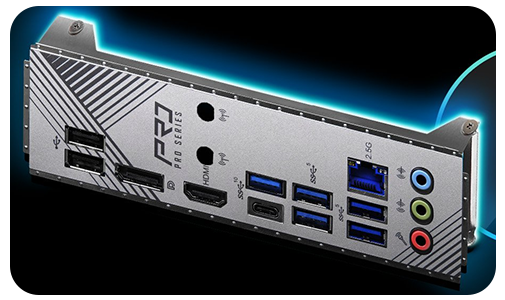

Pre-Installed I/O Shield

ASRock pre-installs the I/O shield for you as an assembly helper to speed up the set-up process.


Dragon 2.5Gbps LAN

Enjoy the faster connectivity experience for gaming, le transfers and backups.


Features


• Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700).
• 7+1+1 Power Phase, Dr.MOS for VCore+GT.
• Supports DDR4 5333MHz (OC).
• 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi.
• Graphics Output Options: HDMI, DisplayPort.
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
• 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2).
• 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen1 Type-C (Rear), 7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front).
• Dragon 2.5G LAN.
• Supports ASRock Auto Driver Installer.

Specifications
Core Specifications
Edition PRO RS_D4
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-60/80, PCIe
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)

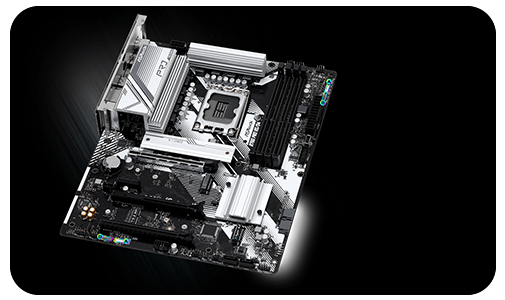

  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x RGB LED connector
  • 5 x System Fan/Water Pump Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 5 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN132080
Model Number 90-MXBL80-A0UAYZ
GTIN 4710483942075
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
