ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard
ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard
Scan code: LN138434 Manufacturer code: B650D4U-2L2T/BCM
£559.99
Add To Basket
Get it Tomorrow, 14 DecIn stock
  • Thumbnail 1 : ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard
  • Thumbnail 2 : ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard
  • Thumbnail 3 : ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard

ASRock AMD B650D4U-2L2T/BCM MicroATX Motherboard

ASRock B650D4U-2L2T/BCM, AMD B650, S AM5, DDR5, SATA3, PCIe 5.0, 1x M.2, 10GbE, USB 3.2 Gen1, mATX
MORE INFO
MORE INFO

Scan code: LN138434 Manufacturer code: B650D4U-2L2T/BCM
£559.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Add To Basket
Get it Tomorrow, 14 DecIn stock
  • By DPD On 16th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £15.56 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £46.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £559.99
    Total inc. interest: £559.99
    Monthly Payment: £23.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £559.99
    Total inc. interest: £559.99
    Monthly Payment: £15.56
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £559.99
    Total inc. interest: £559.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £14.88 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

B650D4U-2L2T/BCM

Supports the AMD Ryzen 7000 Series processor and DDR5 DIMM slots featuring PCI-E 5.0 slots. With dual 10G LAN, dual GbE LAN, and a remote management LAN for server capabilities. Ideal for general purpose servers.

Features

• Micro-ATX (9.6"x 9.6").
• Support AMD Ryzen 7000 series Processors.
• 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM.
• 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1.
• Supports 1 M.2 (PCIe5.0 x4).
• 2 RJ45 (10GbE) by Broadcom BCM57416.
• 2 RJ45 (1GbE) by Intel® i210.
• 4 SATA 6Gb/s.
• 1 HDMI, 1 DisplayPort.
• Remote management (IPMI).

Specifications
Core Specifications
Edition B650D4U-2L2T/BCM
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 5200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x4
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x Buzzer
  • 1 x IPMB Connector/Header
  • 1 x PMBUS Header
  • 1 x SMBus header
  • 1 x speaker header
  • 7 x System Fan header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 1 x VGA connector
External Connectivity
Network Interface Type
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I210 (Gigabit LAN)

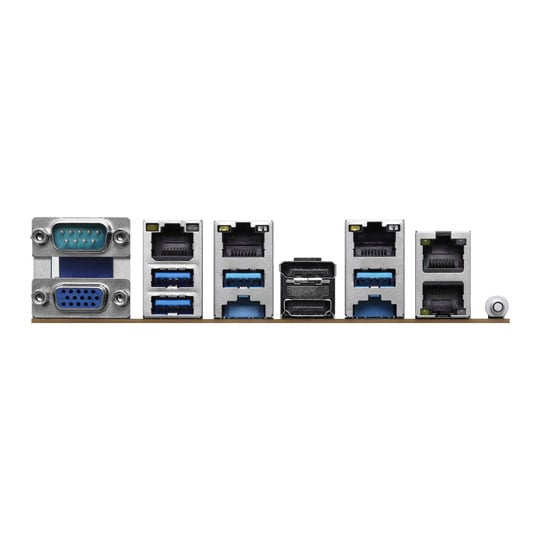

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort
  • 1 x HDMI
  • 3 x RJ-45
  • 1 x RJ45 Dedicated IPMI port
  • 1 x Serial (COM)
  • 1 x UID Button/UID LED
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243 x 243 mm
Note
Additional Information
Scan Code LN138434
Model Number B650D4U-2L2T/BCM
GTIN 4710483941696
