Scan code: LN138433 Manufacturer code: B650D4U

ASRock AMD B650D4U Micro-ATX Motherboard

ASRock B650D4U, AMD B650, S AM5, DDR5, SATA3, PCIe 5.0, 2x M.2, GbE, USB 3.2 Gen1, Micro-ATX

MORE INFO
MORE INFO
Thumbnail 1 : ASRock AMD B650D4U Micro-ATX Motherboard Thumbnail 2 : ASRock AMD B650D4U Micro-ATX Motherboard
Scan code: LN138433 Manufacturer code: B650D4U
£399.98Item currently awaiting an ETA
Pre Order
Pre order
From £16.67 / month (APR 0%) or 0% for 4 months
Monthly Payment: £33.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £399.98
Total inc. interest: £399.98
Monthly Payment: £16.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £399.98
Total inc. interest: £399.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.63 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

• Micro-ATX (9.6"x 9.6").
• Support AMD Ryzen 7000 series Processors.
• 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM.
• 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1.
• Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4).
• 2 RJ45 (1GbE) by Intel® i210.
• 4 SATA 6Gb/s.
• 1 HDMI, 1 DisplayPort.
• Remote management (IPMI).

Features

• Micro-ATX (9.6"x 9.6").
• Support AMD Ryzen 7000 series Processors.
• 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM.
• 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1.
• Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4).
• 2 RJ45 (1GbE) by Intel® i210.
• 4 SATA 6Gb/s.
• 1 HDMI, 1 DisplayPort.
• Remote management (IPMI).

Specifications
Core Specifications
Edition B650D4U
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 5200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 5.0 x16
  • 1 x PCIe x4
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x Buzzer
  • 1 x Clear CMOS Header
  • 7 x Fan Header
  • 1 x IPMB Connector/Header
  • 1 x PMBus Connector
  • 1 x SMBus header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM Header
  • 1 x VGA connector
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules

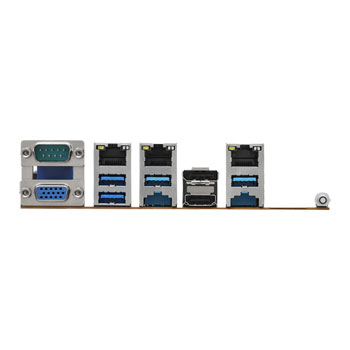

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x RJ-45
  • 1 x Serial (COM)
  • 1 x UID Button/UID LED
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN138433
Model Number B650D4U
GTIN 4710483942402
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
