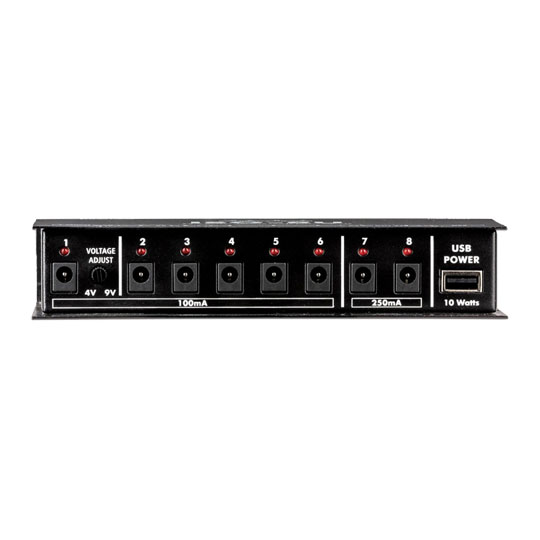

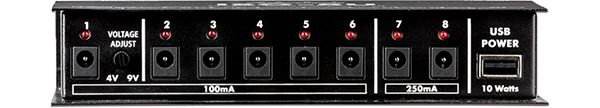

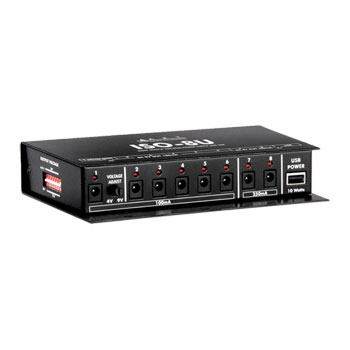

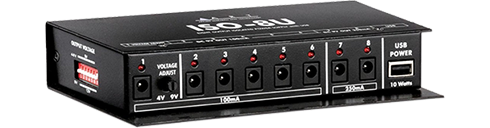

ART - 'ISO-8U' Power Supply

art iso-8u

Power & Performance You Can Rely onThe Art ISO-8U Power Supply is a high-quality power supply for guitar pedals with selectable 9v - 12v capability. With eight individually isolated outputs, the ISO-8U enables you to power your pedals without the frustration of coming across ground looping problems that result in unpleasant feedback and hum. The ISO-8U featuring a unique variable voltage meter on output 1, allowing you to create sagging effects with your pedals to emulate the sound you get when your pedal is running on a dying battery. This provides you with a unique sound that makes your pedals to clip sooner as a result of less headroom.

Sagging also gives your distortion pedals more of a fuzz tone and compresses your signal to give you some extra crunch when you desire. Built to handle most pedals, each output provides up to 100mA with two high-powered outputs delivering 250mA for the higher-powered pedals. To save your rig from harm or damage, each output is protected by current limiting with an LED indicator to display any faults.

At A Glance • Provides consistent and clean power to your equipment
• USB power jack for high speed charging
• Comes supplied adapter cables
• Switchable voltage per output
• Eight isolated outputs

Completely Isolated Outputs

art iso-8u

A Silencer For Your PedalsMost modern digital pedals require an isolated power source, each output on the Art ISO-8U is designed to be isolated from one another, resulting in a power supply that delivers clear, clean, noise free operation for each pedal.

An extra layer of completely analogue regulation takes advantage of the analogue circuits to provide a suppression of in-band audio noise, removing any slight elements of noise to create the cleanest power supply possible. .

Unique Sagging Feature

art iso-8u

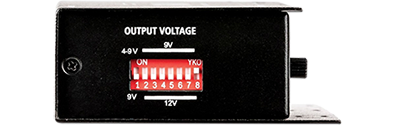

Innovative TechnologyFeaturing a unique feature the Art ISO-8U has the ability to set the voltage of output 1 from 9v - 4v, allowing you to replicate the sound of a battery losing power, giving you a sagging effect and less headroom to quickly break up your tone.

This results in additional fuzz-like distortion, similar to what you would get when pushing a pedal such as a guitar distortion pedal to the max where the signal gets even more distorted, the more you turn the voltage down.

The Tech Spec

Features Specification
Input Connections 12v/2.5A Universal
Output Connections 2.1mm x 5.1mm barrel connection, negative tip
Max output current Out 1-6: 100mA
Out 7, 8: 250mA
Cables provided 6 x 24 inch 5.1mm - 5.1 mm
2 x 24 inch right angle 5.1 mm - 5.1 mm
1 x Battery clip - 5.1 mm
1 x Polarity reverse 5.1 mm - 5.1 mm
1 x Y split 5.1 mm cable
1 x 3.5mm - 5.1mm
USB output 10 Watts Maximum
External power required 100-240V AC / 50-60Hz
Dimensions (W x H x D) 34mm x 177 mm x 84 mm
Weight 0.59kg
Product code ART-ISO-8UE4
