Antelope - 'Pure 2' Mastering AD/DA Converter & Clock
Antelope - 'Pure 2' Mastering-Grade AD/DA, Stereo Converter & Master Clock with Dual DAC Architecture, Software Control
Mastering AD/DA Converter & Clock
Antelope - 'Pure 2'
Analog Warmth With Digital ClarityThe Antelope Pure 2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock. It features a relay-controlled volume attenuator as well as Antelope Audio’s Acoustically Focused Clocking (AFC) technology which is critically acclaimed across the world. It also includes pristine analog circuitry, brought to life by a proprietary multi-stage linear power supply for incredible digital clarity and analog warmth, resulting in an astonishing and sonically rich sound.
Amazing Features
• Master clock with 4th generation of Antelope's AFC jitter management
• Relay-Based analog volume control for precise monitoring
• High-End headphone amp with a dedicated D/A converter
• A/D converter with optimized overloads handling
• D/A converter with dual DAC architecture
Intuitive Set Up

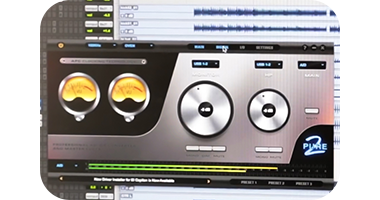

Flexible ControlAll the features of the Pur 2 are available in an easy to use software control panel for Mac or Windows, giving users the ability to manage all aspects of the device operation. Pure 2 can also be controlled useing the front panel with user-definable presets.
Easy LifeIn just a few minutes you can have the Pure 2 up and running. All you need is the included single USB cable and a laptop of your choice with Win 7.1 or higher / Mac OSx 10.9 or higher and you can begin capturing stereo audio at 192 kHz.
Legendary Clocking & Pristine Analog Circuitry
A/D CONVERSIONEnhanced overload handling for smoother clipping and analog warmth, handled by PCM4222
D/A CONVERSIONDual DAC architecture for enhanced stereo imaging and signal-to-noise ratio
64-BIT MASTER CLOCKING4th gen AFC jitter management technology for sharp conversion timing
HIGH-END D/ADedicated D/A converter for more convenience, allows monitoring a secondary source
TRANSPARENT ANALOG MONITORINGA -1dB stepped relay attenuator with 0.05dB precision and full bypass option
SOFTWARE CONTROLEasy to use OS X & Windows compatible software panel

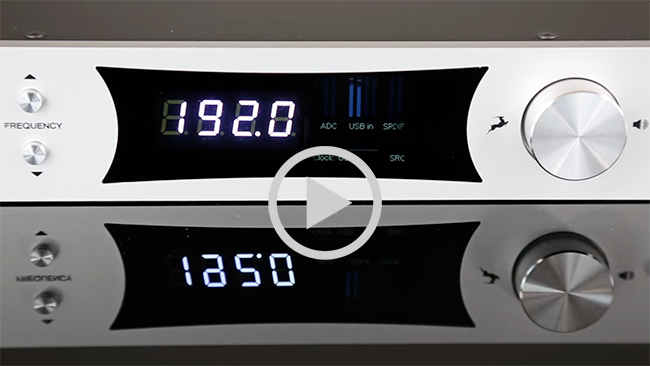

Pure2 Stereo AD/DA - Studio and Live Applications
The Tech Spec
| Features | Specification | Analog Inputs | 2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu |
|---|---|
| Digital Inputs | 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x TOSLINK on optical fiber: up to 96kHz |
| Word Clock Input | 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz |
| Analog Outputs | 1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu 1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS) 1 x 1/4 TRS Front Headphones 20dBu |
| Digital Outputs | 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x TOSLINK on optical fiber: up to 96kHz |
| Word Clock Outputs | 8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz |
| USB I/O | USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz, 4 channels I/O playback/record, Type B) |
| External Reference Clock | 1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz |
| A/D Converter | Dynamic Range: 122dB THD+N: -105dB |
| D/A Converters | Main DAC Dynamic Range 127dB; THD+N -107dB Monitor DAC Dynamic Range 120dB; THD+N -103dB Headphones DAC Dynamic Range 120dB; THD+N -100dB |
| Clock Specifications | <+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F |
| Clock Aging | < 1 ppm per year |
| Clock Calibration | < +/-0.001 ppm |
| Atomic Clock Input | 10MHz @ 1Vpp, BNC |
| Sample Rates (kHz) | 32, 44.1, 48, 88.2, 96, 176.4, 192 |
| Operating Temperature | 0-50°C, 32-122°F |
| Weight | 3 kg/6.6 lb approx. |
| Dimensions (Approx) | 483mm(W) x 44mm(H) x 220mm (D) 19”(W) x 1.75”(H) x 8.66”(D) |
| Atomic Clock Input | 1 x 10M Input @ 75 Ohms 1Vpp on BNC |
| Fuses | 2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay) |
