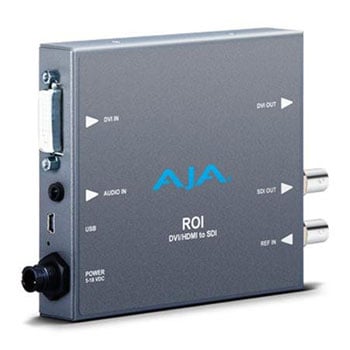

AJA ROI Region Of Interest Scaling DVI/HDMI to SDI Mini Converter

Product Overview AJA's ROI Mini-Converter allows exceptionally high quality conversion of computer DVI and HDMI outputs to baseband video over SDI at an affordable price and a very portable size. With incredible image scaling, extensive aspect ratio and frame rate conversion, and audio functionality ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

Region of Interest
The free MiniConfig application lets you interactively select a Region of Interest from the incoming DVI or HDMI signal and control how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible. Eliminate extra interface clutter and menu bars and extract only the portion of the image you want.

Conversion
Take full control of aspect ratio and frame rate conversion with on-screen controls in the MiniConfig software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.

Connectivity
ROI utilizes a DVI loop through, allowing it to be placed in-line so you still have a connection to an external DVI or HDMI monitor while extracting to SDI. The reference input ensures the SDI signal out of ROI is locked for use throughout a production or facility.

Audio
ROI accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from an HDMI input. The audio source and routing can be selected in the MiniConfig software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.

USB and MiniConfig Support
AJA’s free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply
All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Features
• DVI to SDI conversion
• Region of Interest scaling
• DVI loop through
• Audio embedding
• Aspect ratio conversion
• Genlock input
• Configure via USB port and supplied MiniConfig software
• Uses 5-18VDC power (universal power supply included)
• 5-year warranty Features DVI Input
• DVI-D connector

Formats
Computer Signals:
• VGA (640x480) minimum
• WUXGA (1920x1200) 60 Hz max
Note: Frame rates limited by the 165Mhz max rate of the DVI Rx

Video Signals:
• 525i/625i
• 480p/576p (DSLR cameras)
• 720p 23.98/24/25/29.97/30/50/59.94/60
• 1080i 50/59.94
• 1080p 23.98/24/25/29.97/30/50/59.94/60

Input Data Range Control
• 1-255 (default – 8 bit nomenclature)
• 16-235

Reference Input
• Color Black
• Tri-Level sync

Video Outputs
• DVI-D loop through
• HD/SD-SDI, SMPTE-259/292/296, 1 x BNC

Audio Inputs
• Analog 3.5mm TRS, 2-channel
• HDMI embedded audio, 24-bit, 8-channel

Audio Output
• SDI embedded audio, 24-bit, 2-channel or 8-channel

HDCP
• ROI does not encode the HDMI output with HDCP encryption

User Controls
• USB port used with supplied cable and MiniConfig software application to configure device via Mac or Windows

Physical
• 5.765" x 4.020" x 0.9" (146.431mm x 102.108mm x 22.86mm)

Power
• 5-18VDC Regulated, 13 Watts, Power Supply Required (included with purchase)
